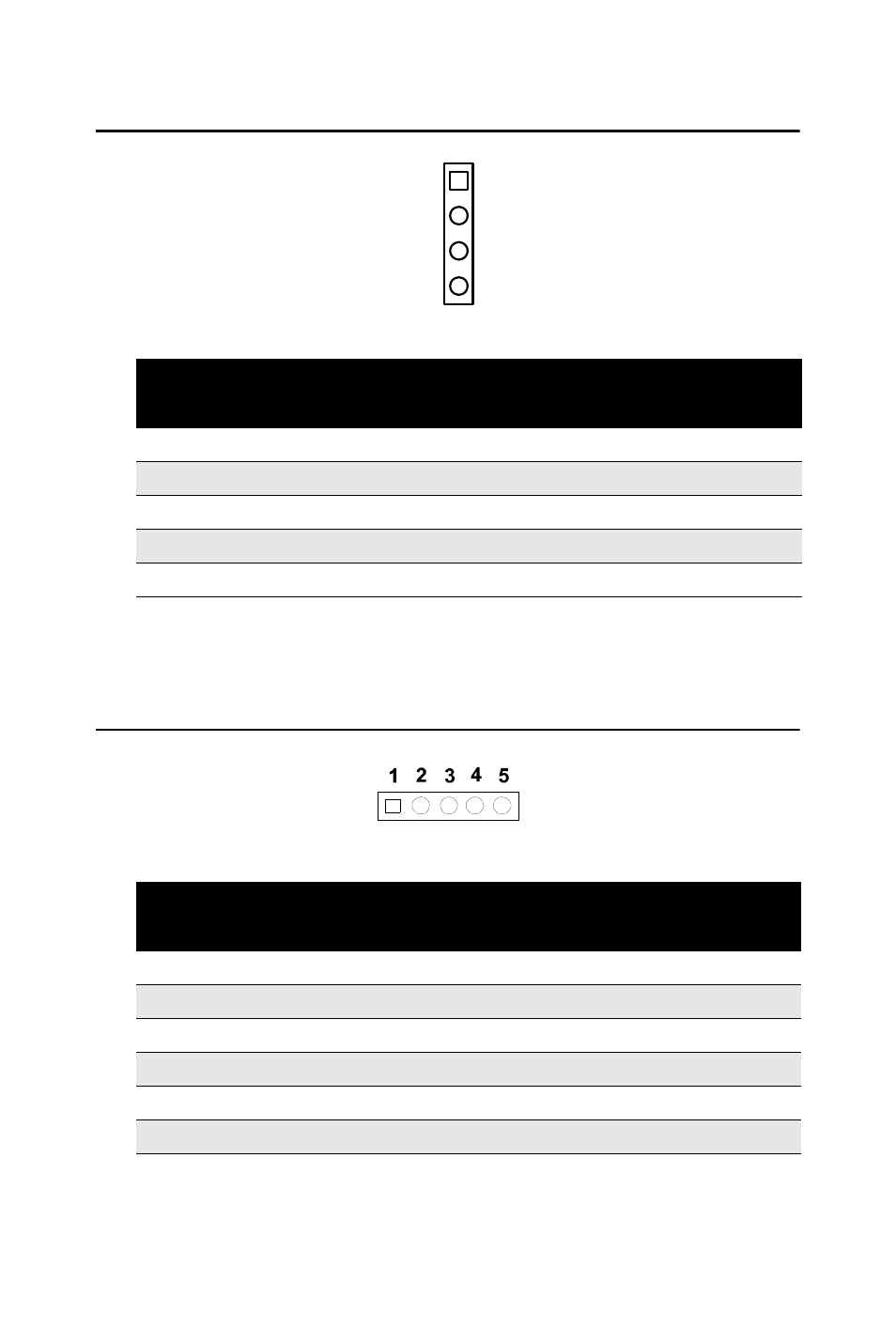

B.8 CPU Fan Power Connector (CPUFAN1)
B.9 Power LED and Keyboard Lock Connector (JFP3 /
PWR_LED & KEY LOCK)
Table B.8: CPU Fan Power Connector
(CPUFAN1)
Pin Signal
1 GND
2 +12V
3 Detect
4 FANPWM
Table B.9: Power LED and Keyboard Lock Connector (JFP3 /
PWR_LED & KEY LOCK)
Pin Signal
1 LED power (+5 V)
2 NC
3 GND
4 KEYLOCK#
5 GND
1
2
4
3
