Appendix B

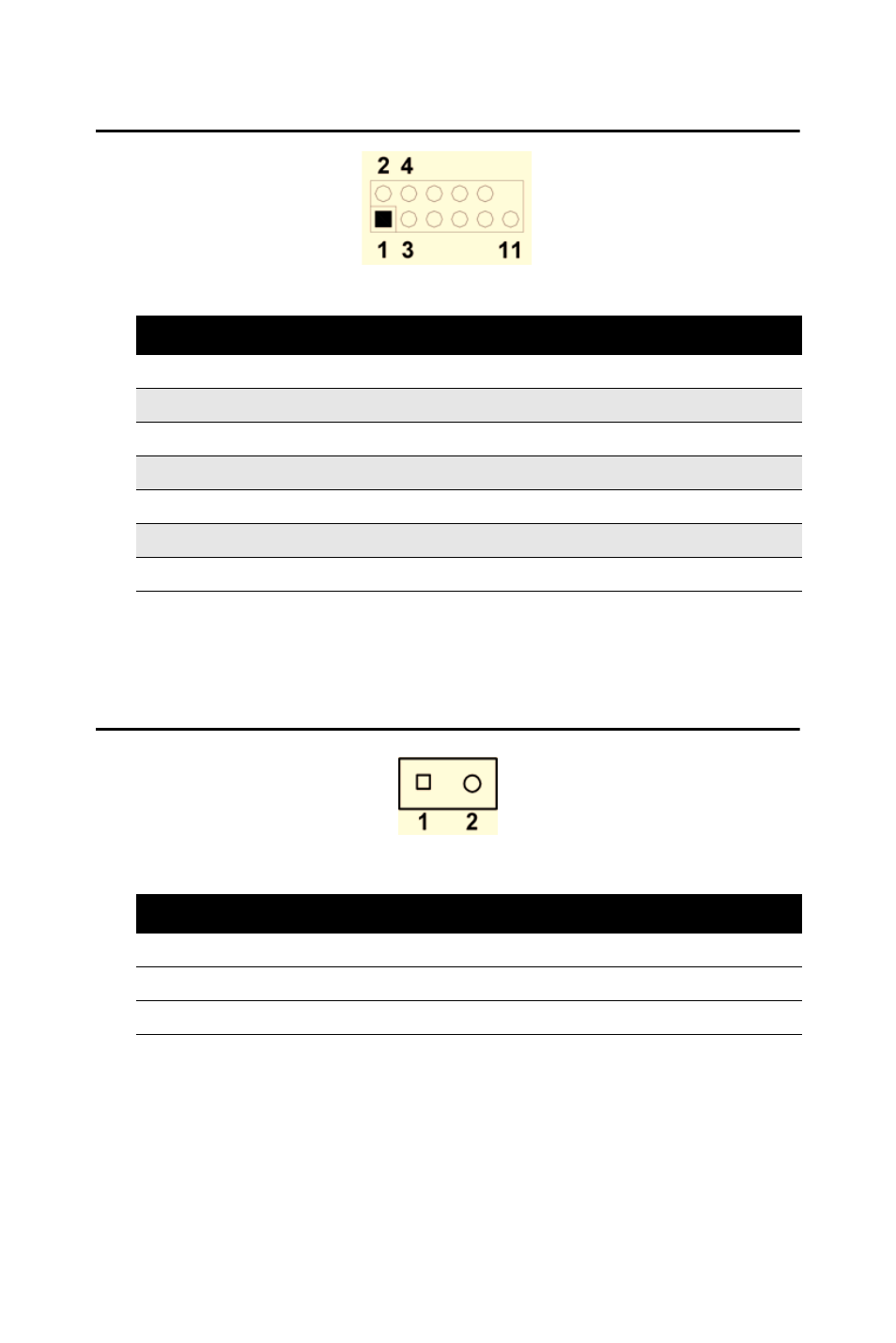

B.14 AC'97 Link connector (AC97)
B.15 SM Bus Connector (JFP2 / SNMP)
Table B.14:AC'97 Link connector (AC97)
Pin
Signal
Pin
Signal
1
VCC
2
GND
3 Sync
4 BITCLK
5
SDOUT
6
SDIN0
7 SDIN1
8 AC-RST
9
+12V
10
GND
11 GND
12 N/C
Table B.15:SM bus connector (JFP2 / SNMP)
Pin
Signal
1
SMB_DATA
2
SMB_CLK
