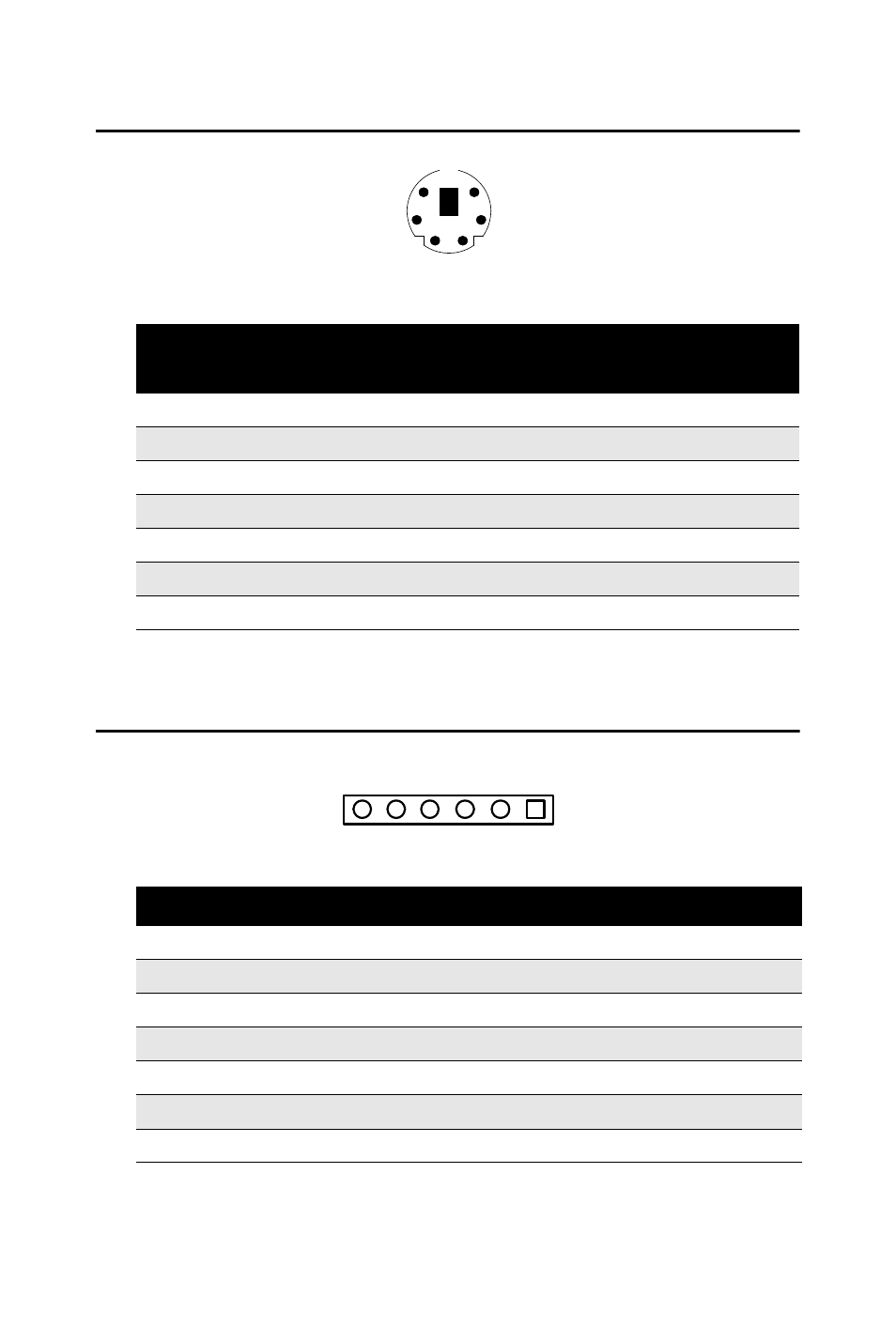

B.6 PS/2 Keyboard/Mouse Connector (KBMS1)
B.7 External Keyboard Connector (KBMS2)
Table B.6: PS/2 keyboard/mouse connector
(KBMS1)
Pin
Signal
1
KB DATA
2
MS DATA
3
GND
4
VCC
5
KB CLOCK
6
MS CLOCK
Table B.7: External keyboard connector (KBMS2)
Pin
Signal
1
KBCLK
2
KBDAT
3
MSDAT
4
GND
5
MSVCC
6
MSCLK
5
3
1
2
4
6
5
4
2
3
1
6
