PCE-5120 User Manual 26
2.12 Gigabit LAN RJ45 connector (LAN1, LAN2)
PCE-5120 uses the Intel 82573V Gigabit LAN chip which is linked to
PCIe x1 Link. With this chip PCE-5120 may provide high throughputs
for heavy loading networking environment. It provides two or one RJ-45
connectors in the rear side and is convenient for most industrial applica-
tions.
2.13 AC'97 Link connector (AC97)
The PCE-5120 provides AC'97 audio through PCA-AUDIO-00A1 mod-
ule from Advantech.

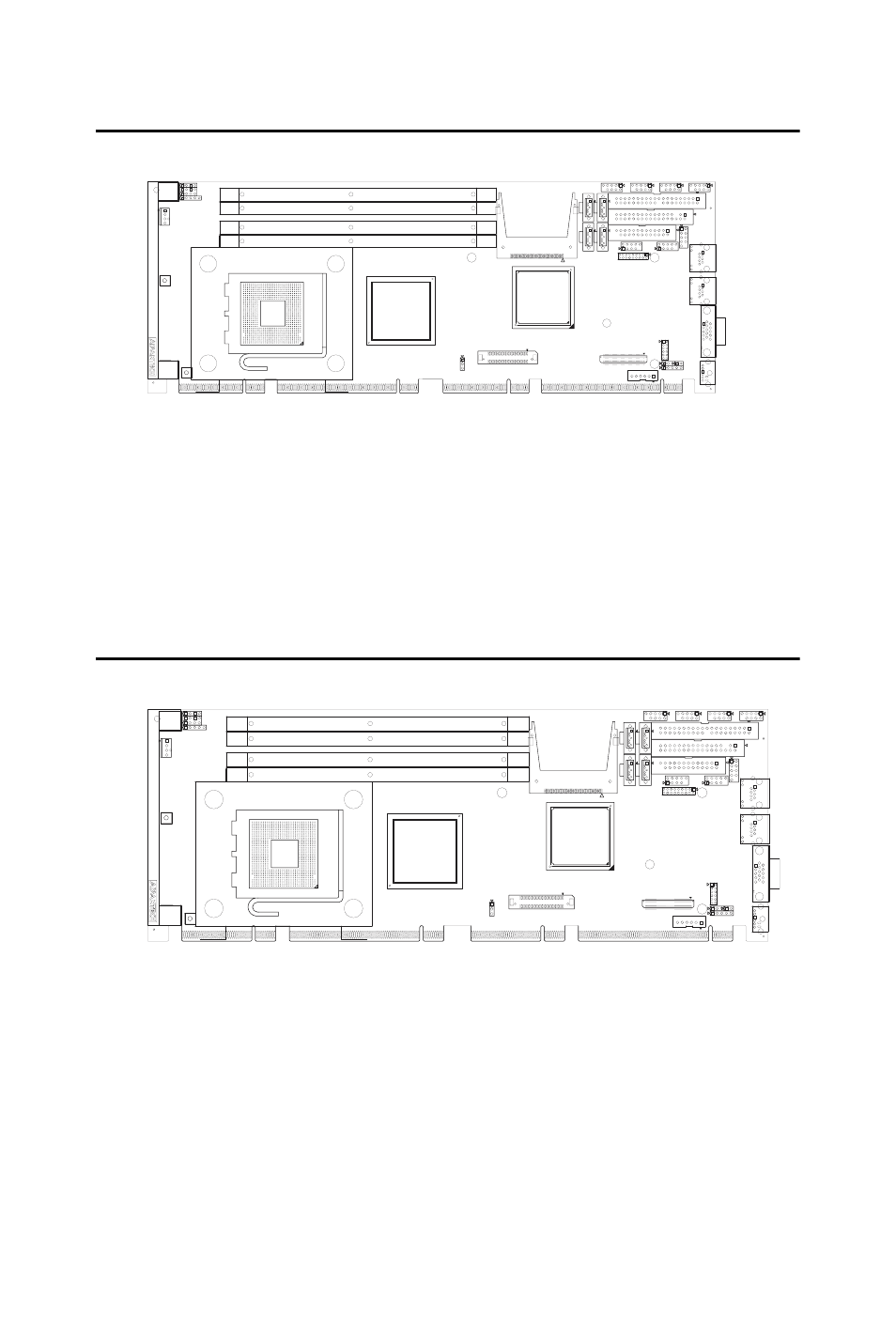

JFP3
