PCE-5120 User Manual

102

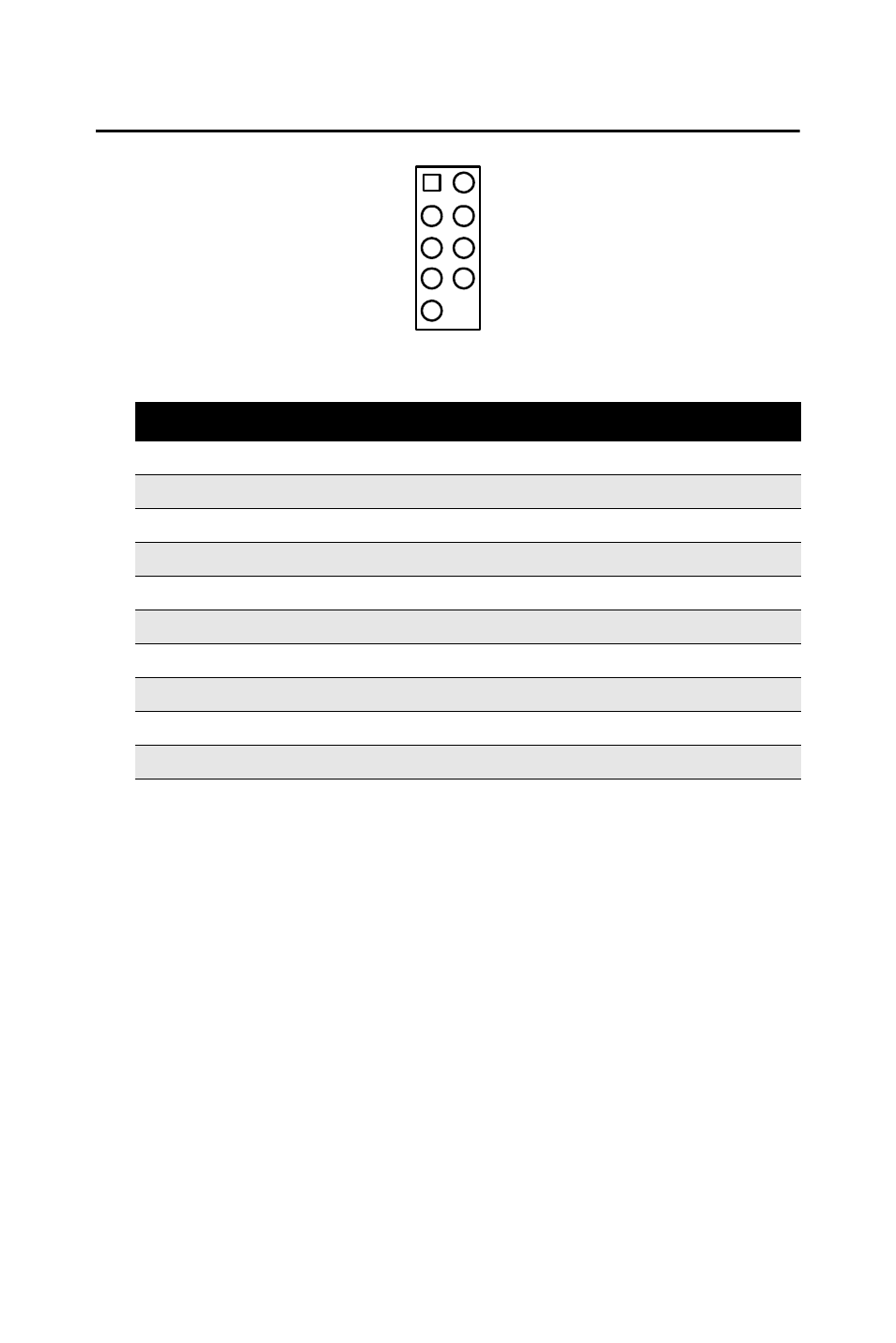

B.16 LAN1 and LAN2 LED connector (LANLED1)

Table B.16:LAN1 and LAN2 LED connector (LANLED1)

Pin

Signal

1

#LAN1_ACT

2

V33_AUX

3

#LAN1_LINK1000

4

#LAN1_LINK100

5

V33_AUX

6

#LAN2_ACT

7

V33_AUX

8

#LAN2_LINK1000

9

#LAN2_LINK100

4

5

3

6

1

2

8

7
9
