1 atx soft power switch (jfp1 / pwr_sw), 2 reset (jfp1 / reset), 3 hdd led (jfp2 / hddled) – Advantech PCE-5120 User Manual

Page 40: 4 sm bus connector (jfp2 / snmp), 5 external speaker (jfp2 / speaker), Pwr_led&key lock)

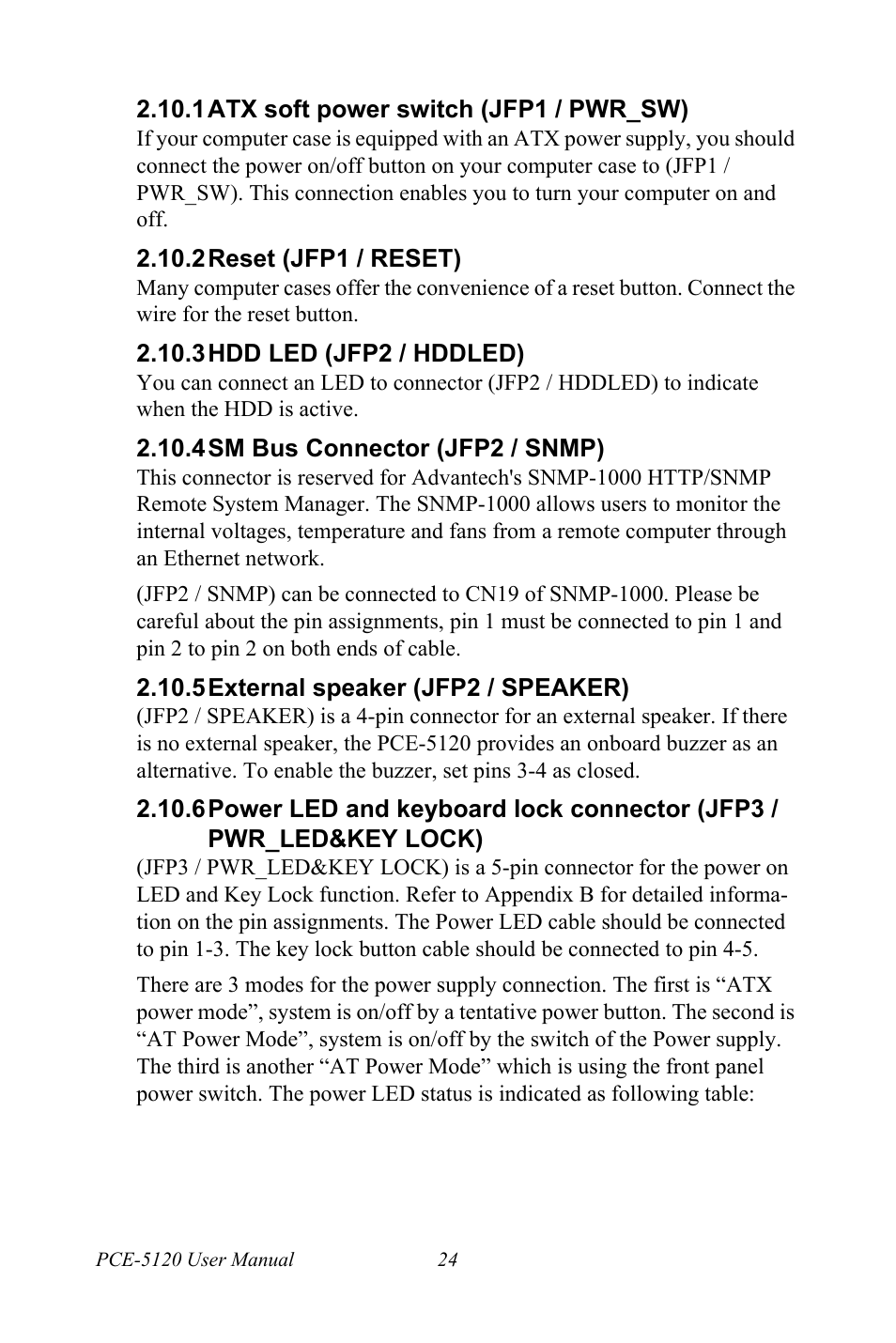

1 atx soft power switch (jfp1 / pwr_sw), 2 reset (jfp1 / reset), 3 hdd led (jfp2 / hddled) | 4 sm bus connector (jfp2 / snmp), 5 external speaker (jfp2 / speaker), Pwr_led&key lock) | Advantech PCE-5120 User Manual | Page 40 / 122 1 atx soft power switch (jfp1 / pwr_sw), 2 reset (jfp1 / reset), 3 hdd led (jfp2 / hddled) | 4 sm bus connector (jfp2 / snmp), 5 external speaker (jfp2 / speaker), Pwr_led&key lock) | Advantech PCE-5120 User Manual | Page 40 / 122
