3 watchdog timer output (jwdt1), Table 1.4: watchdog timer output (jwdt1), 4 com2 rs 232/422/485 mode selector (jsetcom2) – Advantech PCE-5120 User Manual

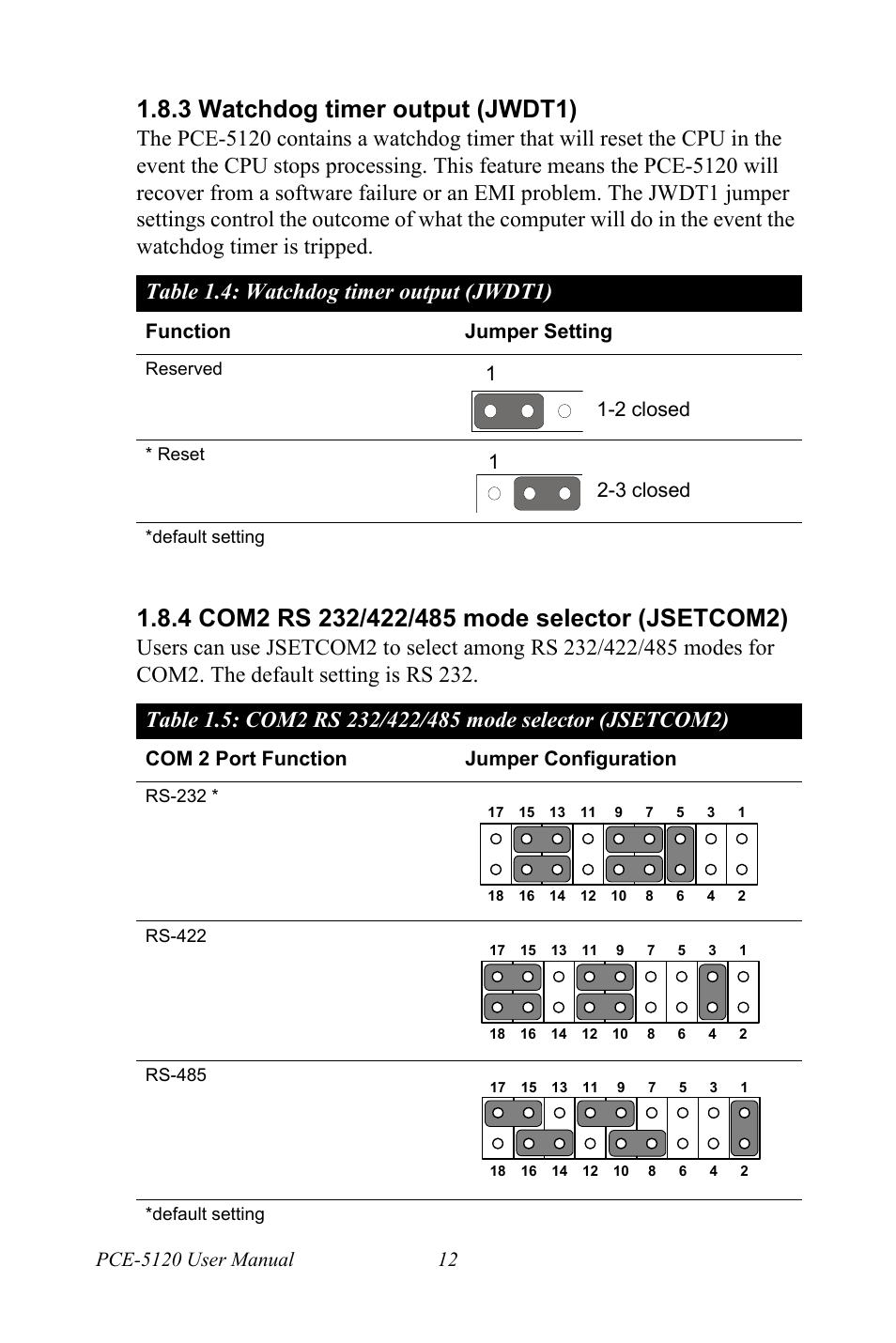

Page 28: Jsetcom2), Function jumper setting, Com 2 port function jumper configuration, 2 closed 1 2-3 closed

Text mode
Original mode

3 watchdog timer output (jwdt1), Table 1.4: watchdog timer output (jwdt1), 4 com2 rs 232/422/485 mode selector (jsetcom2) | Jsetcom2), Function jumper setting, Com 2 port function jumper configuration, 2 closed 1 2-3 closed | Advantech PCE-5120 User Manual | Page 28 / 122
