B.10 external speaker connector (jfp2 / speaker), B.11 reset connector (jfp1 / reset), Table b.11: reset connector (jfp1 / reset) – Advantech PCE-5120 User Manual

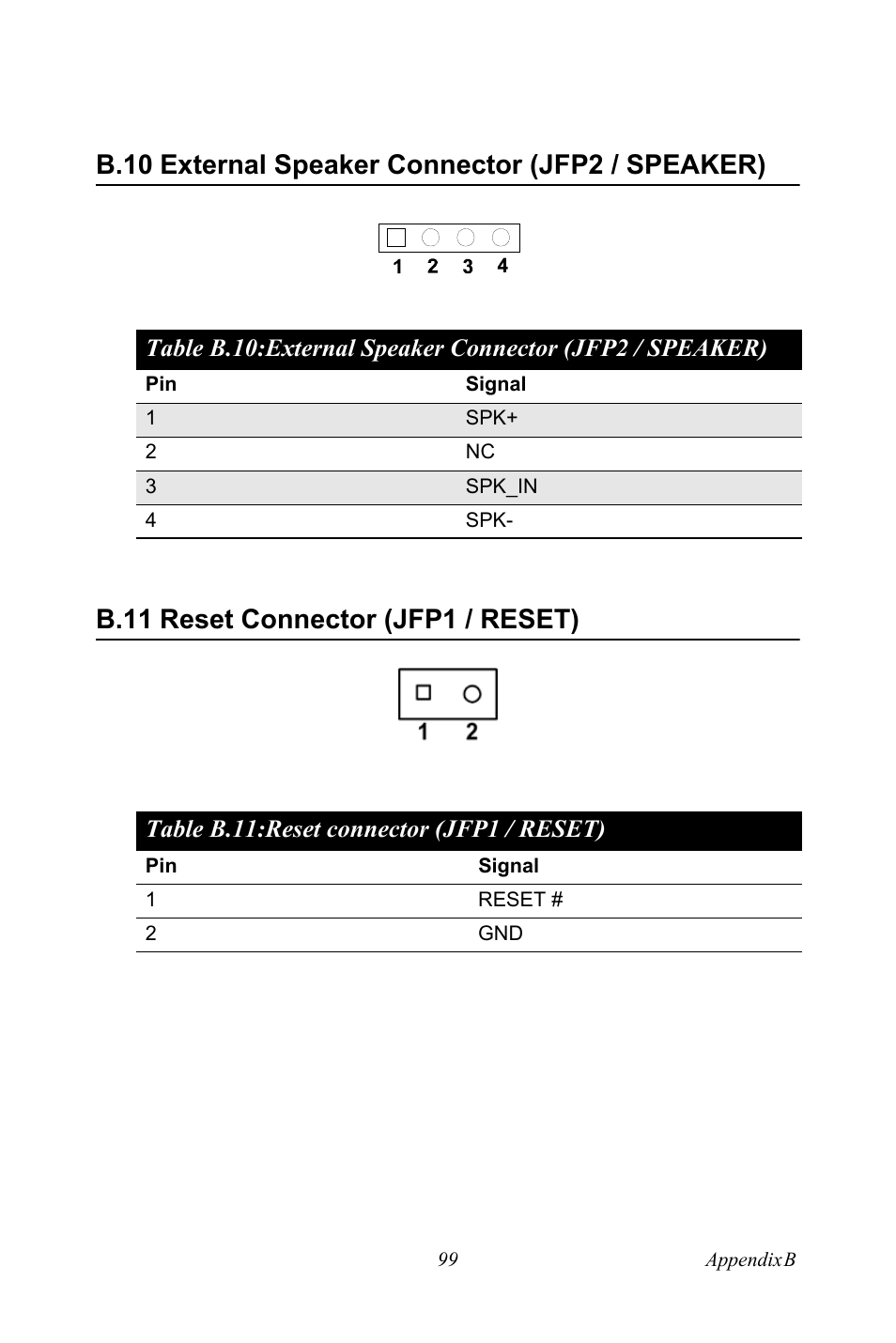

Page 115: B.10, External speaker connector (jfp2 / speaker), B.11, Reset connector (jfp1 / reset), Table b.11:reset connector (jfp1 / reset)

Text mode
Original mode

B.10 external speaker connector (jfp2 / speaker), B.11 reset connector (jfp1 / reset), Table b.11: reset connector (jfp1 / reset) | B.10, External speaker connector (jfp2 / speaker), B.11, Reset connector (jfp1 / reset), Table b.11:reset connector (jfp1 / reset) | Advantech PCE-5120 User Manual | Page 115 / 122
