Media hub installation procedure, Electrical connections – Datamax-O'Neil Performance series Media Hub User Manual
Page 5
2 | Media Hub Installation Instructions
Media Hub Installation Guide
4
Media Hub Installation Procedure
Electrical Connections

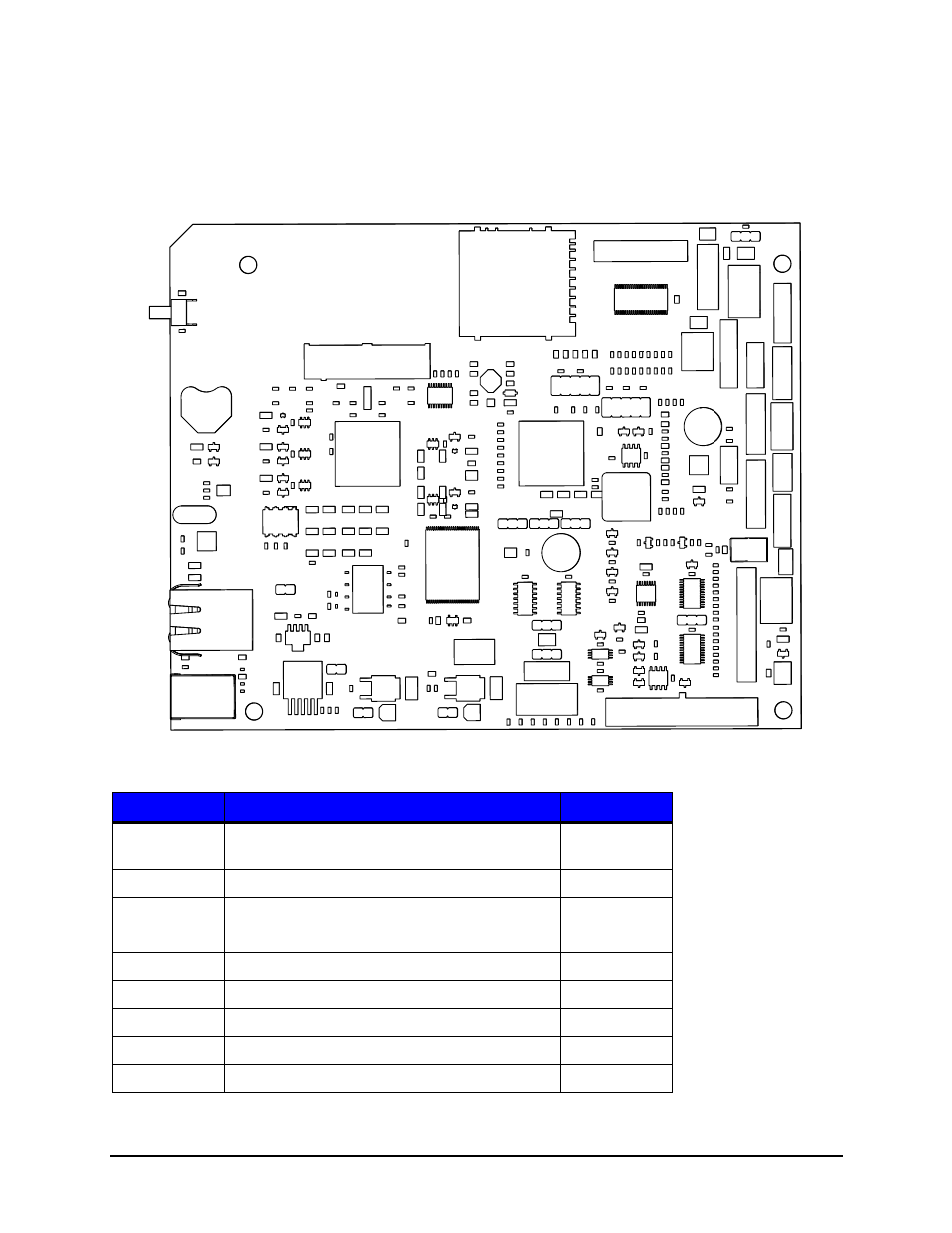

Figure: 2 - 1 Main PCB Assembly Connection Map
Table 1: Main PCB Assembly Connection Chart
Junction
Connection
Cable
J1
Wireless Module (Optional) or SD Memory
(Optional)
N/A
J2
Front Panel Display
105047
J3
USB Host (Optional)
105055
J4
Present Sensor
105337
J5
Unpopulated
N/A
J6
Media Width
105046
J7
Unpopulated
N/A
J8
Head Up Sensor
105056
J9
Unpopulated
N/A
J7
J1
J2
J3
J4
J5
J10
J8
J6
J9
J13
J12
J15
J16
J17
J19
J20
J18
J23
J26
J25
J14
J22
