Datamax-O'Neil Performance series Media Hub User Manual
Page 18
Media Hub Installation Instructions | 2
17
Media Hub Installation Guide
23. Loosen and remove all three (3) socket head screws securing the media hanger to
the printer chassis.

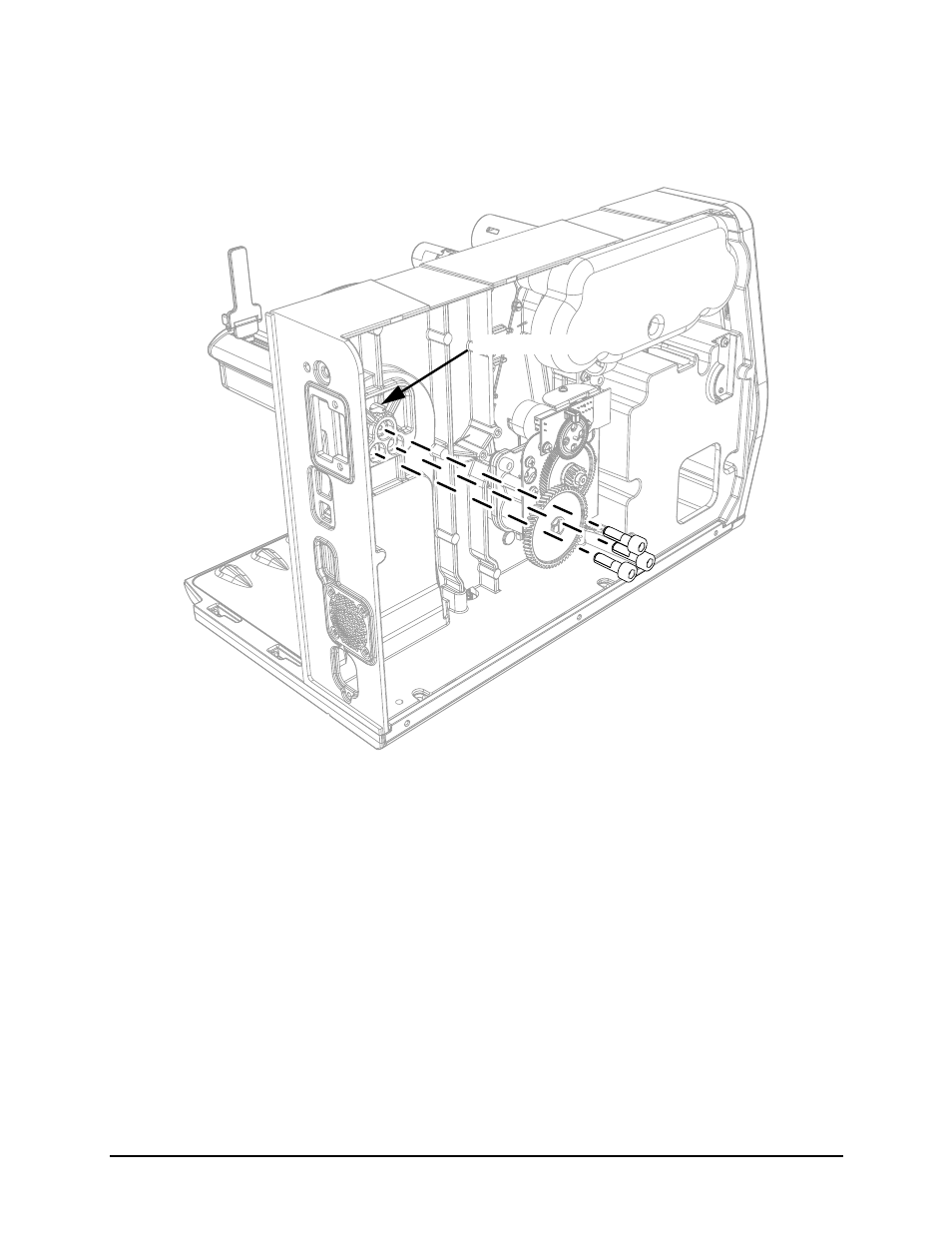

Figure: 2 - 20 Media Hanger Mounting Screws
Note:
Be certain to support the media hanger during this step.
24. Remove the media hanger and carefully route the paper low sensor cable through
the cable channel.
Cable Channel
