Datamax-O'Neil Performance series Media Hub User Manual
Page 20
Media Hub Installation Instructions | 2
19
Media Hub Installation Guide

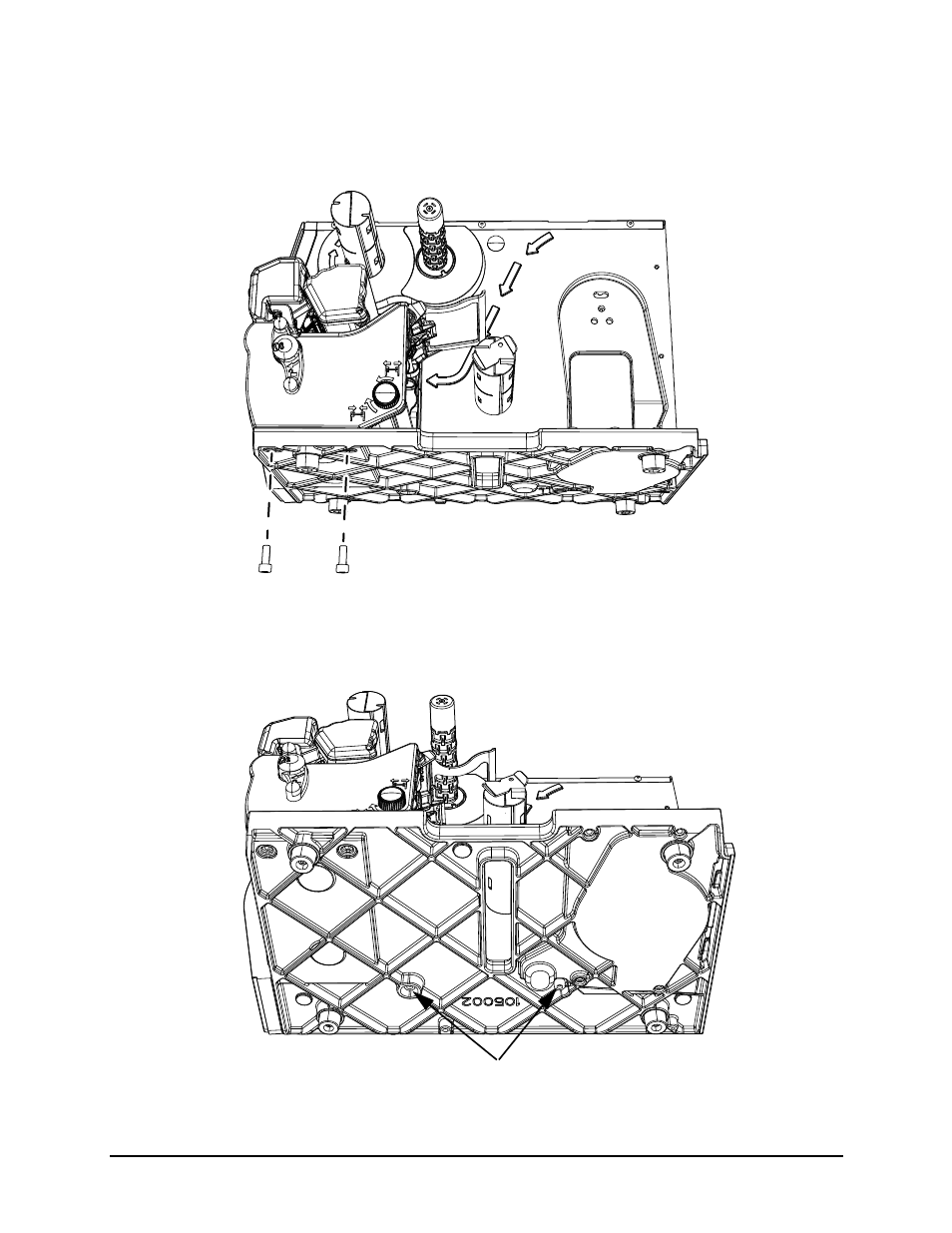

27. Loosen and remove both (2) socket head screws securing the print carriage
assembly to the base plate of the printer chassis.
Figure: 2 - 23 Print Carriage Mounting Bolts
28. Loosen the center plate mounting bolts so the center plate can be raised enough to
release the media plate from the printer chassis.
Figure: 2 - 24 Center Plate Mount
Center Plate Mounting Bolts
