Datamax-O'Neil Performance series Media Hub User Manual
Page 22
Media Hub Installation Instructions | 2
21
Media Hub Installation Guide
32. Install the four (4) socket head screws (included in the kit) to secure the media hub
assembly to the printer chassis.

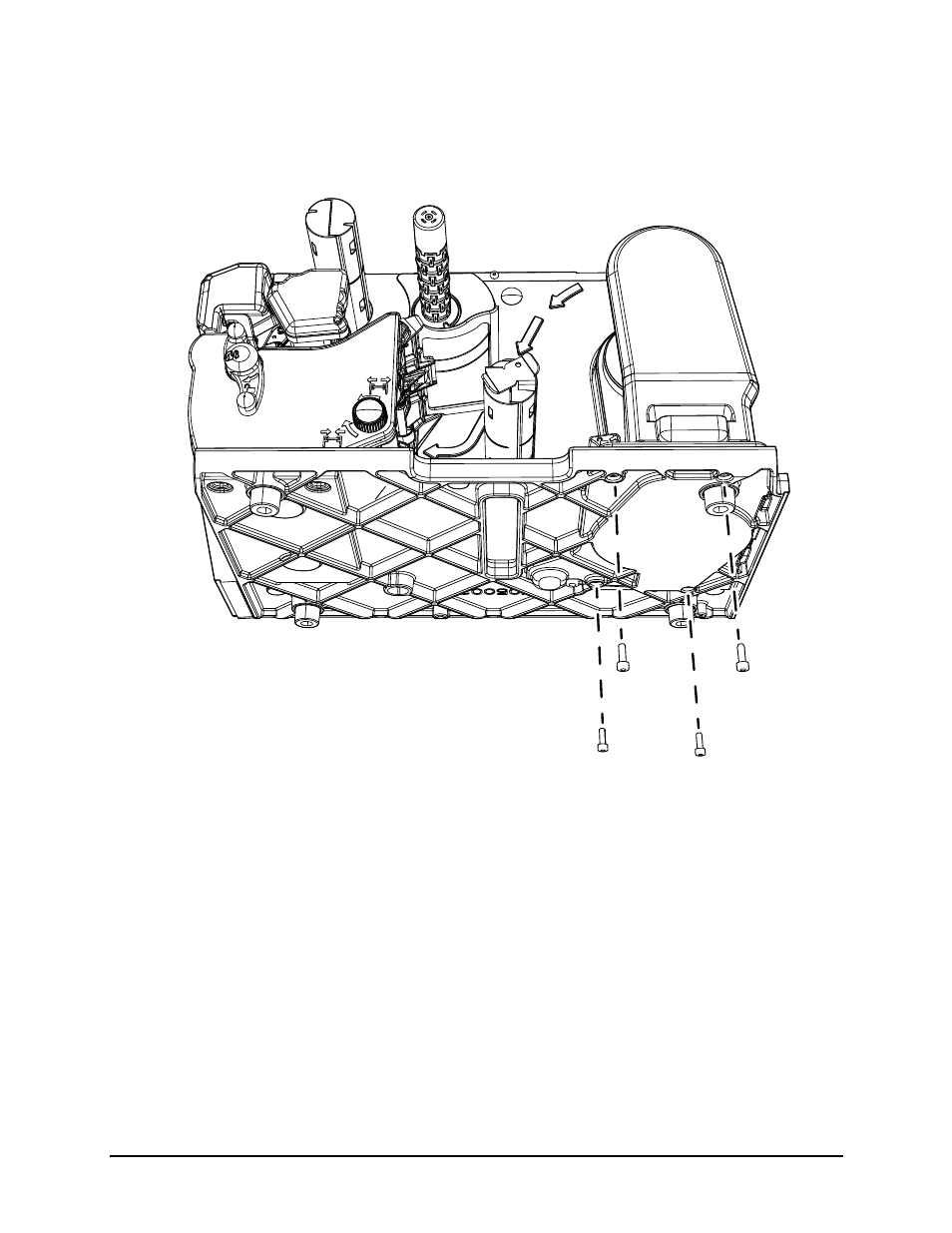

Figure: 2 - 26 Media Hub Assembly Mounting Screws
33. Reinstall the printer components in the reverse order as they were disassembled.
