Datamax-O'Neil Performance series Media Hub User Manual
Page 11
2 | Media Hub Installation Instructions
Media Hub Installation Guide
10

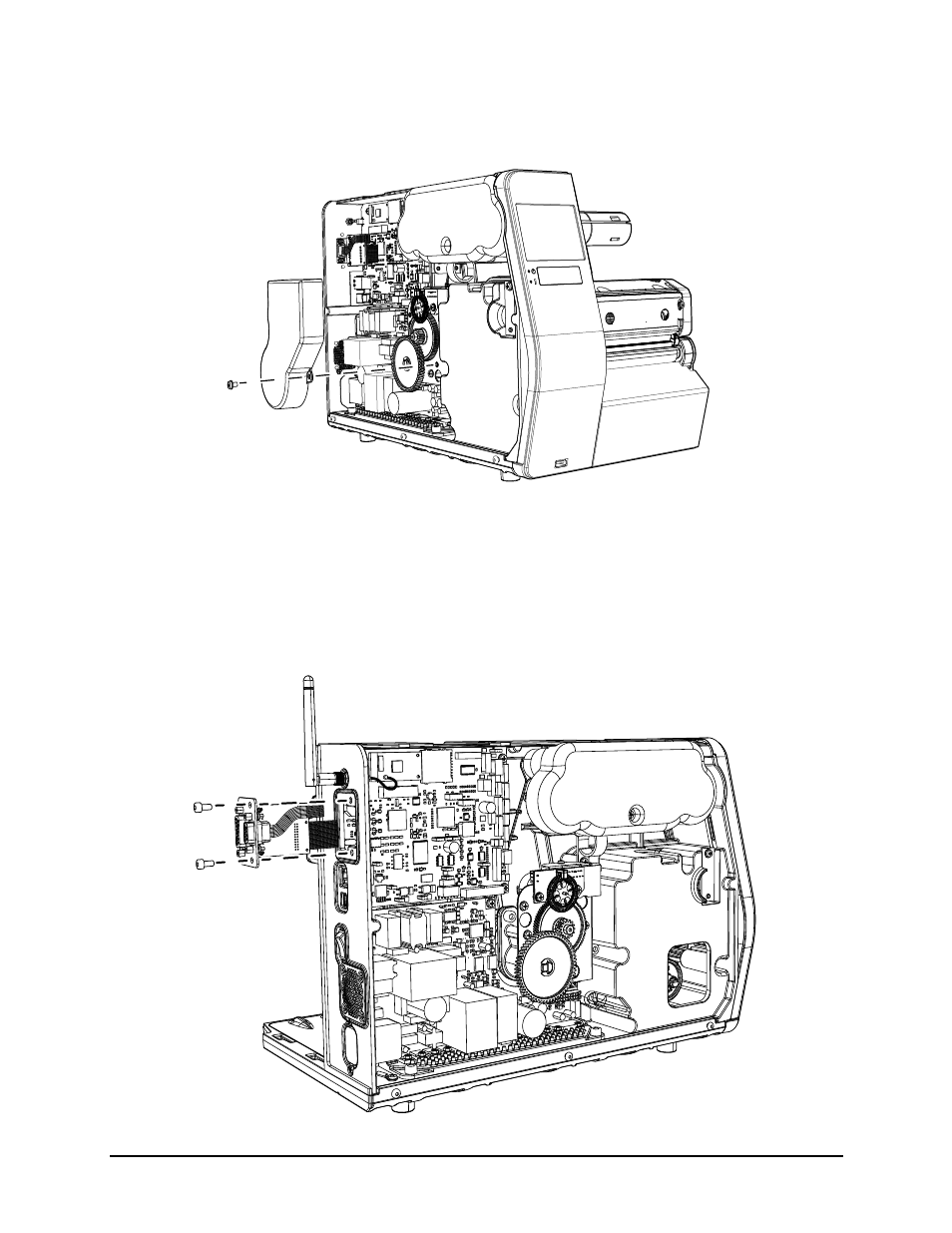

9. Loosen and remove the cover screw and cover from the rewinder assembly.
Figure: 2 - 10 Remove Rewinder Cover
10. If the printer has the GP I/O option, disconnect the serial and GPIO connector from
junction J25 on the main PCB assembly.
11. Loosen and remove both socket head screws securing the GP I/O & serial port sub-
assembly to the printer chassis and then gently route the assembly and cable out of
the chassis.
Figure: 2 - 11 GP I/O & Serial Port Assembly
