Datamax-O'Neil Performance series Media Hub User Manual
Page 13
2 | Media Hub Installation Instructions
Media Hub Installation Guide
12
14. Loosen and remove the nut and washer securing the antenna cable assembly to
the printer chassis.

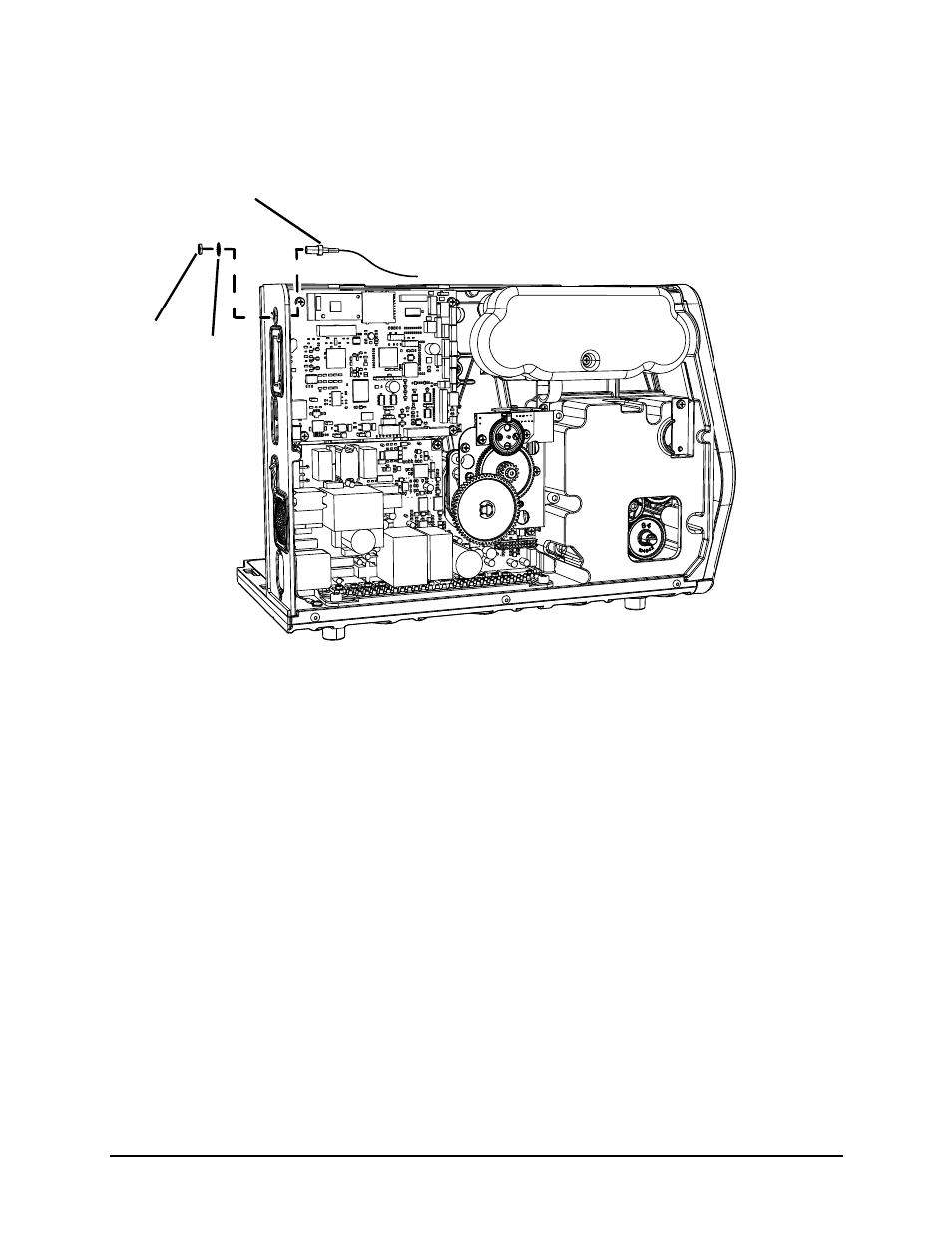

Figure: 2 - 14 Cable Assembly
15. Carefully disconnect all of the connectors from the main PCB assembly and the
power supply assembly.
Nut
Washer
Cable Assembly
