Datamax-O'Neil Performance series Media Hub User Manual
Page 16
Media Hub Installation Instructions | 2
15
Media Hub Installation Guide

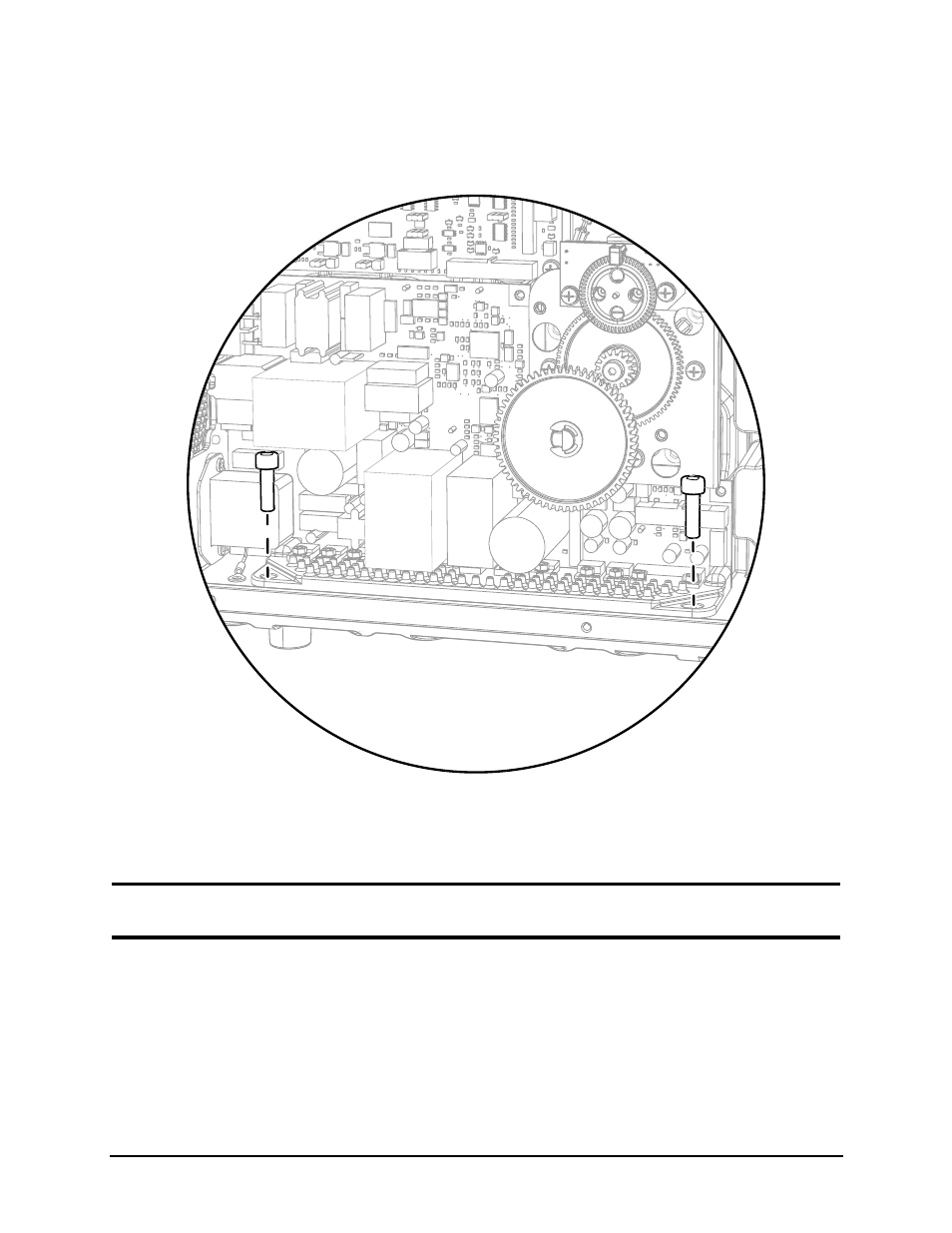

19. Loosen and remove both (2) socket head screws securing the power supply sub-
assembly heat-sink to the printer chassis.
Figure: 2 - 18 Power Supply Sub-Assembly Screws
20. Rotate the front (right side when viewing from the right side of the printer) of the
power supply sub-assembly out of the chassis and then gently pull it completely out
of the chassis.
Caution:
Exercise caution when maneuvering the sub-assembly out of the printer
chassis. The wiring can be susceptible to damage if not properly handled.
