Datamax-O'Neil Performance series Media Hub User Manual
Page 19
2 | Media Hub Installation Instructions
Media Hub Installation Guide
18

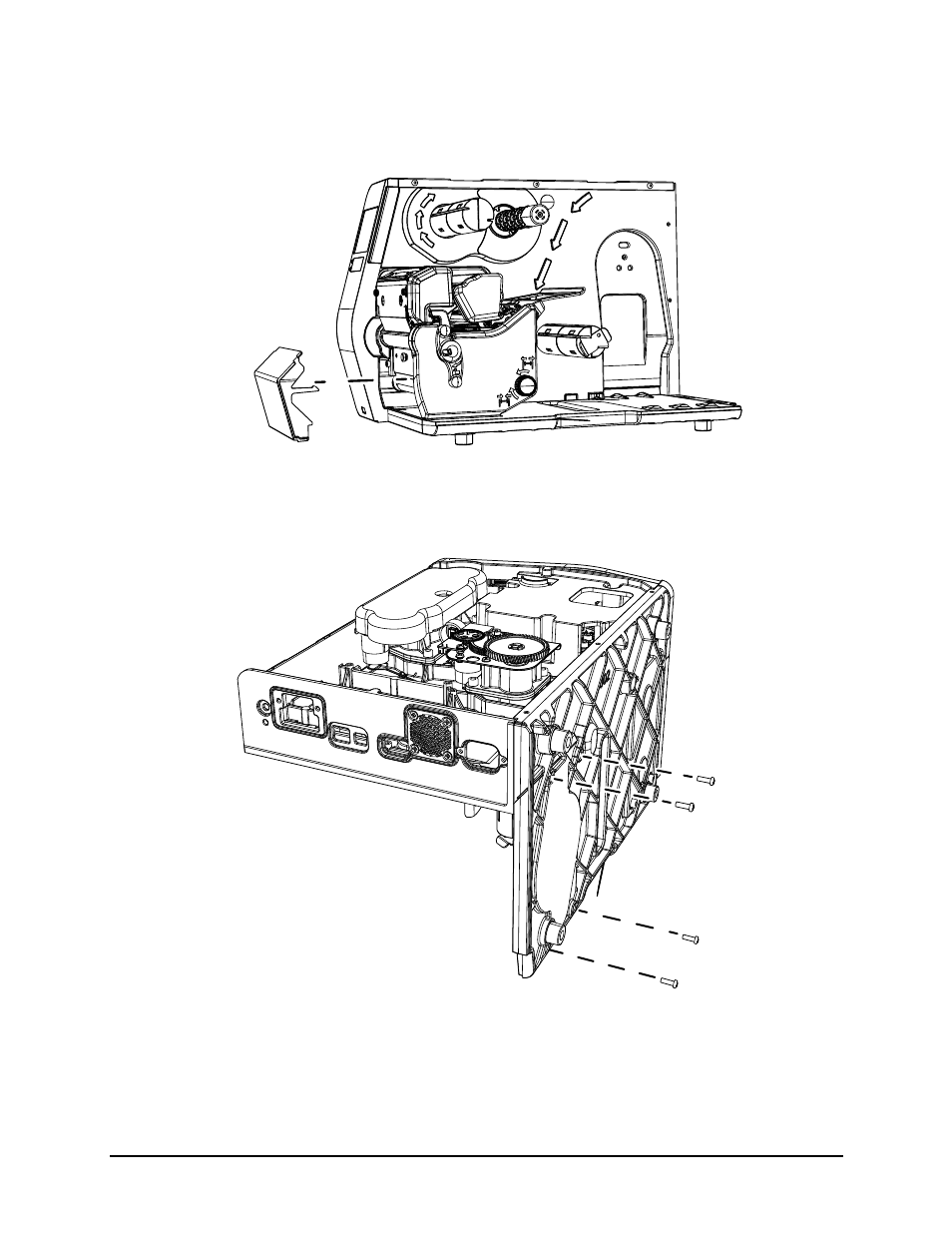

25. Remove the roller cover.
Figure: 2 - 21 Roller Cover
26. Loosen and remove the four (4) screws securing the media plate to the base plate
of the printer chassis.
Figure: 2 - 22 Media Plate
Note:
These screws will not be reused with the media hub option.
