Datamax-O'Neil Performance series Media Hub User Manual
Page 17
2 | Media Hub Installation Instructions
Media Hub Installation Guide
16
21. Loosen and remove the four (4) screws securing the main PCB assembly to the
printer chassis.

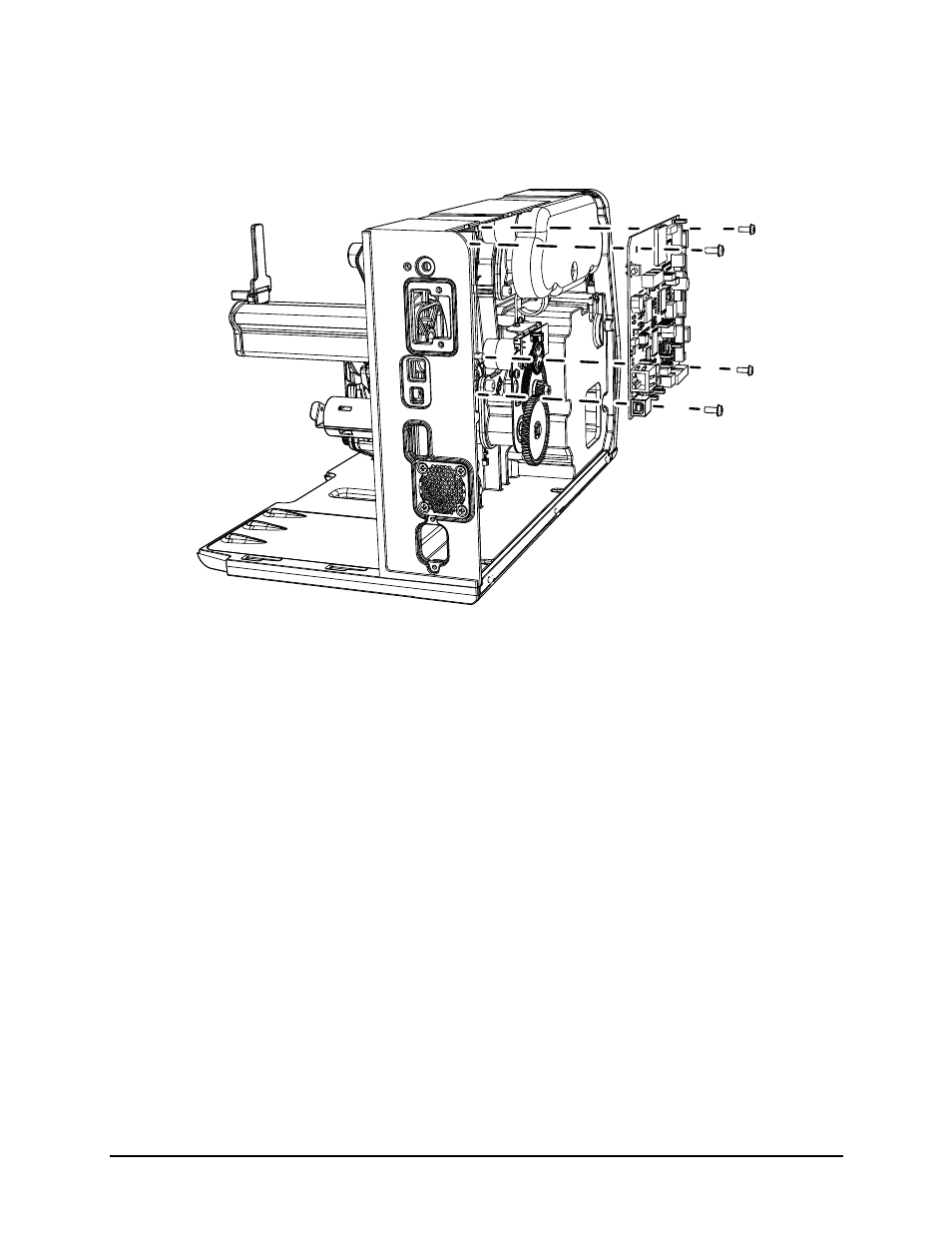

Figure: 2 - 19 Main PCB Assembly
22. Carefully remove the main PCB assembly by rotating the front (right side when
viewing from the right side of the printer) of the assembly out of the printer chassis
and then gently pulling the rest of the assembly out from the chassis.
