Image processing
Pearleye Technical Manual V2.2.1
38
The reference images are stored in several files within the flash and are directly
transferred into the correction memory following the camera start-up. The
parameter A indicates the file number of the correction image at low reference
temperature T
A
. The parameter
B serves the same purpose for the reference
image at temperature T
B
.
For improvement of image quality the camera usually is delivered ex-factory
with several sets of correction data, which are determined for diverse operating
conditions.
Diverse correction images (
A, B) may exist including the according set values
(
J, K). These correction images are loaded to the correction memory during
the camera start-up.

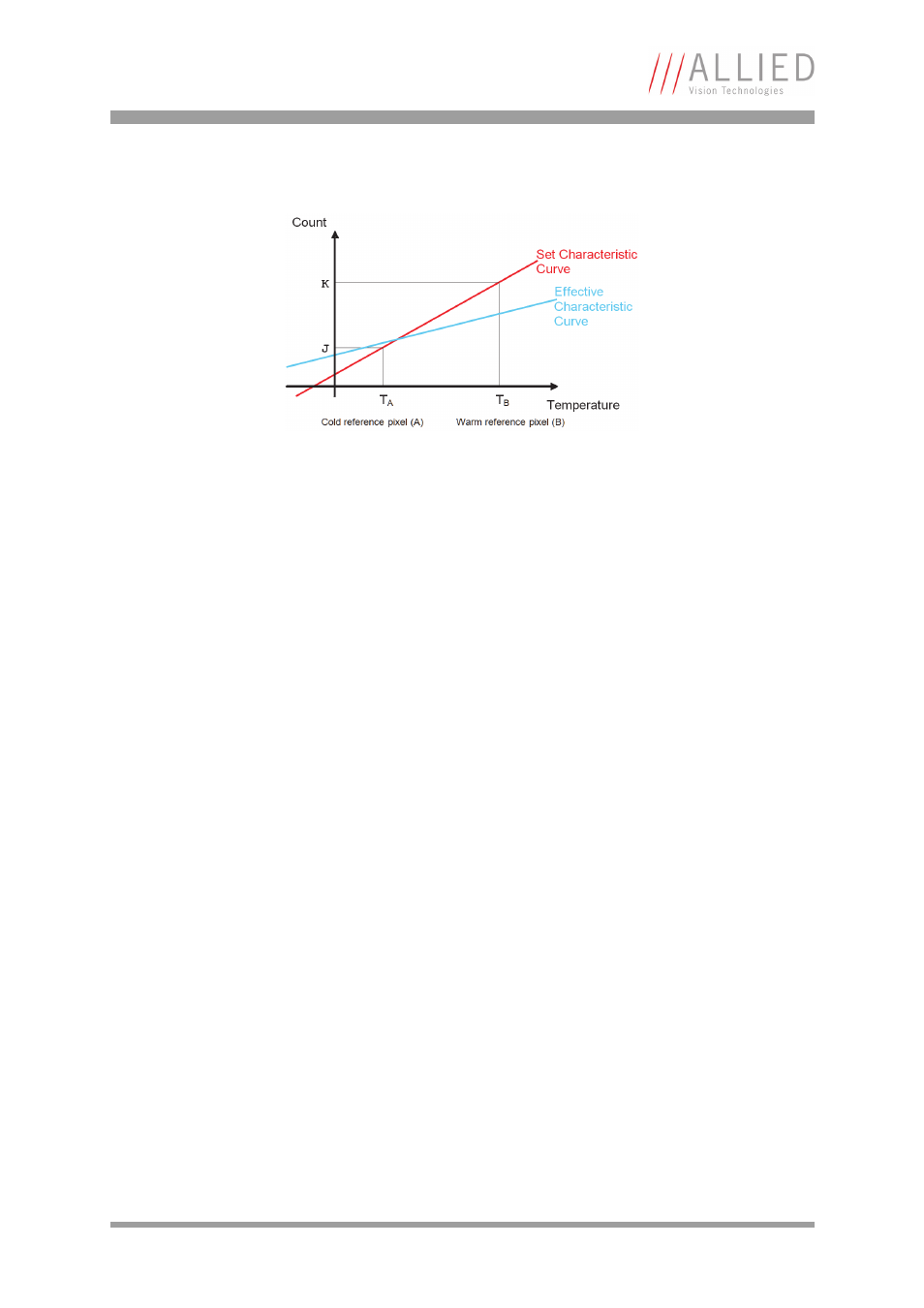

Figure 12: Two-point correction
