5 - INDICATIONS AND USE OF THE WHEEL BALANCER
5.1 - PRESETTING OF WHEEL DIMENSIONS
5.1.1 - AUTOMATIC PRESETTING
5.1.1.1 - STANDARD WHEELS (CALIBRATION NECESSARY ALSO FOR STATIC & COMBINED MODES)
DISTANCE + DIAMETER

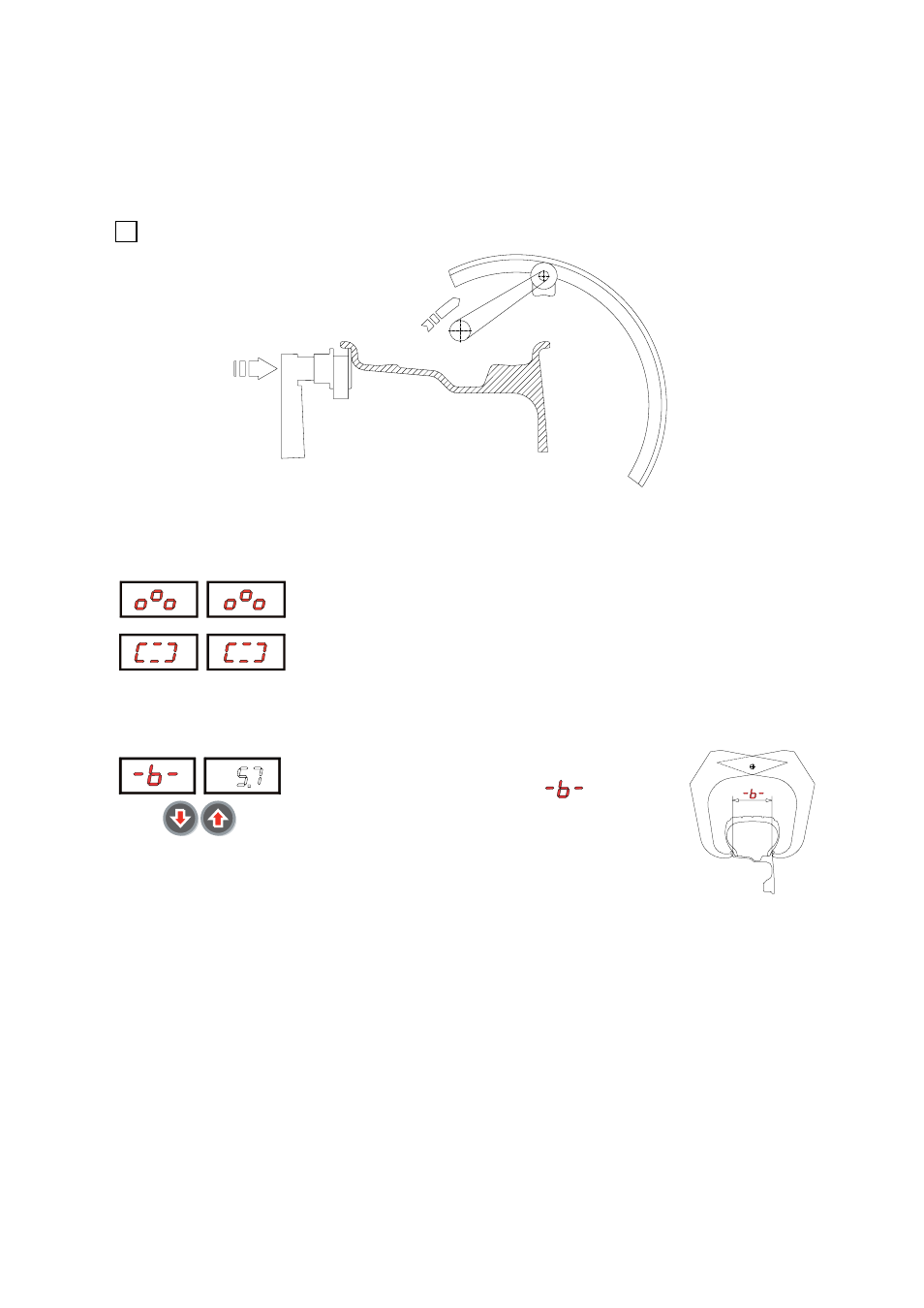

Move the gauge tip into contact against the rim keeping it in position for at least 2 seconds.
NOTE: Always use the round part of the distance-diameter gauge.
Indication of gauge in movement
Indication of dimensions acquired.
Return the gauge to position 0. The system automatically goes to the WIDTH position.
- The nominal width is normally stamped on the rim;
if not, proceed to measure dimension “
with the
calibre gauge (supplied as standard).
