1 - GENERAL

1.1 - GENERAL SAFETY REGULATIONS

- The machine should only be used by authorized and suitably trained personnel.
- Do not use the machine for purposes other than those specifi ed in this manual.
- The machine should not be modifi ed in any way except for those modifi cations explicitly carried out by the

fi rm.

- Never remove the safety devices. Any work on the machine should only be carried out by specialist person-

nel.

- Avoid using strong jets of compressed air for cleaning.
- Use alcohol to clean the plastic panel or shelves (AVOID LIQUIDS CONTAINING SOLVENTS).
- Before starting the wheel balancing cycle, make sure that the wheel is securely locked on the adapter.
- The machine operator should avoid wearing clothes with fl apping edges. Make sure that unauthorized
personnel do not approach the machine during the work cycle.
- Avoid placing objects inside the base as they could impair the correct operation of the machine.

1.1.1 - STANDARD SAFETY DEVICES
- The wheel guard is not obligatory because the balancing speed is less than 100 r.p.m.

1.2 - Field of application

The machine is designed for balancing wheels of cars and motor vehicles weighing up to 250 kg.
It can be operated in the temperature range of 0°C to + 45°C.
The following functions are provided: ALUM, SPLIT; Unbalance optimization; Self diagnostics; Self calibration.

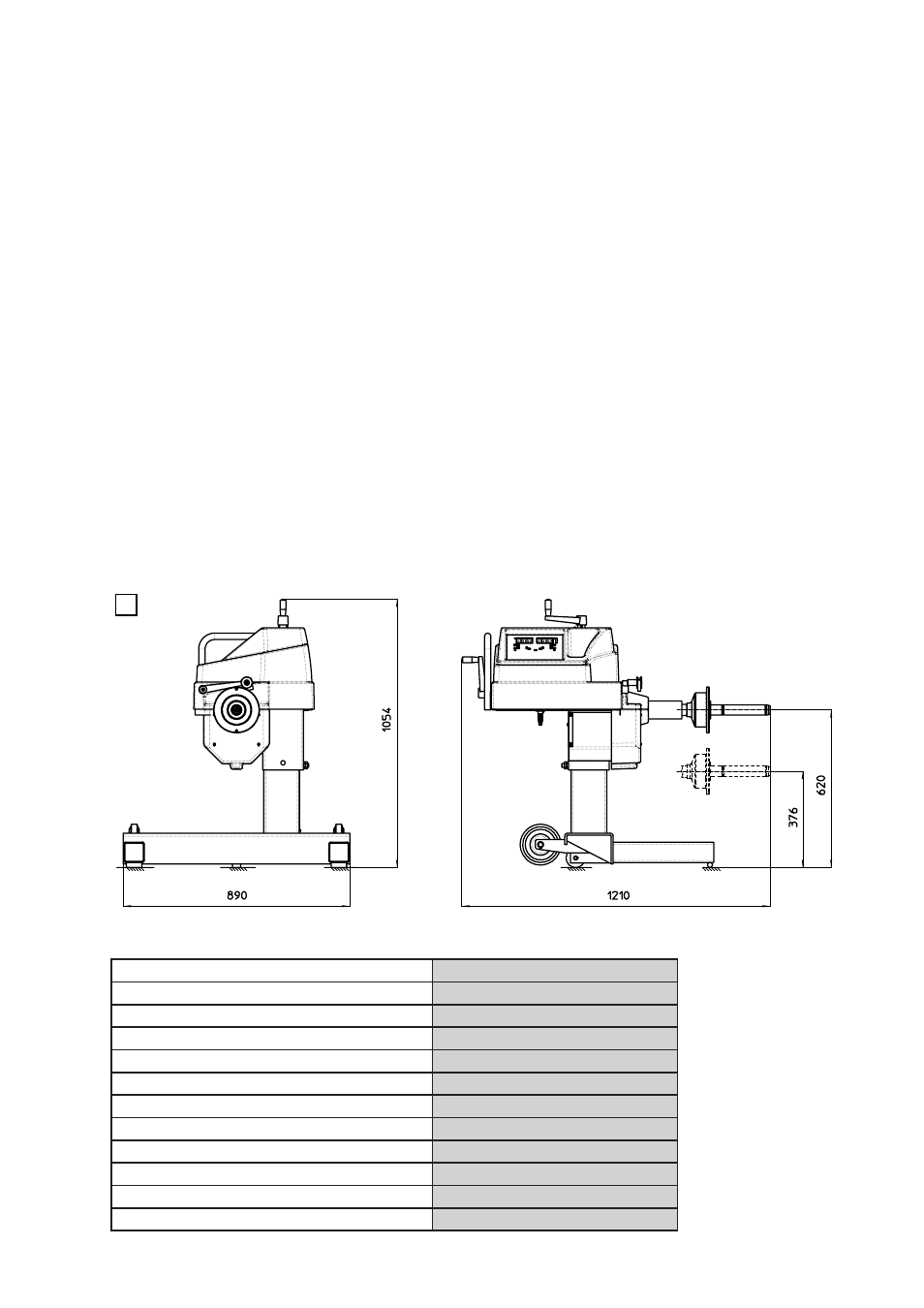

1.3 - OVERALL DIMENSIONS

1.4 - TECHNICAL DATA

Single-phase power supply

12 - 24 V DC 0,15 A

Protection class

IP 54

Balancing speed

70 min

-1

TRUCK

Balancing speed

100 min

-1

CAR

Cycle time

8-20 seconds

Balancing accuracy

1 gram (car) - 10 grams (truck)

Position resolution

± 0.7°

Average noise

< 70dB (A)

Rim-machine distance

0 - 300 mm

Rim width setting range

1.5” ÷ 20” or 40 ÷ 510 mm

Diameter setting range

10” ÷ 30” or 265 ÷ 765 mm

Max. wheel diameter

1240 mm
