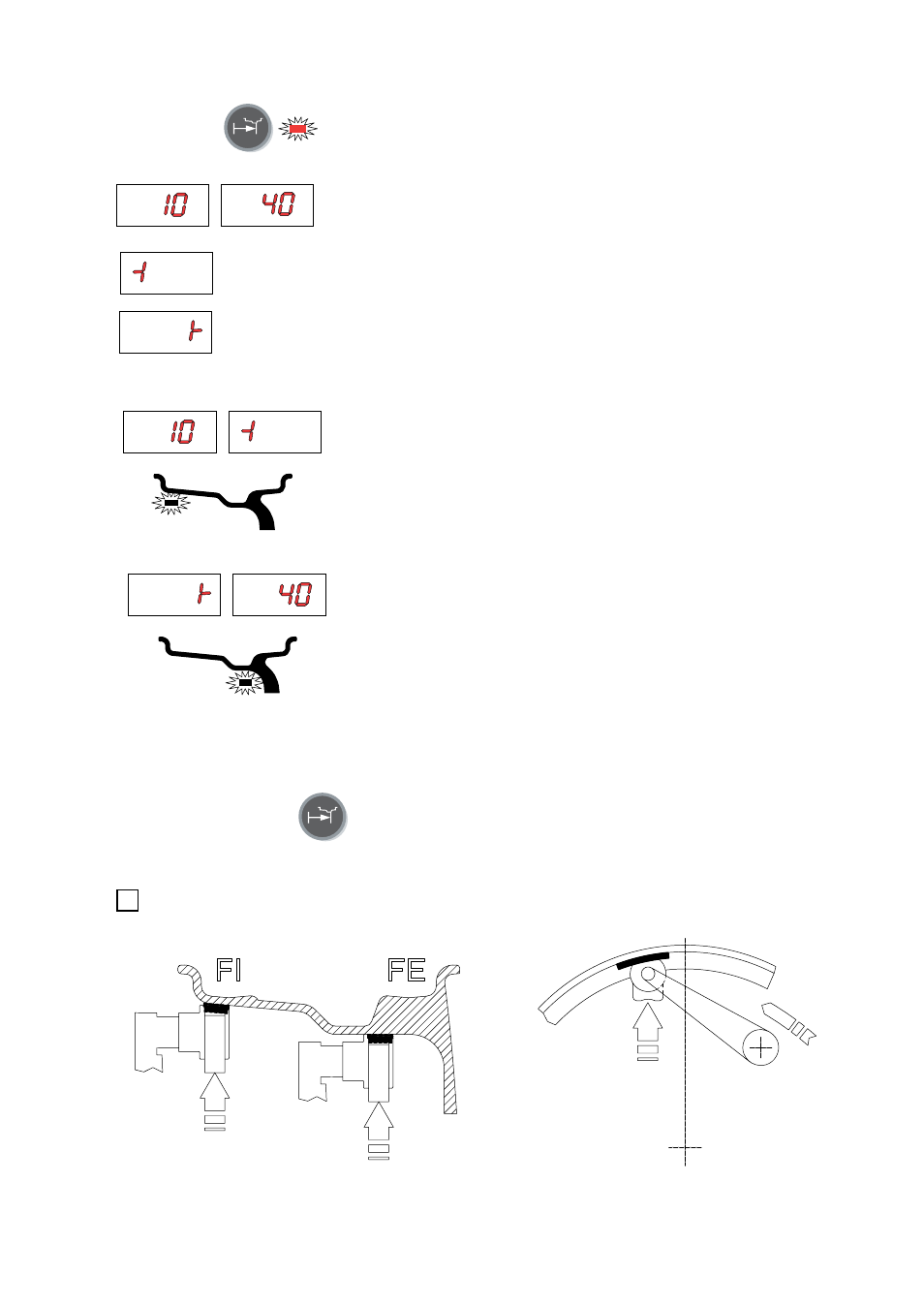

5.3.1 - INDICATION OF EXACT CORRECTION POSITION
- Press the button if using the correction method with weights on the inside of the rim .
- Fit the correction weight in the specifi c gauge seat with the adhesive part
facing upwards
- bring the wheel into correct angular position for the plane to be
corrected.
- Pull the gauge further outwards.
- Return the gauge to the rest position.
INSIDE CORRECTION POSITION
OUTSIDE CORRECTION POSITION
- rotate the gauge until the correction weight adheres to the rim
- the fact that the weight application position is no longer vertical (Fig. 9) is automatically compensated
- to cancel this function, press button again.
