I 0638 - 18
40 mm
GB

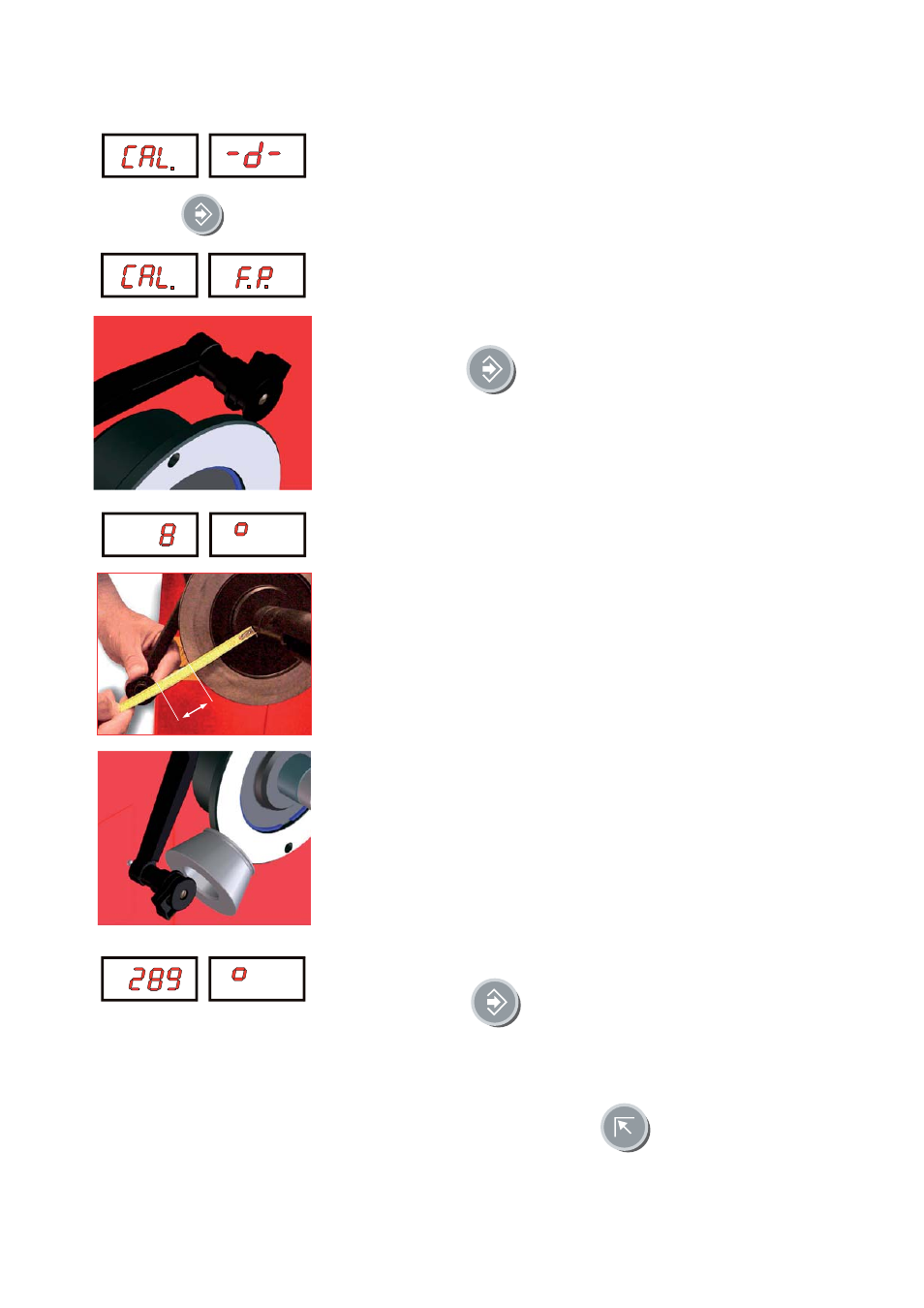

6.3.2 - DIAMETER GAUGE
Place the round part of the gauge terminal on the fl ange as shown in the
fi gure and press
- The number 8 ± 3° appears on the left display .
- Turn the gauge downward position the round part of the gauge
terminal at 40 mm (radial distance) from the fl ange as indicated
in the fi gure; alternatively use one of the cones provided as
shown in the images
- The number 289 ± 3° should appear on the left display.
- If not, press the button holding the gauge still at 40 mm:
the number 289 appears on the left display.
- Return the gauge to rest position.
In the event of incorrectly accessing the diameter gauge calibration function, press to cancel it.
