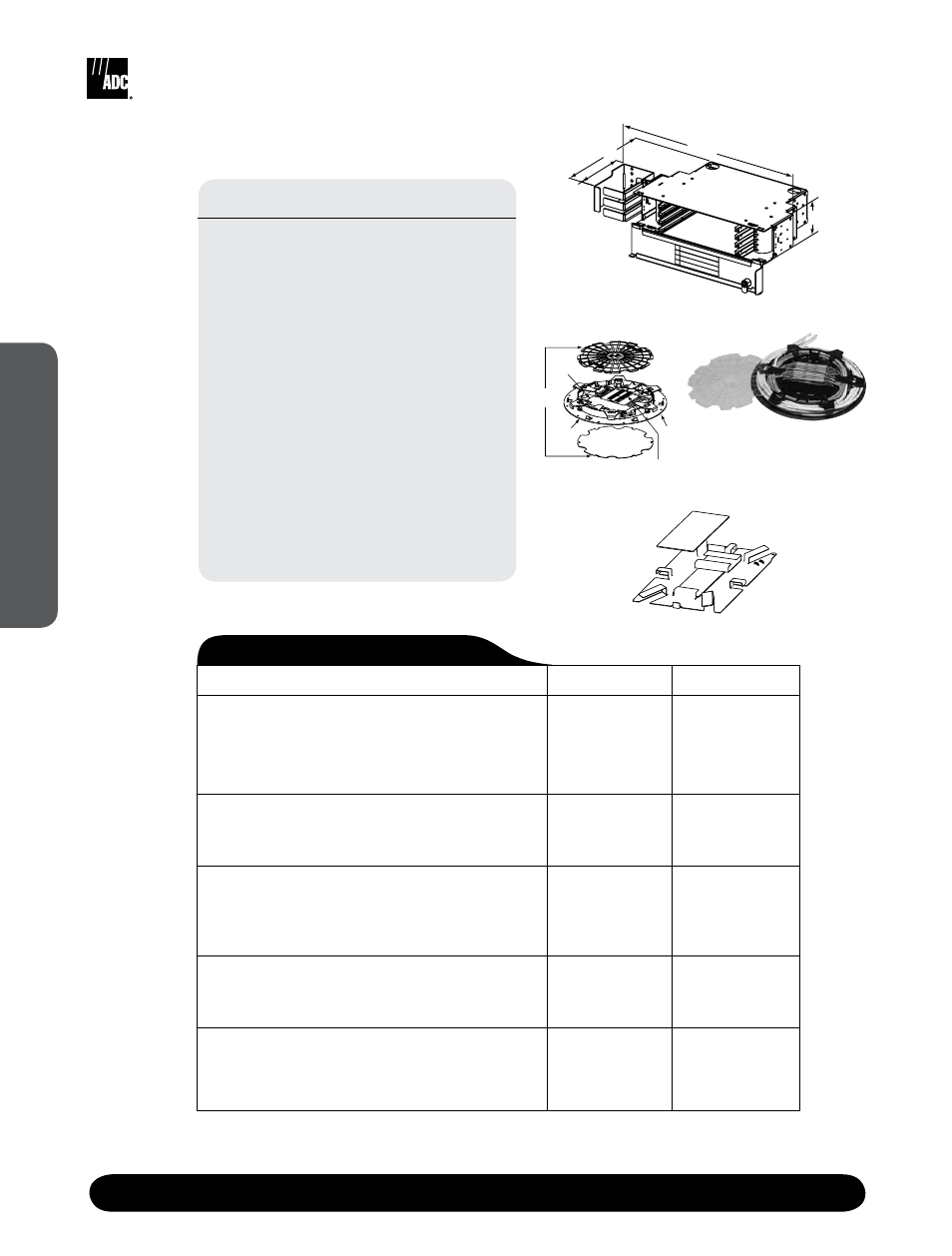

Fiber
Optic
Panels
46 w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Rack
Mount
Panel
Solutions
Splice Chip(s)
(Heat Shrink
Shown)
Splice
Deck
Top
Side
Bottom
Side
Clear
Covers
Splice Deck
Catalog Number
FL2-48SPNL2
FL2-96SPNL2
FL2-144SPNL2
FST-DRS12-HS
FST-DRS12-FT
FST-DRS12-MT
FL2-48SPNL
FL2-96SPNL
FL2-144SPNL
FL2-RSPLCE-HS
FL2-RSPLCE-FT
FL2-RSPLCE-MT
FL2-ACC007
Panel Height
3.5" (2 RU)
7" (4 RU)
8.75" (5 RU)
3.5" (2 RU)
7" (4 RU)
8.75" (5 RU)
O r d e r i n g I n f o r m a t i o n
Description
Splice chassis for use with splice wheel
(Only accepts splice wheel)
48-fiber capacity
96-fiber capacity
144-fiber capacity
Splice wheel
Heat shrink (single fiber fusion)
Bare fusion
Mechanical (mass fusion)
Splice chassis for use with splice deck
(Also accepts splice wheel)
48-fiber capacity
96-fiber capacity
144-fiber capacity
Splice deck
Heat shrink (single fiber fusion)
Bare fusion
Mechanical (mass fusion)
Cable clamp kit (kit of 1)
Outer diameter 5 mm to 20 mm (0.2" to 0.8")
For mounting kits and additional
accessories, see pages 48-56.
FL2000 Series Fiber Optic Panel
Chassis Solutions
Features
• Offers a combination of splicing protection
and associated fiber/pigtail storage
• Splice chassis can be mounted in conjunction
with any FL2000 termination panel or as a
stand-alone splice panel
• Occupies same footprint and offers same
mounting options as FL2000 termination
panels
• Accepts the ADC splice wheel for efficient
management of fiber cable and splice protection
• Accepts the ADC splice deck
• Ships with vertical cable guide (VCG)
Fiber Chassis Data
• Fiber capacity: 48, 96 & 144
• Splice
• Pigtail storage
89 mm
(3.5")
258 mm
(10.1")
126 mm
(5")
498 mm
(19.6") Splice Chassis
Splice Wheel
Splice Chassis
