Rack
Mount
Panel
Solutions
Features
• Can be purchased and installed as
growth necessitates
• Available with preterminated three- or
five-meter pigtails
• Pigtails consist of a single outer jacket
containing six color-coded 900 µm fibers
• One end of pigtail terminated with chosen
connector style and installed into the
6pak adapters
• Saves installation time

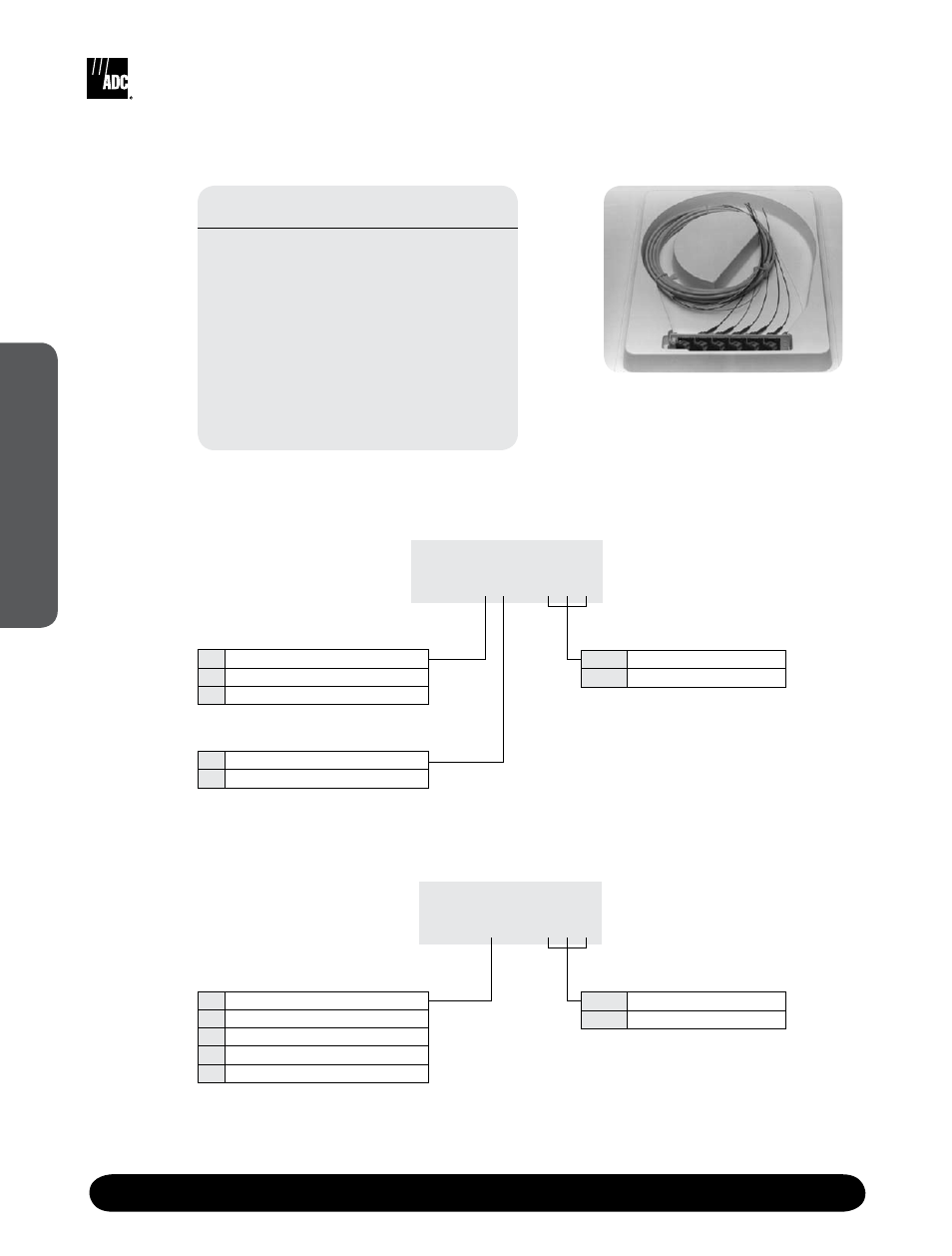

FL2000 Series Fiber Optic Panel
Panel Accessories
Stranded Multimode Pigtails and Adapters
6pak Adapter
(Shown with SC Adapters and Pigtails)
Stranded Singlemode Pigtails and Adapters
6pak Adapter — Adapters and Pigtails
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
1 LC 6paks are loaded with 12-fiber pigtails
Fiber Type
B Multimode 62.5/125 µm
C Multimode 50/125 µm
Catalog Number
FL2 - 6P __ __ C 6 __ __ __
Pigtail Length
03W 3 m pigtail
05R 5 m pigtail
Connector and Adapter Type
9 SC
A FC
6 LC 1
Catalog Number
FL2 - 6P __ S C 6 __ __ __
Pigtail Length
03W 3 m pigtail
05R 5 m pigtail
Connector and Adapter Type
7 SC ultra polish
J SC angled polish
2 FC ultra polish
8 LC ultra polish 1
B LC angled polish 1
1 LC 6paks are loaded with 12-fiber pigtails
