FL2000 Series Fiber Optic Panel
Panel Accessories – 23-Inch Rack Mount Installation Kits
Catalog Number
FL2-23VCG0175
FL2-23VCG0350
FL2-23VCG0525
FL2-23VCG0700
FL2-23VCG0875
FL2-23VCG1050
FL2-23VCG1400
FL2-23VCG1750
Panel Height
1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
7" (4 RU)
8.75" (5 RU)
10.5" (6 RU)
14" (8 RU)
17.5" (10 RU)
O r d e r i n g I n f o r m a t i o n
Description
Wide VCG mount kit
Kit includes: VCG with integrated
mounting holes

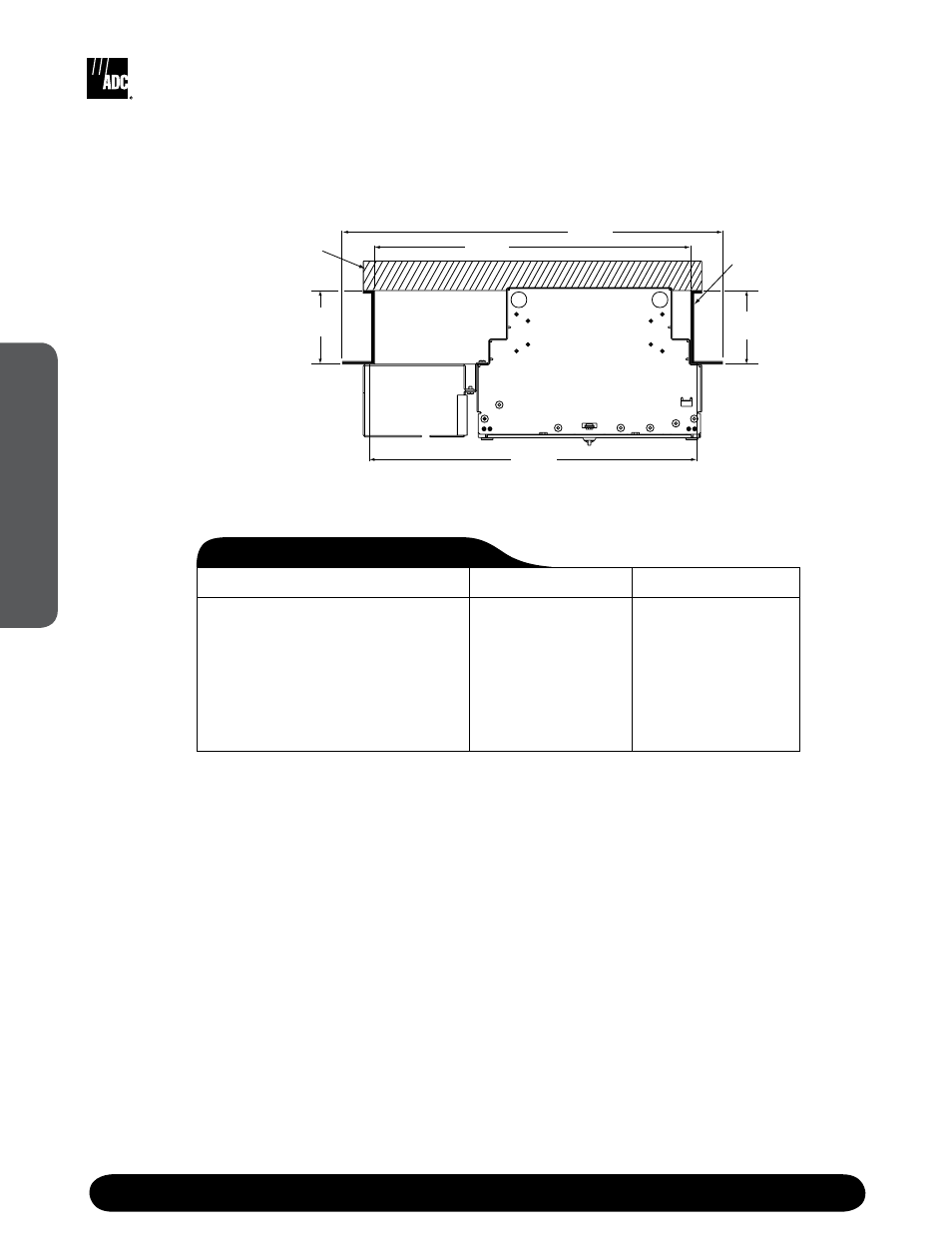

657 mm
(25.8")
546 mm
(21.5")
567 mm
(22.3")
127 mm
(5")
127 mm
(5")
Rear Guard Box
(optional with
some racks) Rack shown
for reference
Wide VCG Mount Kit
Wide VCG Mount Kit
Allows for increased fiber capacity within the VCG.
