Fiber
Optic
Panels
45 w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Rack
Mount
Panel
Solutions

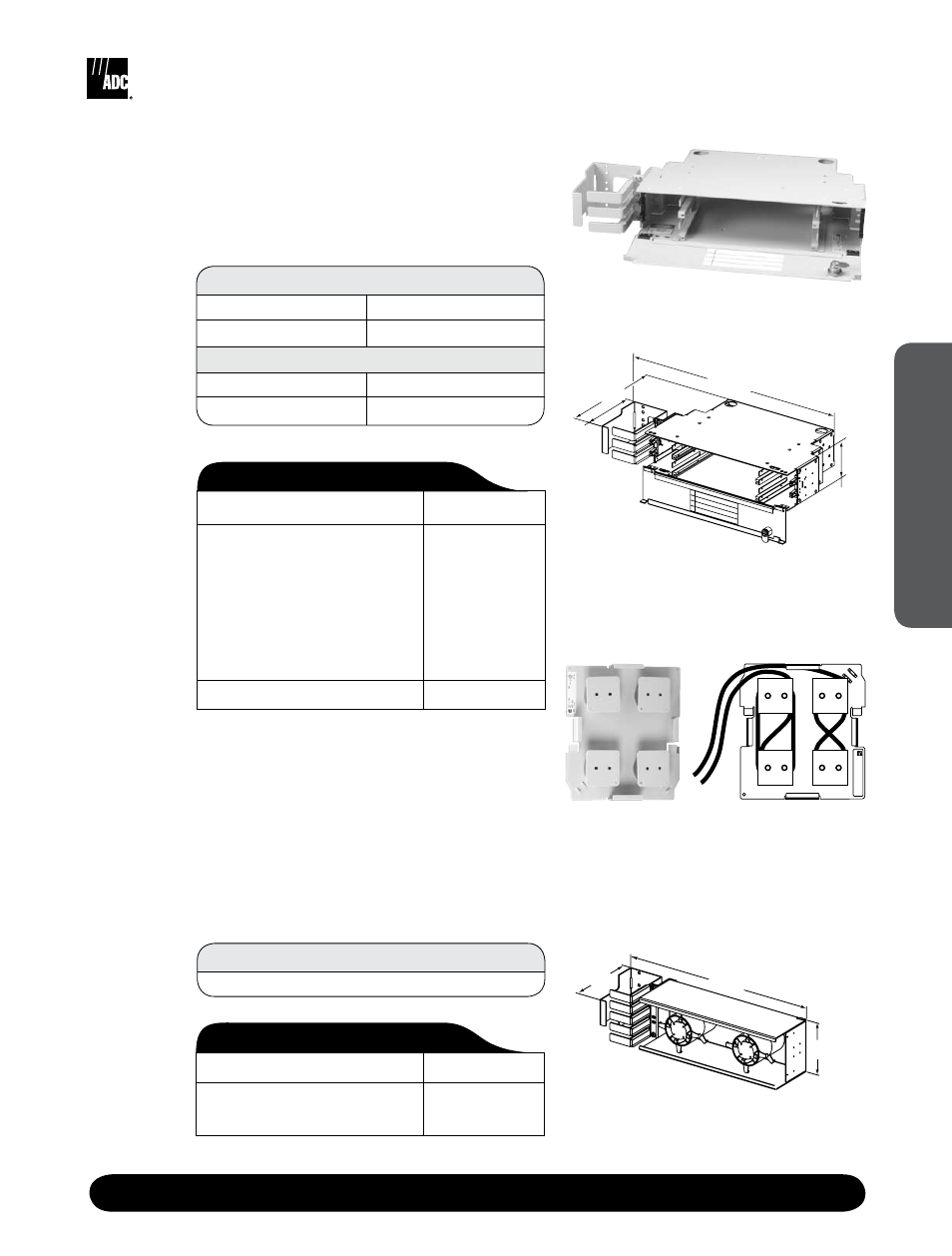

Horizontal Interbay Management Panel
Manages and stores fiber within the frame.
Storage Deck Chassis
Mounts with FL2000 termination panels to provide
jumper storage. May be wall, rack or cabinet mounted.
Catalog Number
FL2-2RSTORE
FL2-6RSTORE
FL2-TR2000
Description
Storage deck chassis
(storage decks ordered separately)
2 storage deck capacity;
89 mm x 483 mm x 258 mm
(3.5" x 19" x 10.2")
6 storage deck capacity;
222 mm x 483 mm x 258 mm
(8.75" x 19" x 10.2")
Storage deck
O r d e r i n g I n f o r m a t i o n
Catalog Number
FL2-HZSTORE
Description
Horizontal interbay
management panel
O r d e r i n g I n f o r m a t i o n
FL2000 Series Fiber Optic Panel
Slack Storage Solutions
Horizontal Interbay Management Panel
FL2-HZSTORE
498 mm
(19.6")
133 mm
(5.25")
126 mm
(5")
126 mm
(5")
258 mm
(10.1")
89 mm
(3.5")
498 mm
(19.6")
Storage Deck
(Top View)
FL-TR2000
Storage Deck Chassis
(Front View)
FL2-2RSTORE
Storage Deck
Storage Capacity (1 patch cord per deck)
1.7 mm patch cord 35 m (115') per deck
3.0 mm patch cord 20 m (66') per deck
Storage Capacity (2 to 4 patch cords per deck)
1.7 mm patch cord 39 m (128') per deck
3.0 mm patch cord 29 m (95') per deck
Storage Capacity
Stores up to 137 m (550') using oval storage method
Storage Deck Chassis
