FL2000 Series Fiber Optic Panel
Value-Added Module (VAM) Chassis
Value-Added Module (VAM) System
ADC offers an expansive line of monitor, splitter, WDM and CWDM VAM plug-in modules designed
to meet all application needs. Please reference the
Value-Added Module (VAM) System Catalog
#101663AE for details at www.adc.com or contact ADC Customer Service.
The FL2000 VAM chassis is designed to accommodate ADC VAM plug-in modules in FL2000
installations. The chassis protects and manages optical components and is purchased empty, then
loaded with various plug-in modules or blank plates, all of which can be mixed and matched. The
chassis can be mounted in 5-inch recess, 19- or 23-inch rack mount, frame and cabinet environments.
Vertical cable guides match the vertical cable management features of existing FL2000 system. The
chassis accommodates 4, 6 or 9 plug-in modules.
FL2-4VAM525
O r d e r i n g I n f o r m a t i o n
Description Dimensions (HxWxD) Catalog Number
10.5" FL2000 VAM chassis, unloaded;
accommodates 9 single plug-in modules 267 mm x 483 mm x 258 mm
(10.5" x 19" x 10.1")
FL2-9VAM105
7" FL2000 VAM chassis, unloaded;
accommodates 6 single plug-in modules 152 mm x 483 mm x 258 mm
(7" x 19" x 10.1")
FL2-6VAM700
5.25" FL2000 VAM chassis, unloaded;
accommodates 4 single plug-in modules 133 mm x 483 mm x 258 mm
(5.25" x 19" x 10.1")
FL2-4VAM525
Note: The FL2000 VAM system is designed to accept only front access modules; i.e., all input
and output adapters, pigtails and/or bare fibers must be located on the front of the plug-in modules.

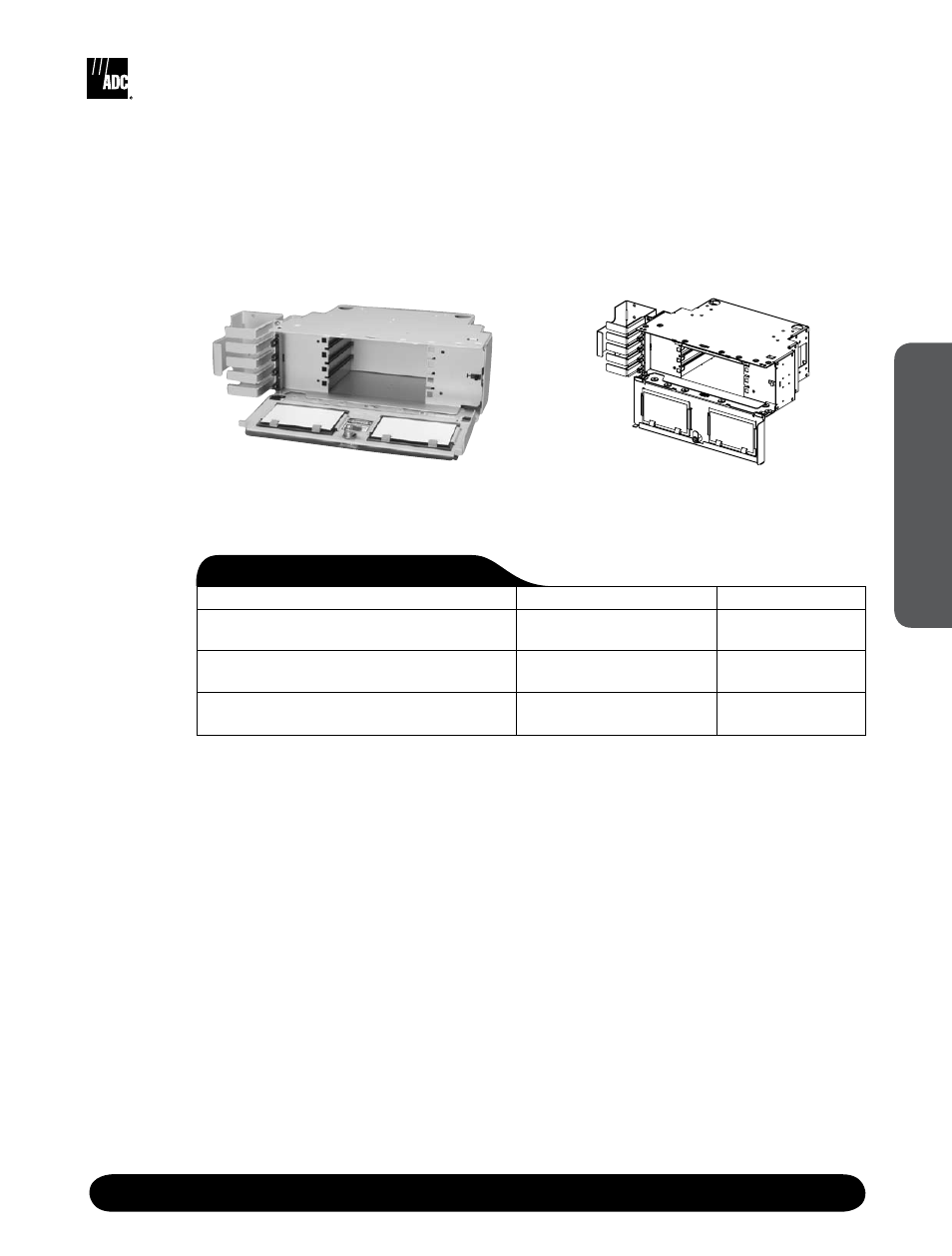

VAM Chassis
(Shown Unloaded)
