ADC Fiber Optic Panel FL2000 Series - Manual (Page 14)

10/07
•
103743AE
Fiber
Optic
Panels
51 w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Rack
Mount
Panel
Solutions

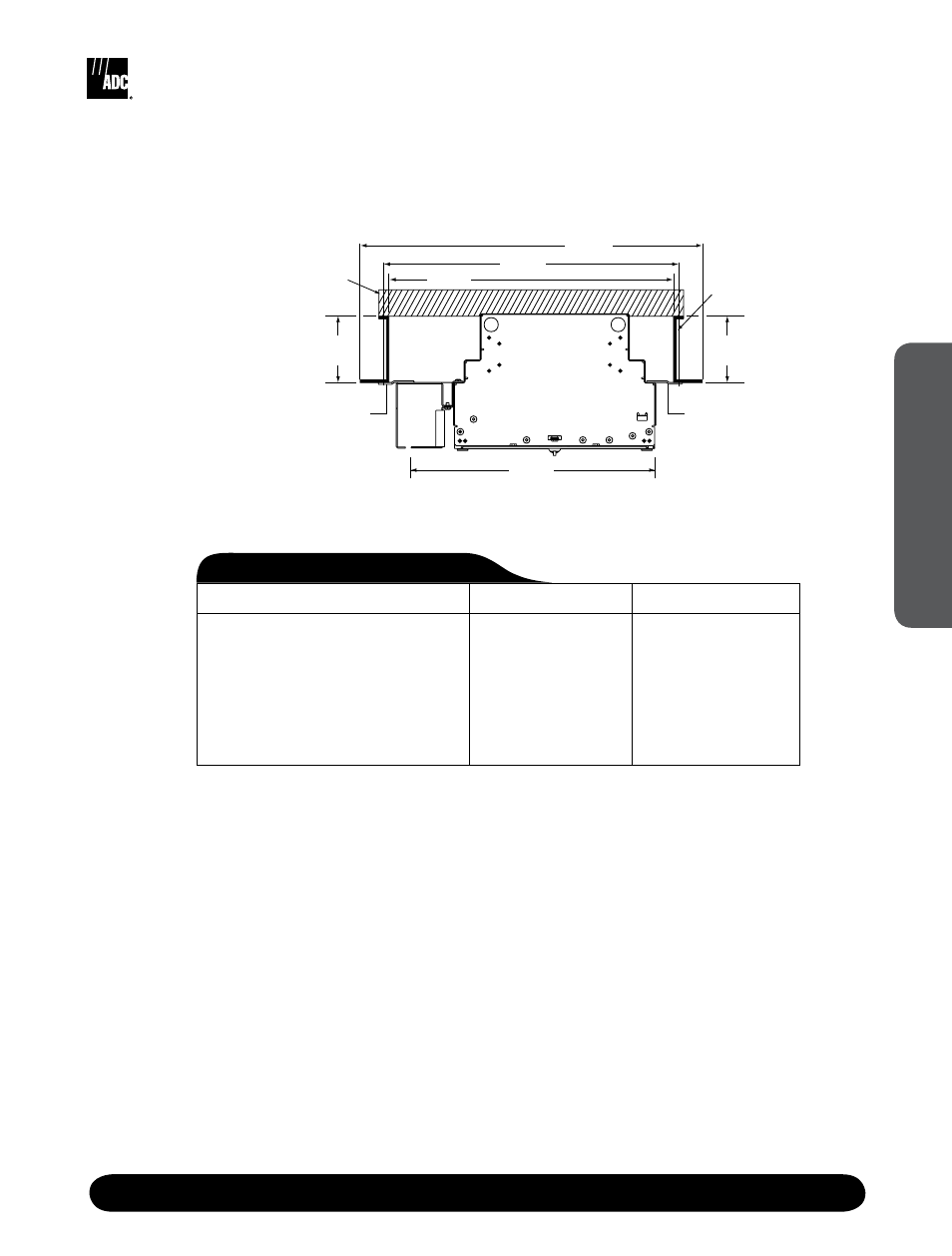

657 mm
(25.8")
567 mm
(22.3") 546 mm
(21.5")
127 mm
(5")
127 mm
(5")
Rear Guard Box
(optional with
some racks) Rack shown
for reference
Extender Bracket Extender Bracket
465 mm
(18.3")
FL2000 Series Fiber Optic Panel
Panel Accessories – 23-Inch Rack Mount Installation Kits
Catalog Number
FL2-EB0175P
FL2-EB0350P
FL2-EB0525P
FL2-EB0700P
FL2-EB0875P
FL2-EB1050P
FL2-EB1400P
FL2-EB1750P
Panel Height
1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
7" (4 RU)
8.75" (5 RU)
10.5" (6 RU)
14" (8 RU)
17.5" (10 RU)
O r d e r i n g I n f o r m a t i o n
Description
Centered mount kit
(with extender brackets)
This kit can be used with flush mount
brackets (see page 47) to achieve 23"
flush mounting, as well as 1", 2" or 4"
recess mounting
Centered Mount Kit
Allows for standard mounting in a 23-inch rack.
Centered Mount Kit
