ADC Fiber Optic Panel FL2000 Series - Manual (Page 18)

10/07
•
103743AE
Fiber
Optic
Panels
55 w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Rack
Mount
Panel
Solutions
Locks
Catalog Number
IPA-K1
IPA-K2
UEGP-7PW
E-501-L139
FL2-ACC011
FL2-ACC012
FL2-ACC006
FL2-ACC007
FL2-ACC033
FL2-BLNKVCG0350
FL2-BLNKVCG0875
FL2-BLNKVCG1050
FL2-BLNKFULL0350
FL2-BLNKFULL0525
FL2-BLNKFULL0700
FL2-BLNKFULL0875
FL2-BLNKFULL1050
O r d e r i n g I n f o r m a t i o n
Description
Lock
Key lock #1; includes lock and key #1
Key lock #2; includes lock and key #2
End guard (H x W x D)
2.14 m x 64 mm x 305 mm (7' x 2.5" x 12");
right or left side
Interbay management panel
2.14 m x 127 mm (7' x 5") mounts to
a standard (19" or 23" rack)
Lower cable trough (H x W x D)
356 mm x 483 mm x 127 mm (14" x 19" x 5")
178 mm x 483 mm x 127 mm (7" x 19" x 5")
Bonding grounding kit: kit of 1
Cable clamp kit: kit of 1
Outer diameter 5 mm to 20 mm (0.2" to 0.8")
Cable clamp kit for use with 12-fiber
termination or termination/splice panels
Blank VCG to add cable management to frame
not fully loaded
3.5"
8.75"
10.5"
Blank VCG with blank panel for aesthetics
3.5"
5.25"
7"
8.75"
10.5"
305 mm
(12") 64 mm
(2.5")
2.14 m
(7')
End Guard
UEGP-7PW
Interbay Management Panel
E-501-L139
356 mm (14")
Lower Cable Trough
FL2-ACC011
Bonding/Grounding Kit
Clamp
Bracket
Rubber
Grommets
Clamp
Yokes (2)
Plate Nuts (2)
Cover
Cable Clamp Kit
178 mm (7")
Lower Cable Trough
FL2-ACC012
Blank VCG
FL2-BLNKFULL0875

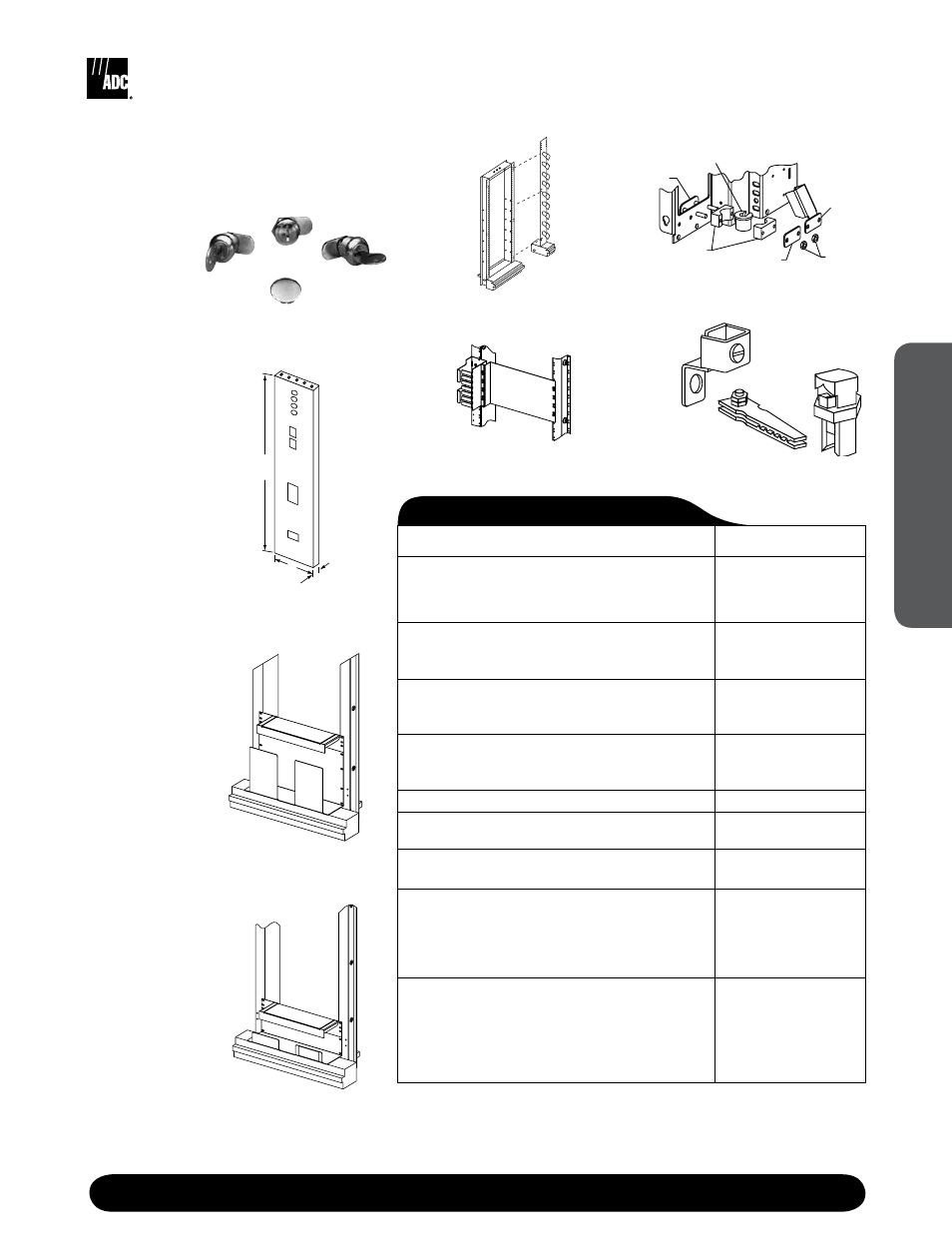

FL2000 Series Fiber Optic Panel
Panel Accessories
Miscellaneous
