ADC Fiber Optic Panel FL2000 Series - Manual (Page 7)

10/07
•
103743AE
Fiber
Optic
Panels
44 w w w . a d c . c o m • + 1 - 9 5 2 - 9 3 8 - 8 0 8 0 • 1 - 8 0 0 - 3 6 6 - 3 8 9 1
Rack
Mount
Panel
Solutions
Features
• Mounting
- 19-inch EIA racks or cabinets, standard
five-inch recess
- Wall mounting option available
- Other mounting kits available
• Hinged on left front side; allows full access to
rear of front plate and interior of panel
• FL2000 6pak adapter plug-ins ordered separately
• Equipped with removable metal doors with
Plexiglass ®1 windows
• Designation labels included with each panel
• Complete line of accessories including locks
for security
• Ships with vertical cable guide (VCG)
Fiber Chassis Data
• Fiber capacity*: 12, 24, 48, 72 and 96
• Termination
• Pigtail storage

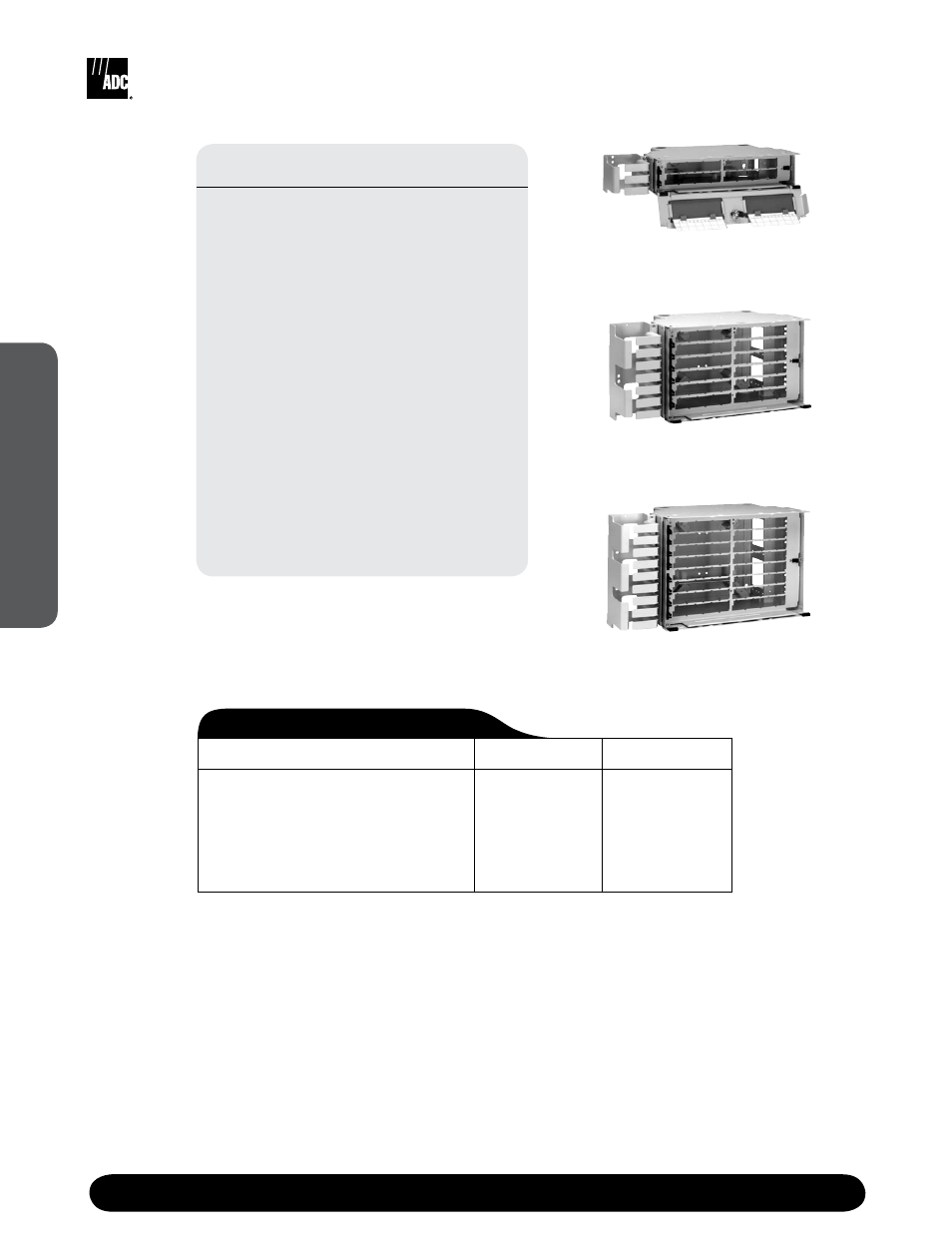

FL2000 Series Fiber Optic Panel
Empty Termination Chassis
24-Position Termination Chassis
96-Position Termination Chassis
*Panels can double capacity with LC adapters.
72-Position Termination Chassis
Description
Empty termination chassis
12-position
24-position
48-position
72-position
96-position
Catalog Number
FL2-12RPNL
FL2-24RPNL
FL2-48RPNL
FL2-72RPNL
FL2-96RPNL 1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
8.75" (4 RU)
10.5" (5 RU)
O r d e r i n g I n f o r m a t i o n
Panel Height
1 Plexiglass is a registered trademark of Atoglas Division
of Atofina Chemicals, Inc.
