64 ECU Manager Software
Changing Table Values
Selecting the Item to be Adjusted
The cursor selects the table value that may be adjusted.
The cursor may be moved using the arrow keys, or by pressing the Space
Bar which will automatically move the cursor to the current engine operating
point.
Note that the table does not show all values at once. To view the additional
values move the adjustment cursor to the edges of the table using the arrow
keys, this will cause the table to scroll and show the hidden values.
Make sure the Engine is “On Site”
For adjustments to affect the current engine operation the engine operating
point must be at the centre of the selected site. The Adjust Table object
provides Indicators and a Target to assist in this.

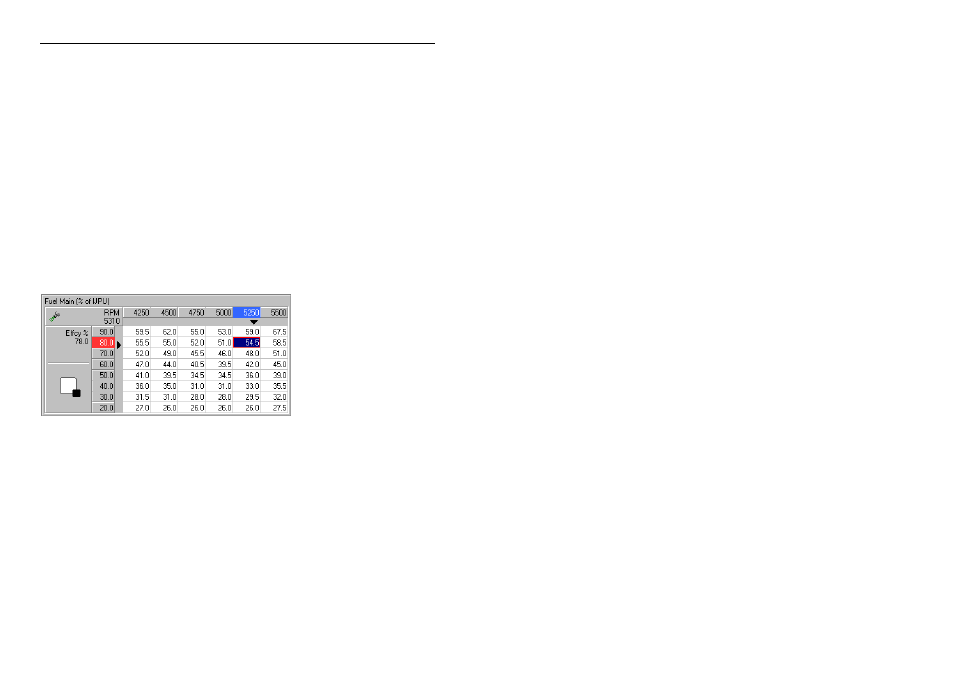

Table Indicators
Indicators are shown at the top and side of the table (the black
triangles). The indicators show the current engine operating point and
therefore indicate which table value (or values) the ECU is currently
using. The indicators must point to the same site as the adjustment
cursor for any adjustments to change the current engine tuning.
The site that is closest to the current operating point is also indicated
by a red rectangle.
Table Target
A target is shown at the left of the table. This allows more accurate
positioning of the engine operating point.
