3.8 Installing the CD-ROM drive
Take out a pair of slide rails from
holder(SR209/SR105) or remove
them from side panel of drive
cage frame in SR107.
Insert both guide pins, circled in
Figurexxx, of slide rail in
moutning holes of CD-ROM Drive,
and then secure them with
screws side by side.
Insert the CD-ROM drive in the
drive bay until you hear a crack
sound.

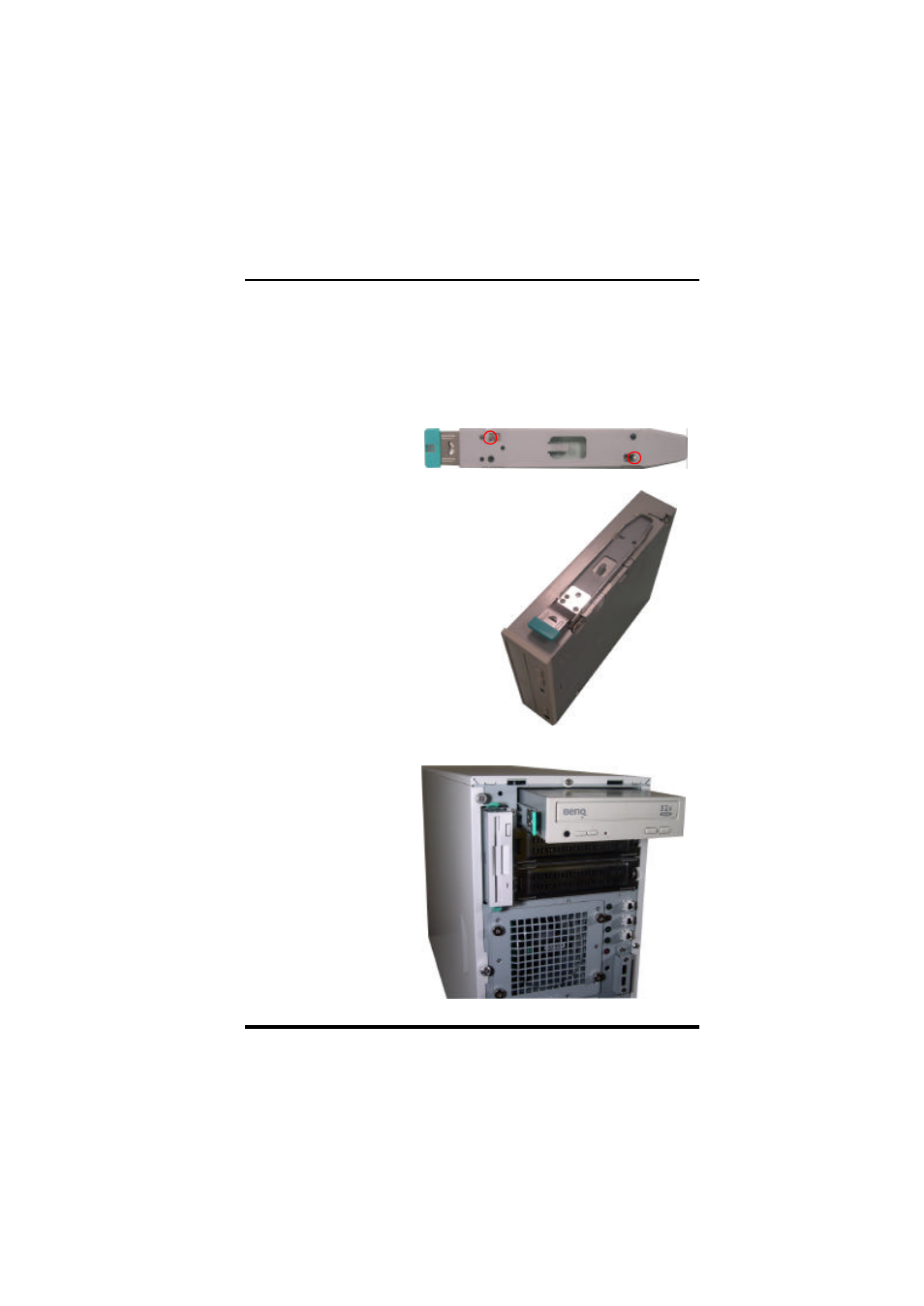

Figure 3-28
Figure 3-29
Figure 3-30
(a).
(b).
(c).
