III. Removing Hotswap or Non-Hotswap Cage
Loosen the four thumbscrews,
which secure the HDD cage to
chassis body.
Pull out the HDD cage slightly.
Disconnect the SCSI, serial ATA,
or power cables. If necessary,
the SCSI terminator should be
removed.
Continute to pull out this HDD
cage until it is totally out of drive
bay.
IV. Installing a HDD to hard disk carrier
Remove the air dam first.
Install a HDD into hard disk
carrier, and then secure it with
the four screws you can find in
screw bag.
Insert the hard disk carrier into
the Hot-swap cage with lever still
extended.
Push the lever back until it clicks
into place.

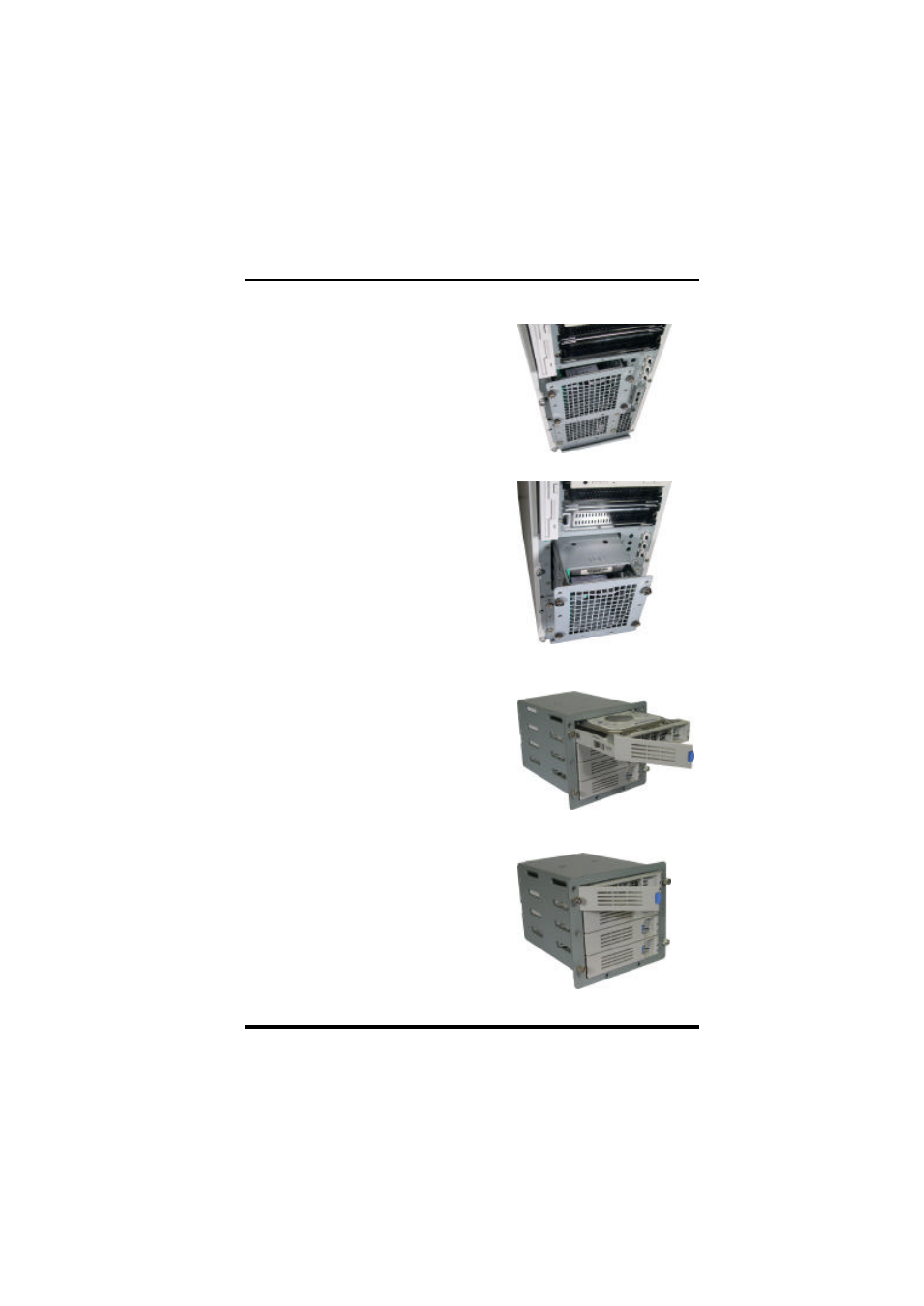

Figure 3-9
Figure 3-10
Figure 3-11
Figure 3-11
(a).
(b).
(c).
(d).
(a).
(b).
(c).
(d).
