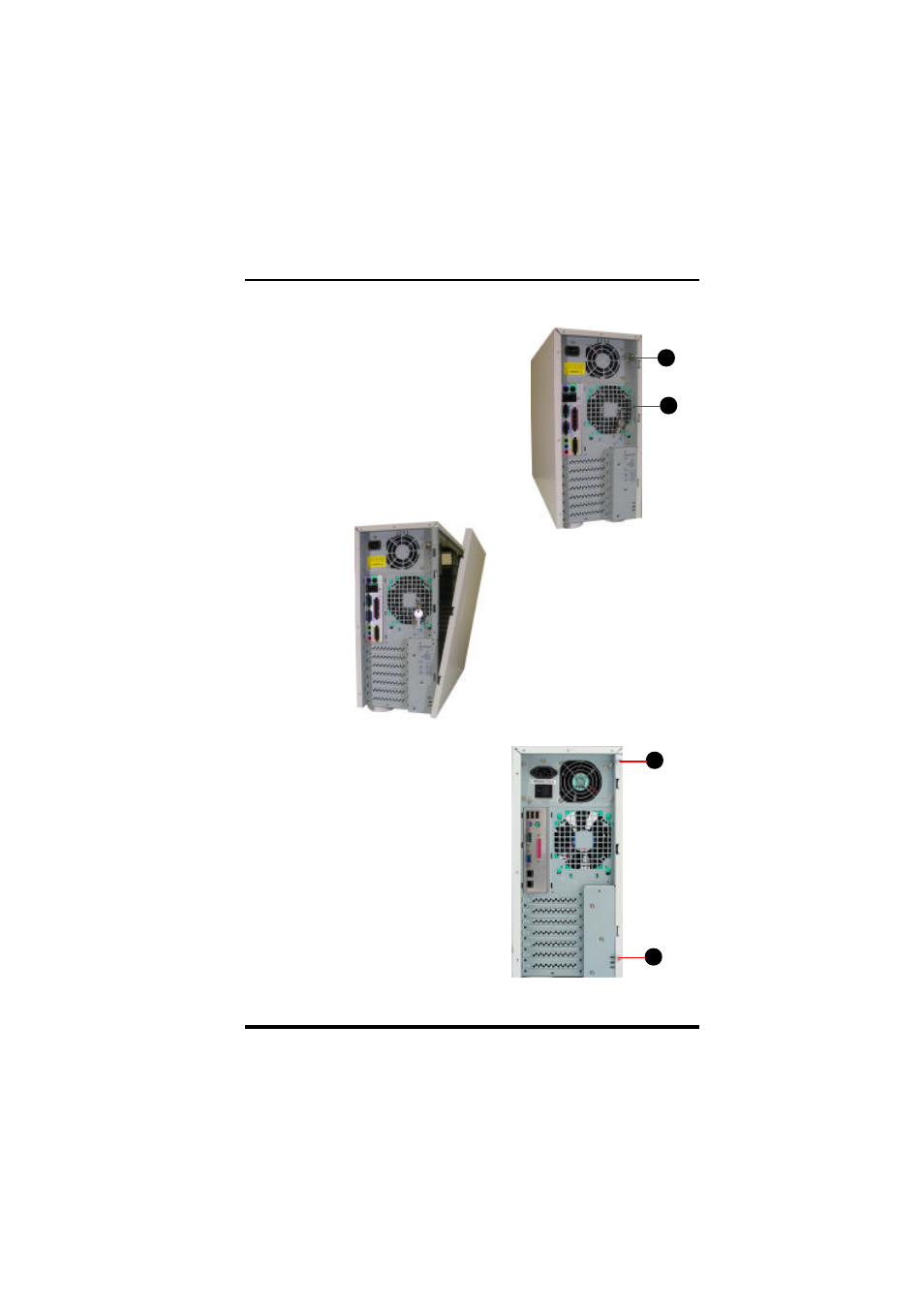

3.3 Removing the side cover
I. SR209 Side Cover
1
2
1
1
Figure 3-4
Figure 3-5
Figure 3-6
II. SR105 Side Cover
Loosen the two thumbscrews(1) at
end of side cover on rear panel. (a).
Slide the side cover backward, then
upward before taking it off from the
chassis body. (b).
Unlock the keylock(1) on rear
panel. (a).
Push side cover latch(2) at upper
position. (b).
Slide the side cover backward,
then upward before taking it off
from the chassis body. (c).
