BRAY Series 70 Servo Pro
Operation and Maintenance Manual
2.5 P
reVious
r
eVisions of
s
erVo
P
ro
The previous version of Servo Pro (Revision D) has
a different physical layout and configuration switch
arrangement than Revision F.
Revision D does not include terminals for wiring the
Local Control Box, or for Torque Switches, or for wiring
the Anti-Condensation Heater.
notice
The third character in the serial number indicates the
Revision Level of the Servo Pro.
There are two very distinct differences between Revision
D and F: (a) the Configuration switch arrangement, and
(b) the physical layout of the PCB. Please be sure to
refer to the images below, and or the serial number on
the unit to determine the Revision before attempting to
set the Configuration switches
f

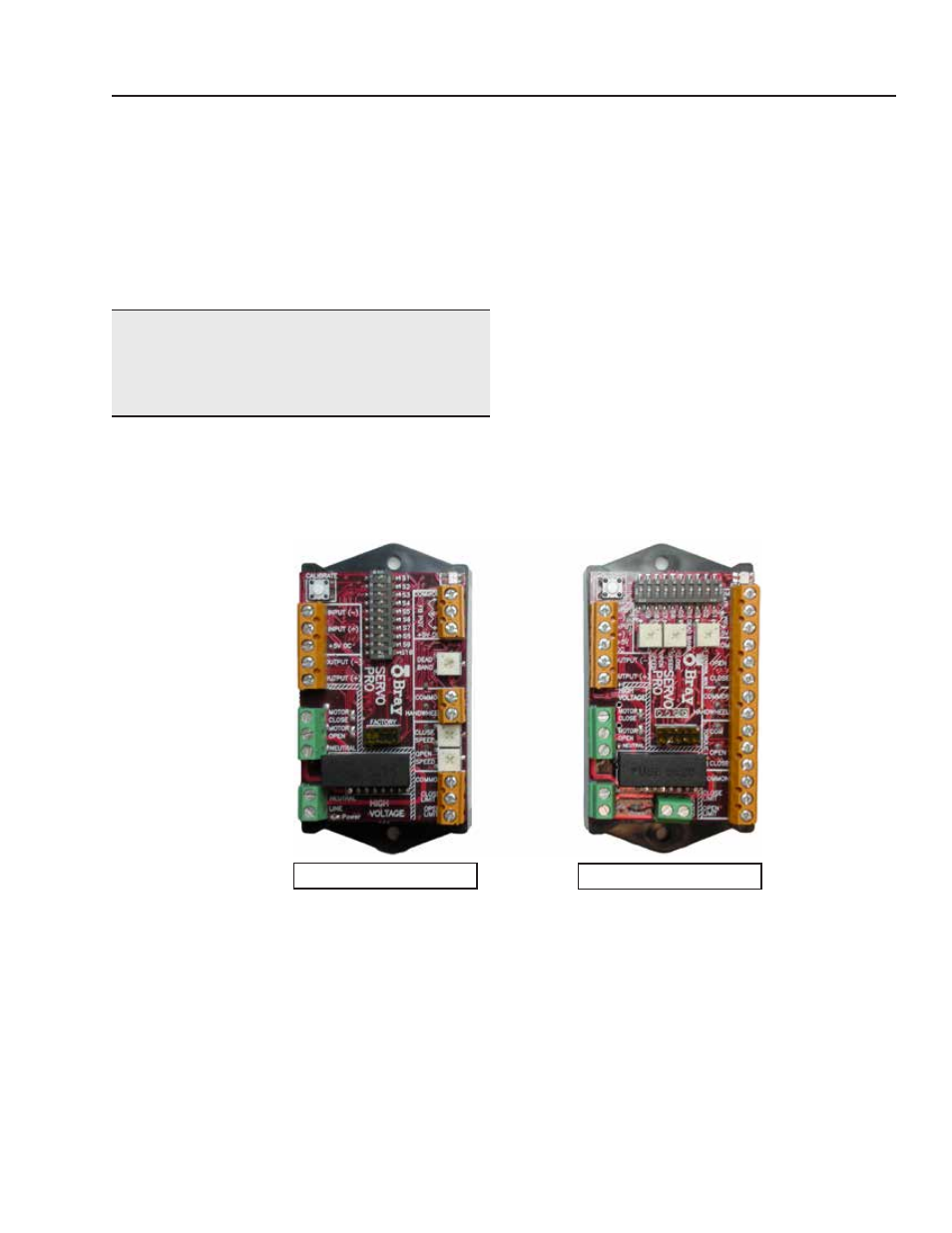

igure
3: P
HotograPHic
c
omParison of
s
erVo
P
ro
r
eVision
d
and
r
eVision
f
s
erVo
P
ro
r
eVision
d s
erVo
P
ro
r
eVision
f
