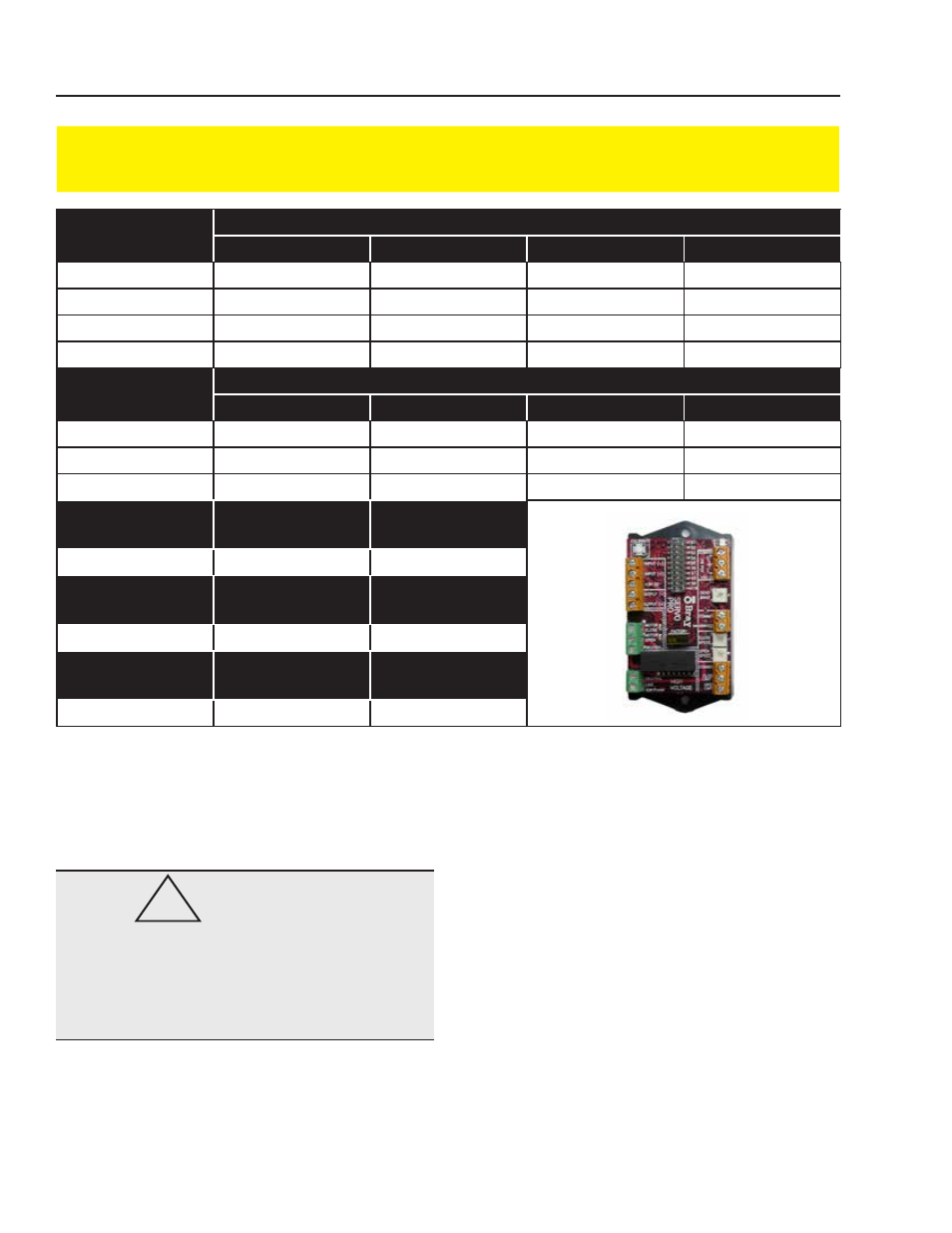

BRAY Series 70 Servo Pro
Operation and Maintenance Manual
Switch
Command Input
4-20 mA DC
0-5 VDC
0-10 VDC
2-10 VDC
1
On
Off
Off
Off
2
Off
Off
On
On
3
Off
Off
Off
On
10
Off
On
On
On
Output
4-20 mA DC
0-5 VDC
0-10 VDC
2-10 VDC
4
On
Off
Off
N/A
5
Off
On
On
N/A
6
Off
On
On
N/A
Forward
Acting
Reverse
Acting
7
Off
On
Fail in
Last
Fail
Enable
8
Off
On
Fail
Close
Fail
Open
9
Off
On
t
able
2: c
onfiguration
s
WitcH
c
Hart
for
s
erVo
P
ro
r
eVision
d
3.0 Q
uick
s
etuP
i
nstructions
Warning
Do not connect the electric power supply until instructed
to do so.
Refer to the Configuration Switch charts and
descriptions in Sections 2.1, 2.2 and 2.3 when
performing the Quick Setup.
A. Set the Command Signal Input configuration.
B. Set the Feedback Output Signal configuration.
C. Select the Operating Mode (Forward Acting or
Reverse Acting)
D. Select Fail Enable or Fail in Last Position
a. If Fail Enable is selected, then select Fail Open
or Fail Close with Switch 9
b. If Fail Enable is not selected, the actuator will Fail
in Last Position
!
NOTE: The following chart is for configuration of an older model Servo Pro (Rev. D). Please
verify that the model you are using is the same model before consulting this chart.
