**: External totalize mode: Press this key to reset and resume event counter
*** models 4084AWG and 4086AWG only
Function/Mode Keys:
Key name Main Function
Secondary
Function
Secondary
Function for
Counter Mode
Unit Entry
Freq./Period
Toggle between
Frequency &
Period.
Enable Sine Wave Not Available Not Available
Ampl./Pulse
width
Amplitude Select.
Enable Square
Wave.
Not Available Not Available
FSK/PSK
FSK/PSK
Function Select Enable Triangle
Wave
Not Available Not Available
Menu Menu Selection
Enable positive
ramp
Not Available Not Available
FM Enable FM mode
Enter Storage
menu Attenuation
Selection
ms, mVpp
AM Enable AM mode Enter Recall menu Low Pass Select MHz, Vrms
Sweep
Enable Sweep
mode Enter Counter
Mode Freq. Meas./
Totalize Enable
kHz, mVrms
Burst
Enable Burst
mode
DC Offset Select Gate Select Hz, dBm
Other Keys:
Key Name Main Function Other Function
Output Main OUTPUT signal On/Off
Generate single trigger in sweep and
burst mode
Shift Select secondary function Enter units in s, Vpp, N

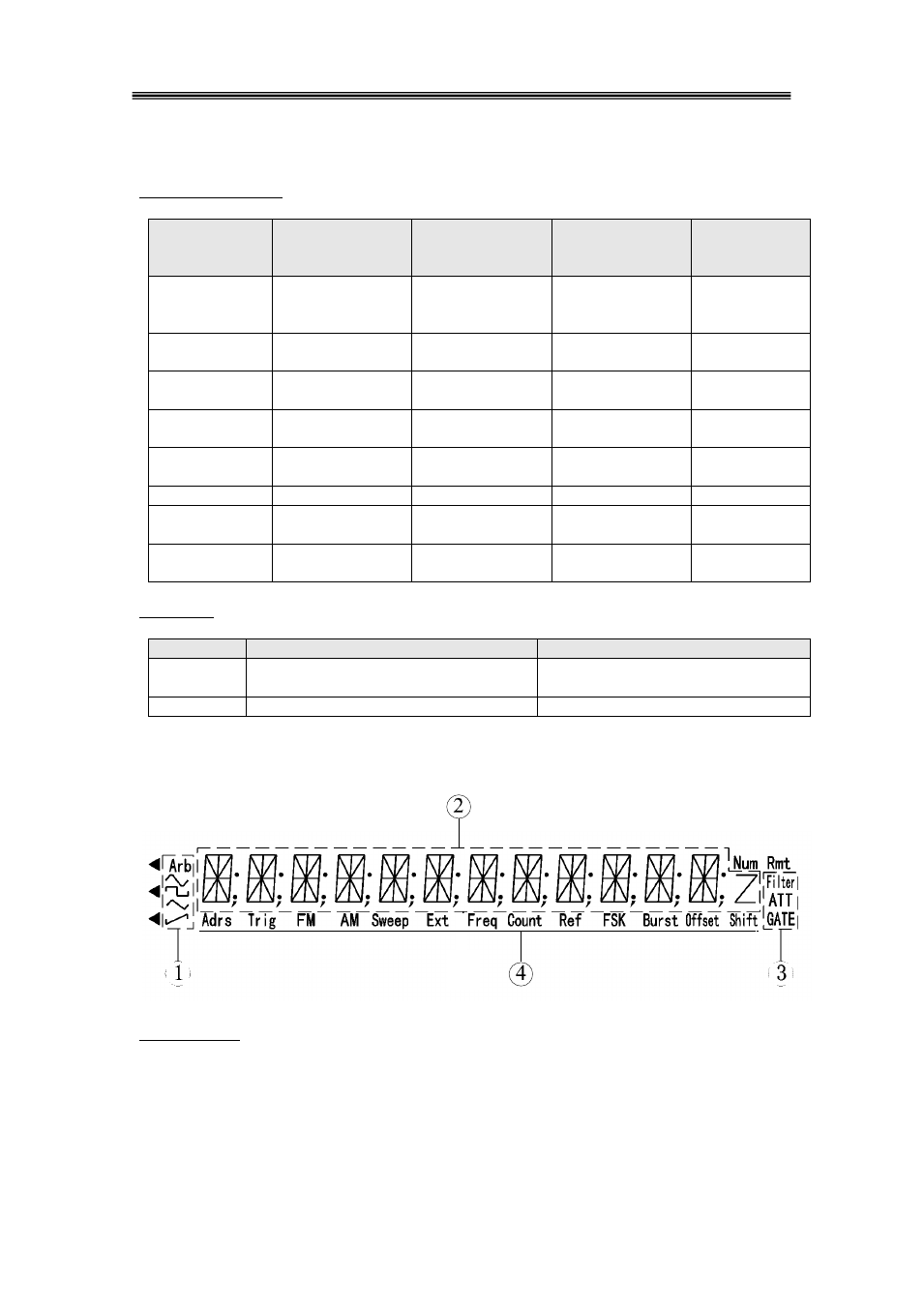

3.1.2 Display Annunciators:
Display areas:
① Waveform Indication
② Main Alphanumeric Display
③ Frequency Measurement/Totalize Settings
④ Instrument states
