Atec Flir-T440-wifi - Manual (Page 48)

2,36in
60mm
1,38in
35mm
1,62in
41,2mm
4,44in
112,8mm
1,22in 31mm
Lens support
optional
7,4in
188mm
0,55in 14mm
2,68in 68mm
3,55in 90,1mm
Camera with Lens IR f=4 mm (90°) incl support
Sheet
Drawing No.
Size
Check Drawn by
Denomination A3
2(7)
T127604

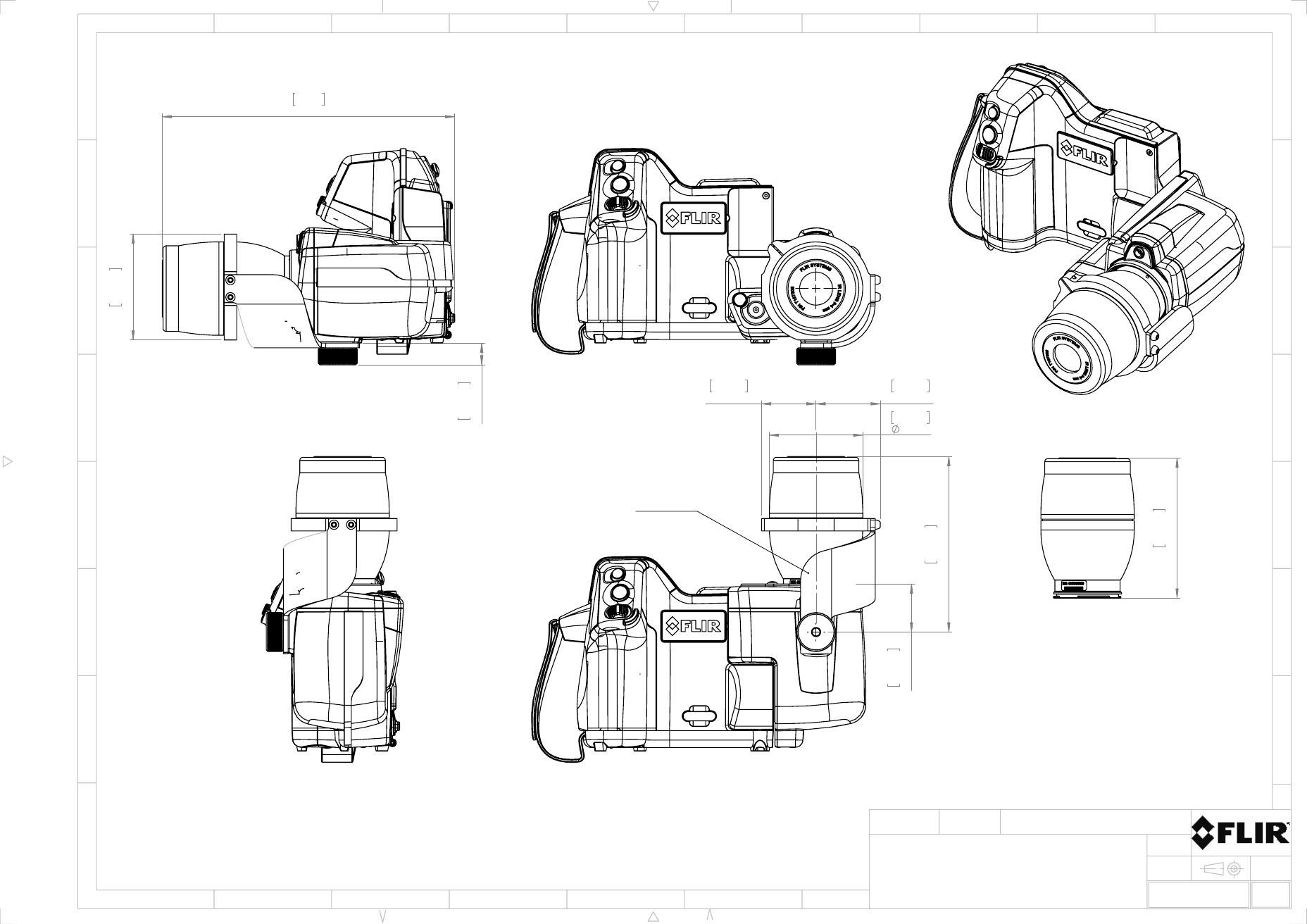

Basic Dimensions FLIR T4xx
JOTA 2012-06-07 R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 3 2 5 4
C
F
B
D
G
E
A
6
Size
A
1:2
Scale
