Optional Accessories

P/N: 62101-0301

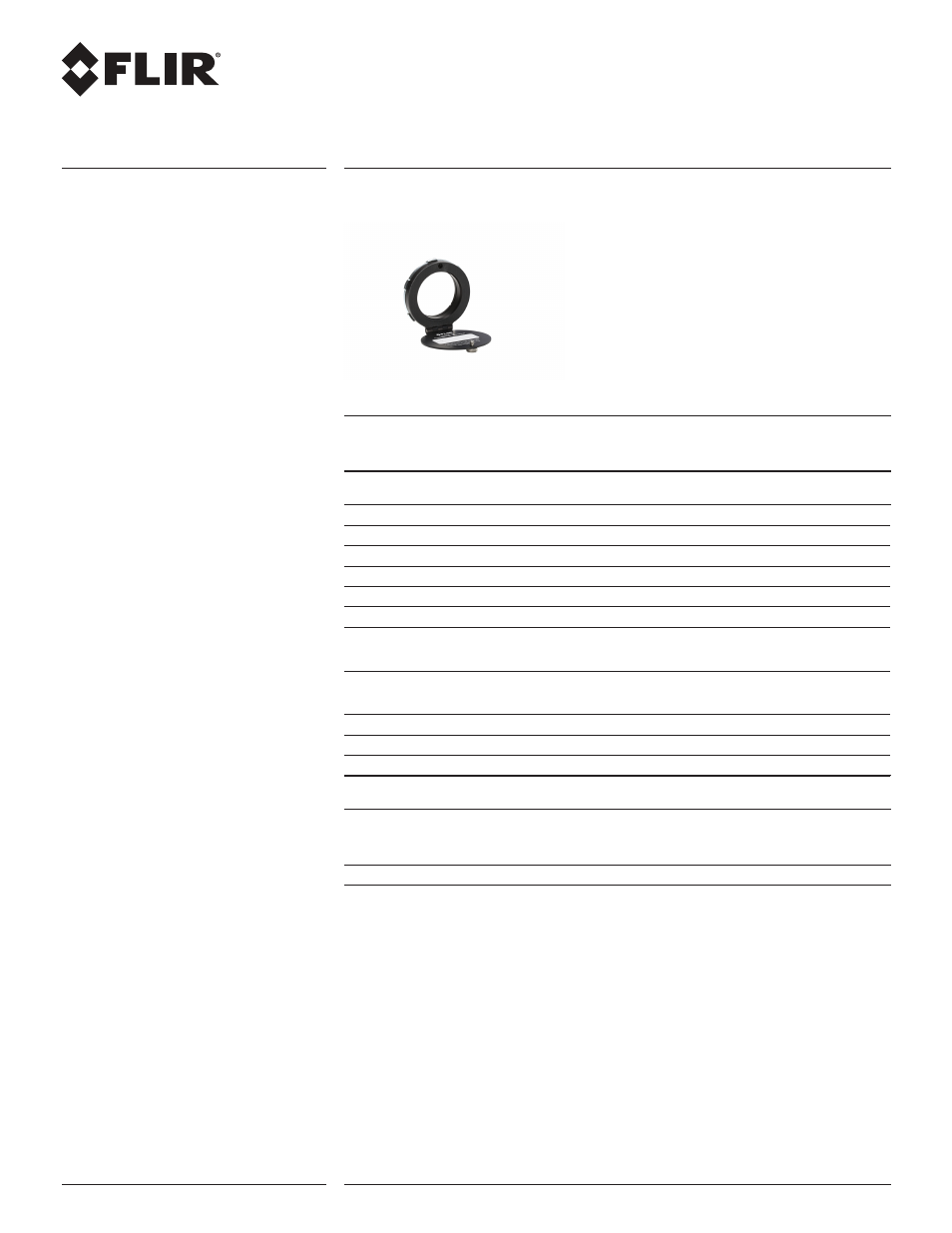

19252-100; IR Window 4 in.

General description

This device is a viewport which consist of a crystal "glass" window, mounted in an aluminum frame. The glass is
specially formulated to allow transmission of infrared light to allow use of infrared thermal sensing equipment without
opening the enclosure. This device is intended for installation in doors or walls of electrical enclosures without
compromising the integrity of the enclosure.

Technical data

Voltage

Any range

Environment

Indoor/outdoor type 4/12

Operating temperature range

Maximum: 260°C (500°F)

Storage temperature range

Optics, maximum: 1357°C (2474°F)

Size (L × W × H)

29.3 Ч 127 Ч 137 mm (1.15 Ч 5.01 Ч 5.37 in.)

Viewing aperture diameter

89 mm (3.50 in.)

Material

Optics: CaF2 (Calcium Fluoride Crystal)
Body: Anodized aluminum
Hardware: steel

Comments to physical data

Required hole diameter, nominal: 114.3 mm (4.5 in.)
Greenlee Punch: 742BB
Maximum pullout strength: 1678 kg (3700 lb.)

Waveband

Broadband IR: short-, mid-, and longwave

Visible light spectrum

Yes

Certification

UL, IP67, NEMA Type 4/12, CSA

Shipping information

•

IR window

•

Case

•

Mounting instruction

•

Additional safety screw
