Standard absolute SSB phase noise (dBc/Hz, CW, at 20 kHz offset) () = typical 1
5 MHz to < 250 MHz –129 (–133)
250 MHz –140 (–143)
500 MHz –135 (–139)
1 GHz –131 (–134)
2 GHz –124 (–127)
3 GHz –123 (–127)
4 GHz –118 (–122)
6 GHz –116 (–121)
Option UNX absolute SSB phase noise (dBc/Hz, CW, at 20 kHz offset) () = typical 1
5 MHz to < 250 MHz –140 (–143)
250 MHz –144 (–150)
500 MHz –143 (–150)
1 GHz –141 (–146)
2 GHz –135 (–141)
3 GHz –131 (–137)
4 GHz –118 (–122)
6 GHz –117 (–121)
Option UNY absolute SSB phase noise (CW) () = measured 1
Frequency 1 Hz 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz
100 MHz (–91) (–113) (–124) (–137) (–142) (–142)
249 MHz (–85) –93 (–110) –103 (–118) –130 (–137) –139 (–142) –138 (–142)
250 MHz (–85) –96 (–110) –104 (–118) –127 (–139) –144 (–150) –147 (–152)
500 MHz (–74) –89 (–100) –98 (–109) –125 (–139) –139 (–149) –145 (–149)
1 GHz (–70) –87 (–97) –93 (–106) –123 (–136) –141 (–146) –140 (–143)
2 GHz (–65) –79 (–90) –85 (–101) –114 (–131) –135 (–140) –134 (–137)
3 GHz (–61) –74 (–88) –81 (–98) –112 (–128) –132 (–138) –131 (–135)
4 GHz (–61) –73 (–84) –79 (–95) –110 (–124) –130 (–134) –127 (–131)
6 GHz (–57) –69 (–81) –76 (–91) –107 (–121) –126 (-132) –125 (–129)
1. From 20 to 30 °C, excludes mechanic vibration, measured @ +10 dBm or maximum specified power, whichever is less.

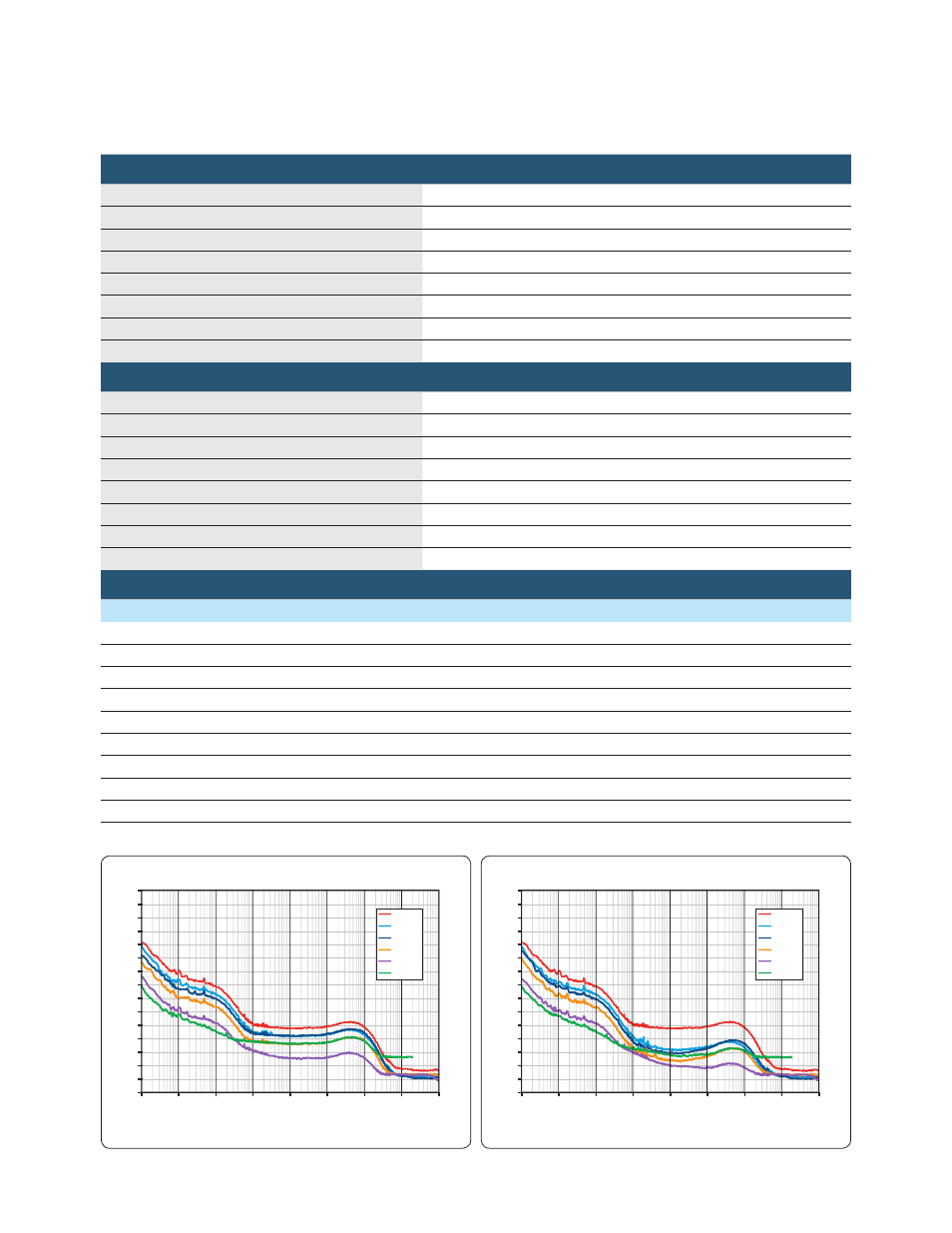

Spectral Purity Specifications
- 170
- 160
- 150
- 140
- 130
- 120
- 110
- 100
- 90
- 80
- 70
- 60
- 50
- 40
- 30
- 20
Measured standard phase noise CW mode
1 Hz 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz, 10 MHz 100 MHz
L(f) [dBc/Hz] vs. frequency
6 GHz
3 GHz
2 GHz
1 GHz
250 MHz
100 MHz
- 170
- 160
- 150
- 140
- 130
- 120
- 110
- 100
- 90
- 80
- 70
- 60
- 50
- 40
- 30
- 20
Measured Option UNX phase noise CW mode
1 Hz 10 Hz 100 Hz 1 kHz 10 kHz 100 kHz 1 MHz, 10 MHz 100 MHz
L(f) [dBc/Hz] vs. frequency
6 GHz
3 GHz
2 GHz
1 GHz
250 MHz
100 MHz
