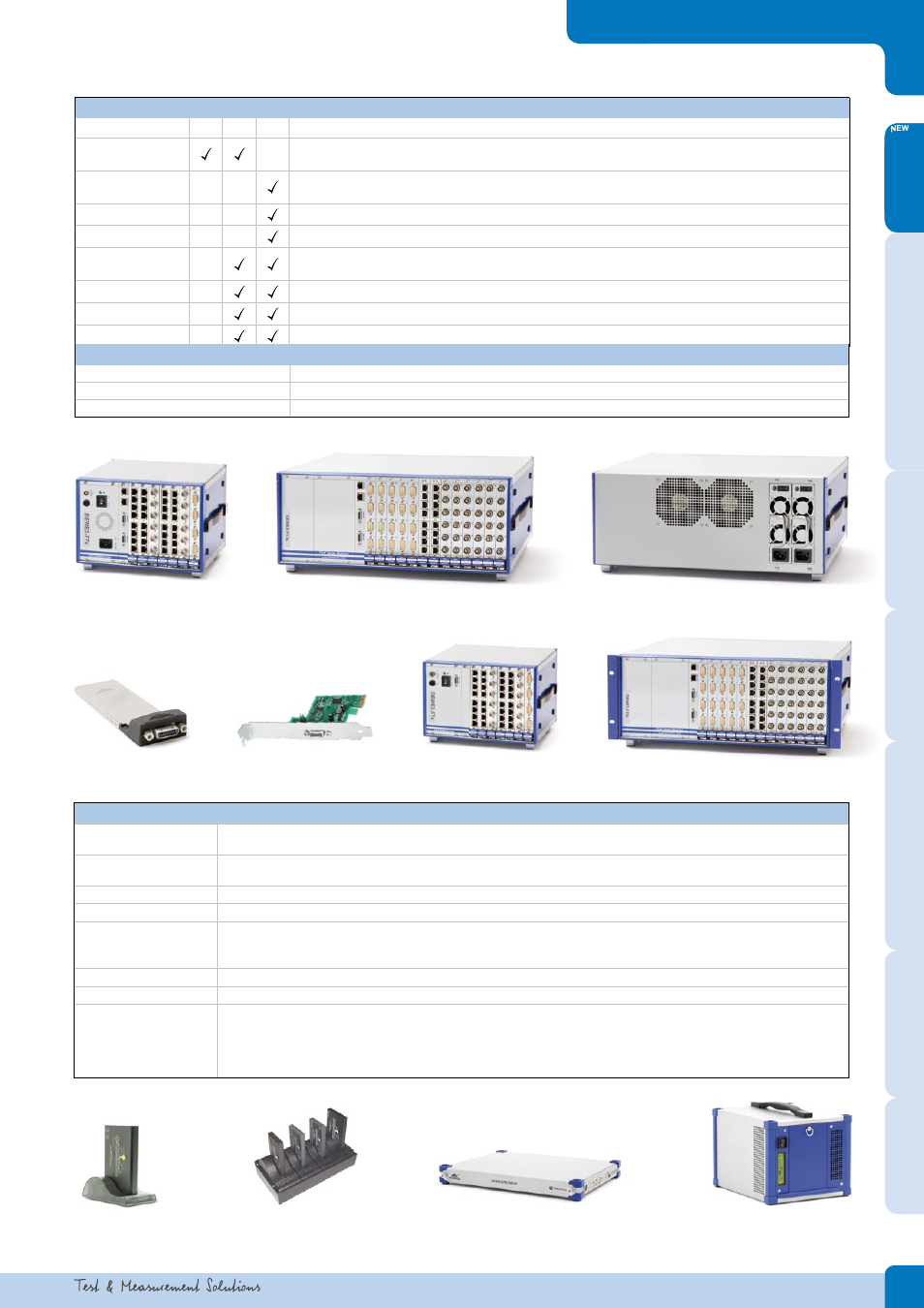

BAT-CHARGER-1 BAT-CHARGER-4 DW2-UPS-150-DC,
130 W UPS with 2 slots for batteries
23
Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2
DEWE2 Options, Upgrades, Accessories
SYSTEM OPTIONS
F4s F7s F13s
DW2-PS-DC-150
Isolated power supply 10 to 36 V
DC
(max.), 150 W, 2 m Power supply cable to cigarette lighter
Including external 115 / 230 V
AC
adaptor
DW2-PS-DC-300
Isolated power supply 10 to 36 V
DC
(max.), 300 W, 2 m Power supply cable to cigarette lighter
Including external 115 / 230 V
AC
adaptor
DW2-PS-AC-RED Redundant 115 / 230 V
AC
power supply
DW2-F13s-MK 19“ mounting kit for the DEWE2-F13s, 4U
DW2-LINK-PCIE-2-S
Extended interfaces to enable daisy-chaining. 2 PCIe 1X interfaces and 2 SYNC interfaces.
Please order synchronization cable DW2-CBL-SYNC-xx separately!
DW2-SYNC Adds 2 TRION-SYNC-BUS interfaces. Please order synchronization cable DW2-CBL-SYNC-xx separately
DW2-CBL-SYNC-03 DEWE2 SYNC-cable with RJ45 plugs, 3 m
DW2-CBL-SYNC-07 DEWE2 SYNC-cable with RJ45 plugs, 7 m
UPGRADES
LINK-HOST-UP-EX34-PCIE
Changes the standard ExpressCard-34 to a PCI Express 1X host card
LINK-HOST-PCIE Additional PCI Express 1X host card, needs a free PCI Express slot in host unit
LINK-HOST-EX34 Additional ExpressCard-34 host card, for laptop with ExpressCard-34 slot
ACCESSORIES
DW2-CBL-POW-B-2
2 male banana plugs to DC power supply input of DEWE2 system. Applicable to DEWE2-A4, DEWE2-M4, DEWE2-M4s,
DEWE2-M7s and DEWE2-F4s / -F7s with option DW2-PS-DC
DW2-UPS-150-DC
External 130 W UPS and multi-battery charger with isolated 10 to 36 V
DC
(max.) input range. 2 slots for BAT-95WH batteries,
2 batteries included, cable set included. Longer cables for flexibe use of DW2-UPS-150-DC optionally available
DW2-UPS-150-DC-CBL-2 2 m RS-232 cable and DC power cable (terminated with Lemo FGJ.2B.303)
BAT-95WH
Lithium-Ion battery, 14.4 V, 95 Wh, max. 8 A
DEWE-UPS-300-DC
External 300 W UPS and multi-battery charger with isolated 10 to 36 V
DC
(max.) input range for powering systems with wide
range DC input, output of DEWE-UPS-300-DC is 12 to 16 V
DC
when running from batteries and 24 V
DC
when powered from
DC, 4 slots for BAT-95WH batteries, 2 batteries included
BAT-CHARGER-1 Desktop battery charger for 1 battery, incl. external AC adaptor
BAT-CHARGER-4 Desktop battery charger for 4 batteries, incl. external AC adaptor
DE-POWERBOX-12
Power distribution box with 12 connectors for DC power with voltage meter
Input via 5 m connection cable 2x 10 mm² with 50 A fuse, terminated with 2 ring tongues,
2nd input for a buffer battery (from customer) to achieve UPS function
Outputs: 1x Lemo EGG.3B.302 socket, 1 pair of high-current banana sockets, 2 cigarette lighter sockets, 2x Lemo
EGG.2B.302 sockets, 2x Lemo EGG.1B.302 sockets, 4 pairs of banana sockets
DEWE2-F7s with option
DW2-LINK-PCIE-2-S
LINK-HOST-EX34
ExpressCard-34 host card
LINK-HOST-PCIE
ExpressCard-34 host card
DEWE2-F7s with option
DW2-PS-DC-150
DEWE2-F13s with option
DW2-LINK-PCIE-2-S
DEWE2-F13s with option
DW2-PS-AC-RED
DEWE-UPS-300-DC
300 W UPS with 4 slots for batteries
DEWE2-F13s with option
DW2-F13x-MK
