SYNC
PCIe
PCIe
DEWE-818
DEWE2-F18
DEWE2-F18
DEWE2-F4s
PCIe connection up to 7 meters
PCIe connection up to 7 meters
TRION-SYNC-bus
DEWE2-A4 with option
DW2-LINK-PCIE-1-S
DEWE2-F7s with option
DW2-LINK-PCIE-2-S
11

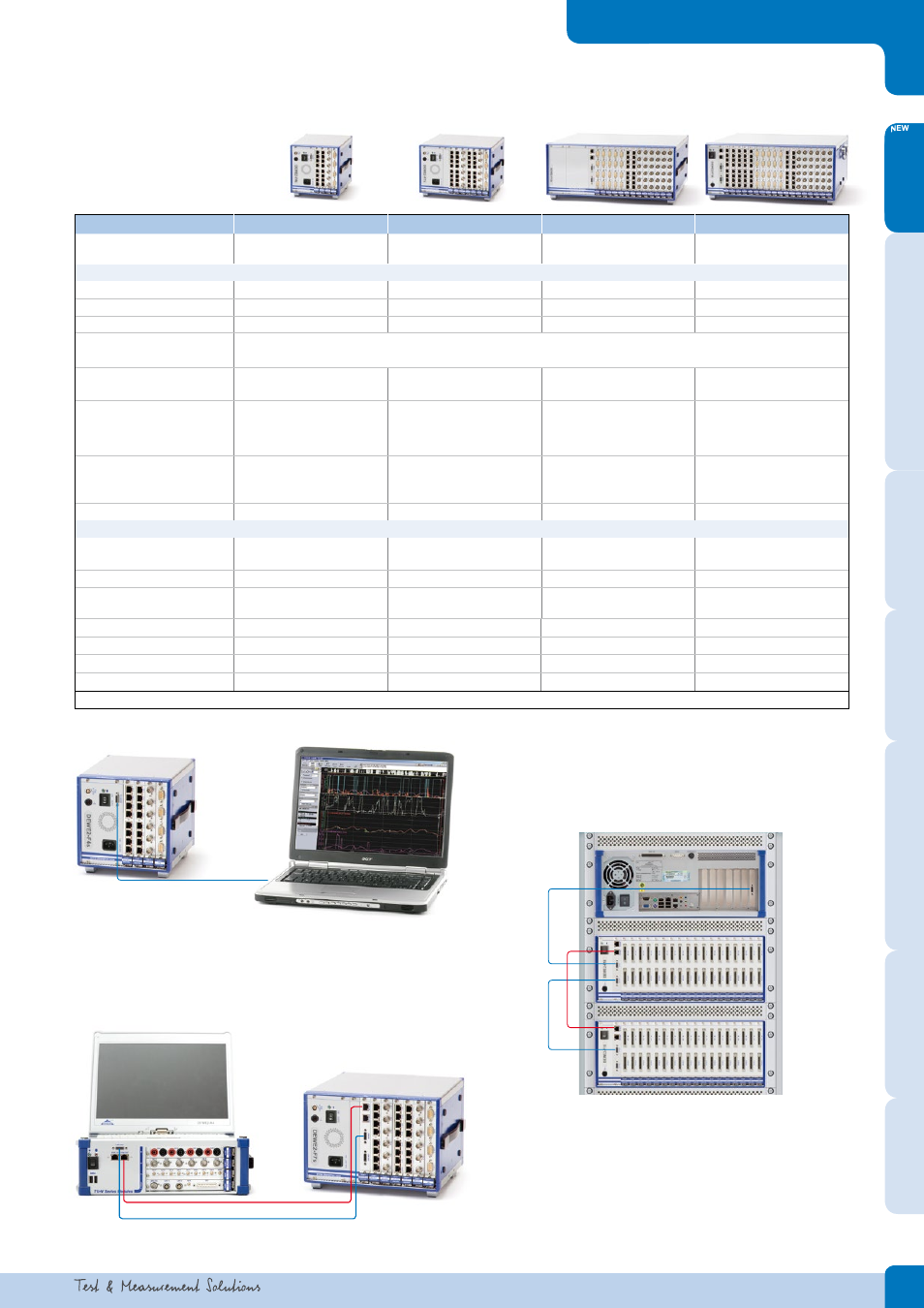

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2
DEWE2 Front-ends
DEWE2-F4s DEWE2-F7s DEWE2-F13s DEWE2-F18
Slots for TRION™
acquisition modules
4 7 13 18
Main system 1)
Main frame bandwidth 120 MB/sec 120 MB/sec 120 MB/sec 120 MB/sec
Upstream interface (to host) PCI Express X1 PCI Express X1 PCI Express X1 PCI Express X1
Downstream interface - optional optional PCI Express X1
Host PC interface
Express card 34, 1 m cable (optional 3 m or 7 m)
optional PCI Express X1 card
Power supply standard:
rated (max.)
100 to 240 V
AC
(90 to 264 V
AC
) 100 to 240 V
AC
(90 to 264 V
AC
) 100 to 240 V
AC
(90 to 264 V
AC
) 100 to 240 V
AC
(90 to 264 V
AC
)
Optional power supply:
rated (max.)
11 to 32 V
DC
(10 to 36 V
DC
)
isolated,
optional with buffer battery
for ~ 10 min.
11 to 32 V
DC
(10 to 36 V
DC
)
isolated,
optional with buffer battery
for ~ 10 min.
Redundant AC power supply Redundant AC power supply
Dimensions (W x D x H)
177 x 230 x 177mm (4 u)
(7 x 9.1 x 7 in.)
without feet
258 x 230 x 177 mm (4 u)
(10.2 x 9.1 x 7 in.)
without feet
441 x 230 x 177 mm (4 u)
(17.4 x 9.1 x 7 in.)
without feet
441 x 427 x 177 mm (4 u)
(17.4 x 16.8 x 7 in.)
without feet
Weight Typ. 3.9 kg (8.6 lb.) Typ. 4.9 kg (10.8 lb.) Typ. 8 kg (17.6 lb.) typ. 12.0 kg (26.4 lb.)
Environmental specifications
Operating temperature
0 to +50 °C, down to -20 °C
with prewarmed unit
0 to +50 °C, down to -20 °C
with prewarmed unit
0 to +50 °C, down to -20 °C
with prewarmed unit
0 to +50 °C, down to -20 °C
with prewarmed unit
Storage temperature -20 to +70 °C -20 to +70 °C -20 to +70 °C -20 to +70 °C
Humidity
10 to 80 % non cond.,
5 to 95 % rel. humidity
10 to 80 % non cond.,
5 to 95 % rel. humidity
10 to 80 % non cond.,
5 to 95 % rel. humidity
10 to 80 % non cond.,
5 to 95 % rel. humidity
Max. altitude 2000 m (6560 ft) 2000 m (6560 ft) 2000 m (6560 ft) 2000 m (6560 ft)
Sine vibration (EN 60068-2-6) 20 m/s² 20 m/s² 20 m/s² 20 m/s²
Shock (EN 60028-2-27) 30 g 30 g 15 g 15 g
Random vibration (EN 60721-3-2) Class 2M3 Class 2M3 Class 2M2 Class 2M2
1) Please find current specifications in the latest price list
DEWE2 F ront-ends
F-series
