Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

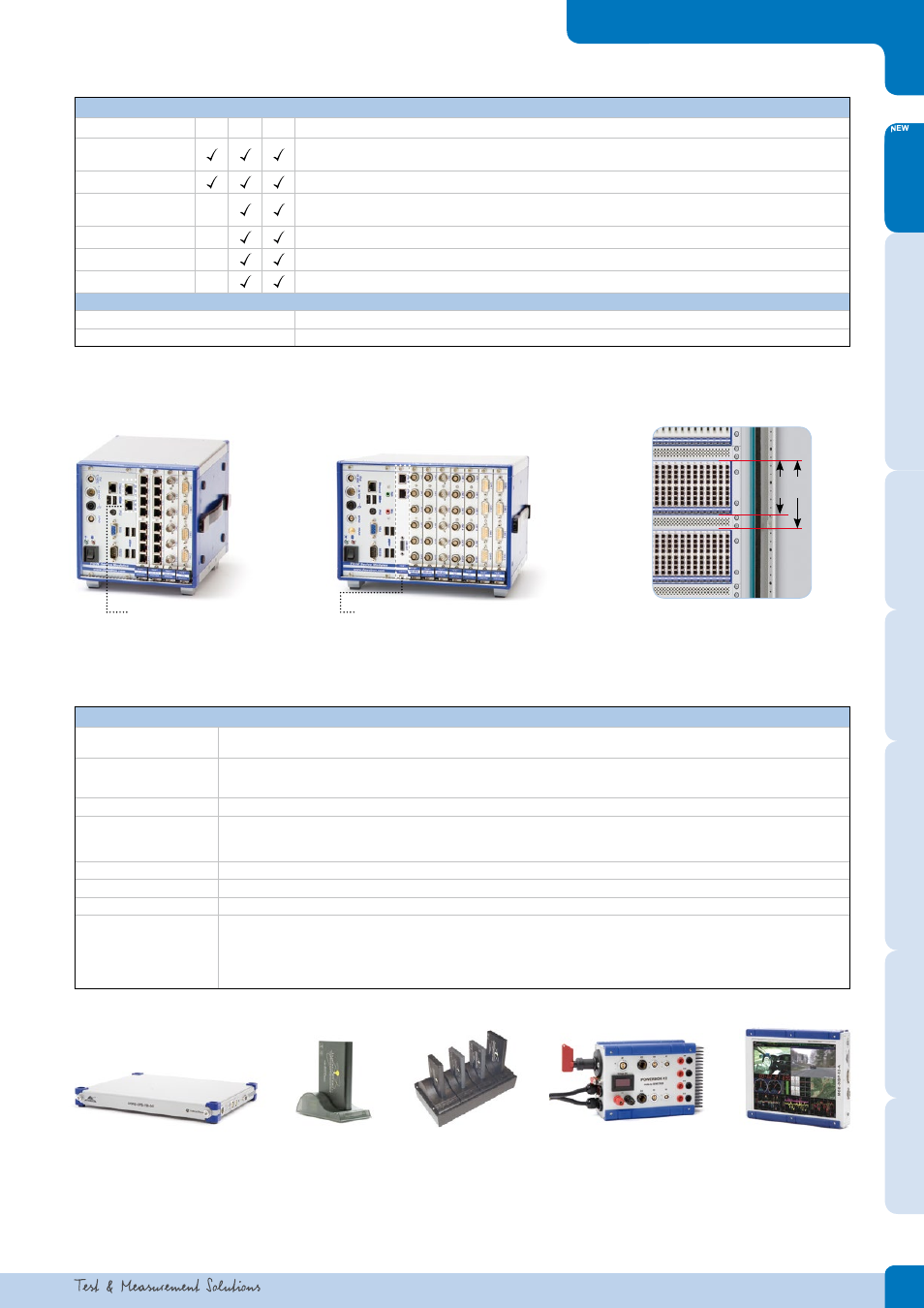

DEWE2 Options, Upgrades, Accessories
SYSTEM OPTIONS
M4s M7s M13s
DW2-PS-DC-BUFFER
Adds an internal battery and bridges outages of the supply voltage up to approx. 5 - 10 minutes
No status information is supplied.
DW2-LAN-2 Adds two additional 1 GBit LAN interfaces. Replaces the WLAN and AUDIO interfaces
DW2-LINK-PCIE-1-S
Adds 1 PCIe interface and 2 TRION-SYNC-BUS interfaces.
Please order synchronization cable DW2-CBL-SYNC-xx separately
DW2-SYNC Adds 2 TRION-SYNC-BUS interfaces. Please order synchronization cable DW2-CBL-SYNC-xx separately
DW2-CBL-SYNC-03 DEWE2 SYNC-cable with RJ45 plugs, 3 m
DW2-CBL-SYNC-07 DEWE2 SYNC-cable with RJ45 plugs, 7 m
UPGRADES
SSD-120-240
Upgrade of 120 GB flash disk to 240 GB flash disk
SSD-120-480 Upgrade of 120 GB flash disk to 480 GB flash disk
ACCESSORIES
DW2-CBL-POW-B-2
2 male banana plugs to DC power supply input of DEWE2 system. Applicable to DEWE2-A4, DEWE2-M4, DEWE2-M4s,
DEWE2-M7s and DEWE2-F4s / -F7s with option DW2-PS-DC
DW2-UPS-150-DC
External 130 W UPS and multi-battery charger with isolated 10 to 36 V
DC
(max.) input range. 2 slots for BAT-95WH batteries,
2 batteries included, cable set included. Longer cables for flexibe use of DW2-UPS-150-DC optionally available
DW2-UPS-150-DC-CBL-2 2 m RS-232 cable and DC power cable (terminated with Lemo FGJ.2B.303)
DEWE-UPS-300-DC
External 300 W UPS and multi-battery charger with isolated 10 to 36 V
DC
(max.) input range for powering systems with wide
range DC input, output of DEWE-UPS-300-DC is 12 .. 16 V
DC
when running from batteries and 24 V
DC
when powered from
DC, 4 slots for BAT-95WH batteries, 2 batteries included
BAT-95WH Lithium-Ion battery, 14.4 V, 95 Wh, max. 8 A
BAT-CHARGER-1 Desktop battery charger for 1 battery, incl. external AC adaptor
BAT-CHARGER-4 Desktop battery charger for 4 batteries, incl. external AC adaptor
DE-POWERBOX-12
Power distribution box with 12 connectors for DC power with voltage meter
Input via 5 m connection cable 2x 10 mm² with 50 A fuse, terminated with 2 ring tongues,
2nd input for a buffer battery (from customer) to achieve UPS function
Outputs: 1x Lemo EGG.3B.302 socket, 1 pair of high-current banana sockets, 2 cigarette lighter sockets, 2x Lemo
EGG.2B.302 sockets, 2x Lemo EGG.1B.302 sockets, 4 pairs of banana sockets
BAT-CHARGER-1 BAT-CHARGER-4 DE-POWERBOX-12
DC Power distribution box
DW2-UPS-150-DC,
130 W UPS with 2 slots for batteries
DEWE2-M7s with option
DW2-LINK-PCIE-1-S
4
U
5
U
M13s installed into a 19” cabinet
5 u required (4 u = system + 1 u = cooling)
DW2-LAN-2
DEWE2-M4s with 2x
1 Gbit Ethernet option
