28 031-124-C0-004, Rev. D
2.0 Installation, continued
2.9 Battery Installation, continued
2.9.5 Battery Wiring Diagrams (UPE with Slide Tray)

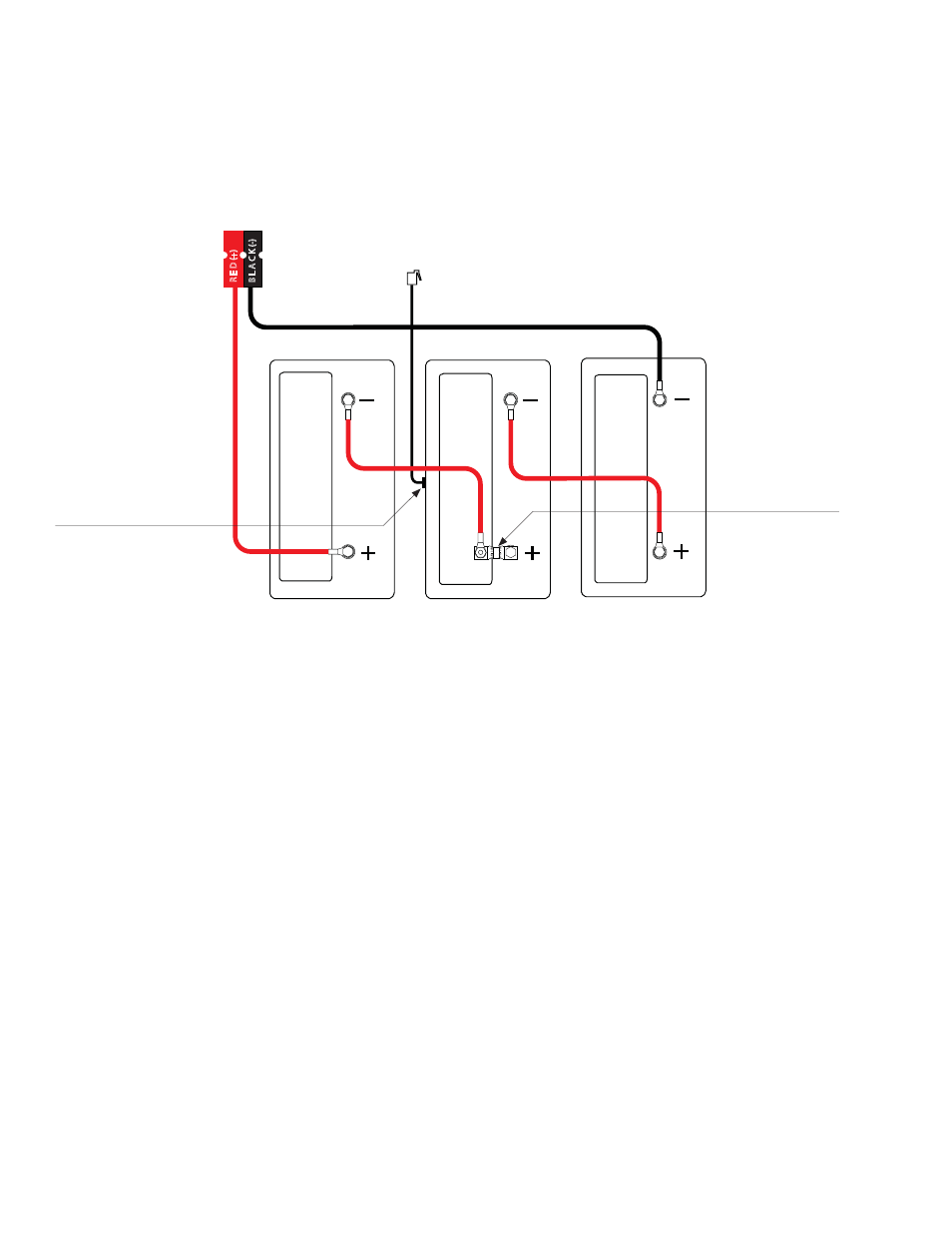

Fig. 2-9, UPE-3 Battery Wiring Diagram (for use with slide tray)
1
2 3
R E D (+) B L A C K (-)
Temperature Probe
(Connected to XM2)
In-line Fuse
(optional) RTS
(Taped to side of battery)
Battery Cable Connector
(to XM2 Power Supply)
Black (-)
Red (+)
