Table 13-1, single ip mode versus dual ip mode, 0 dual ip mode (addendum), 1 overview – Alpha Technologies DSM3 for XM3 - Technical Manual User Manual

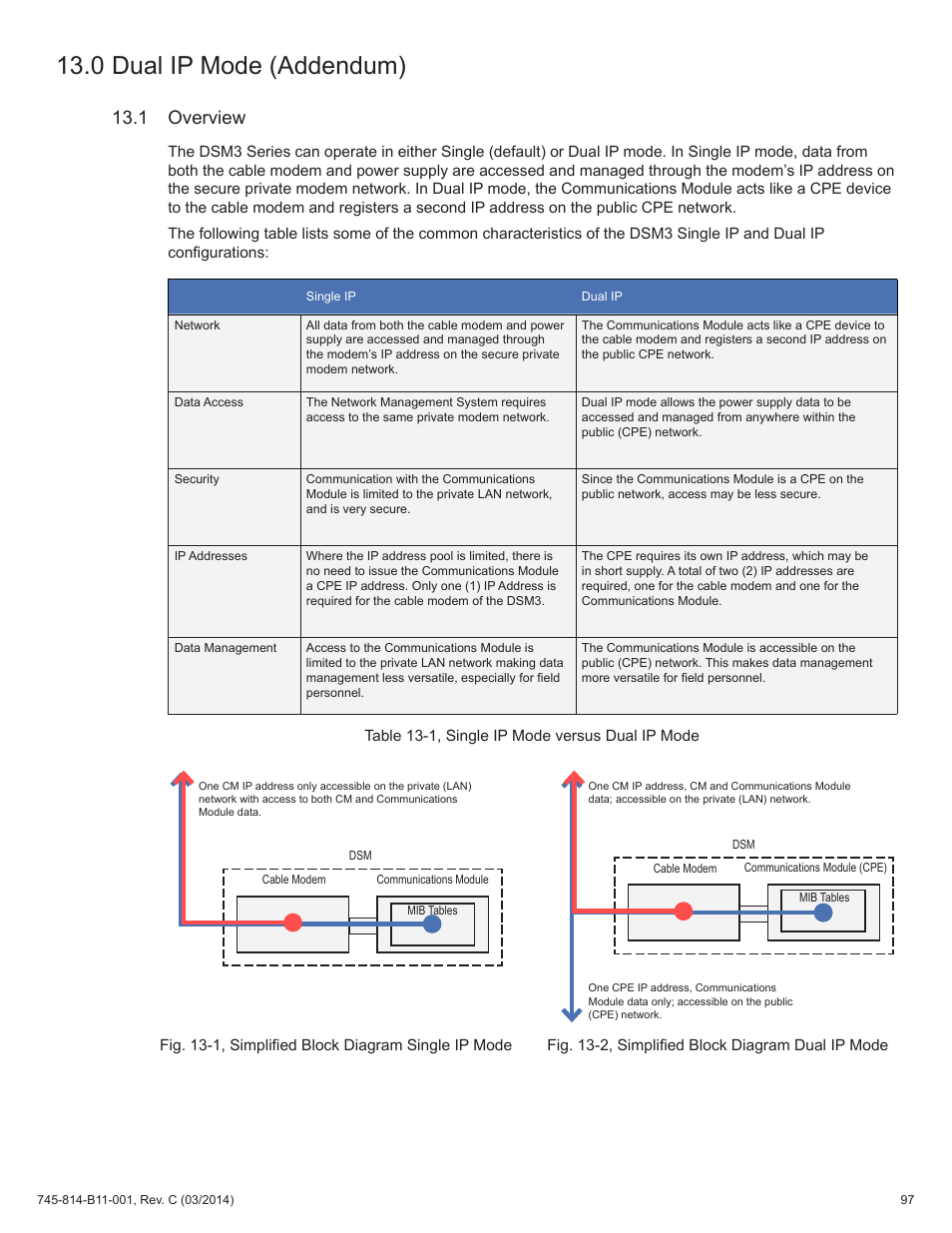

Page 97: Fig. 13-1, simplified block diagram single ip mode, Fig 13-2, simplified block diagram dual ip mode
