Page 40

745-814-B11-001, Rev. C (03/2014)

4.12 Viewing AlphaApps Information via the Web Page

The status of the optional AlphaApps Card may be viewed by navigating to the

AlphaApps selection

on the

Apps menu of the DSM3 Series Web page. Status and firmware version are typical parameters

listed for this installed component of the power supply. A

Configure/Save button is available for manually

setting the Application Clock. Refer to

Section 4.3.1, Web Interface Security Levels for User Name and

Security Password.
The Utility section of the Web page displays current AC Line Status and Utility performance status. The

utility event monitor tracks typical power events such as outages, sags, surges, and frequency in a tabular

format for ease of viewing.

4.0 Web Interface

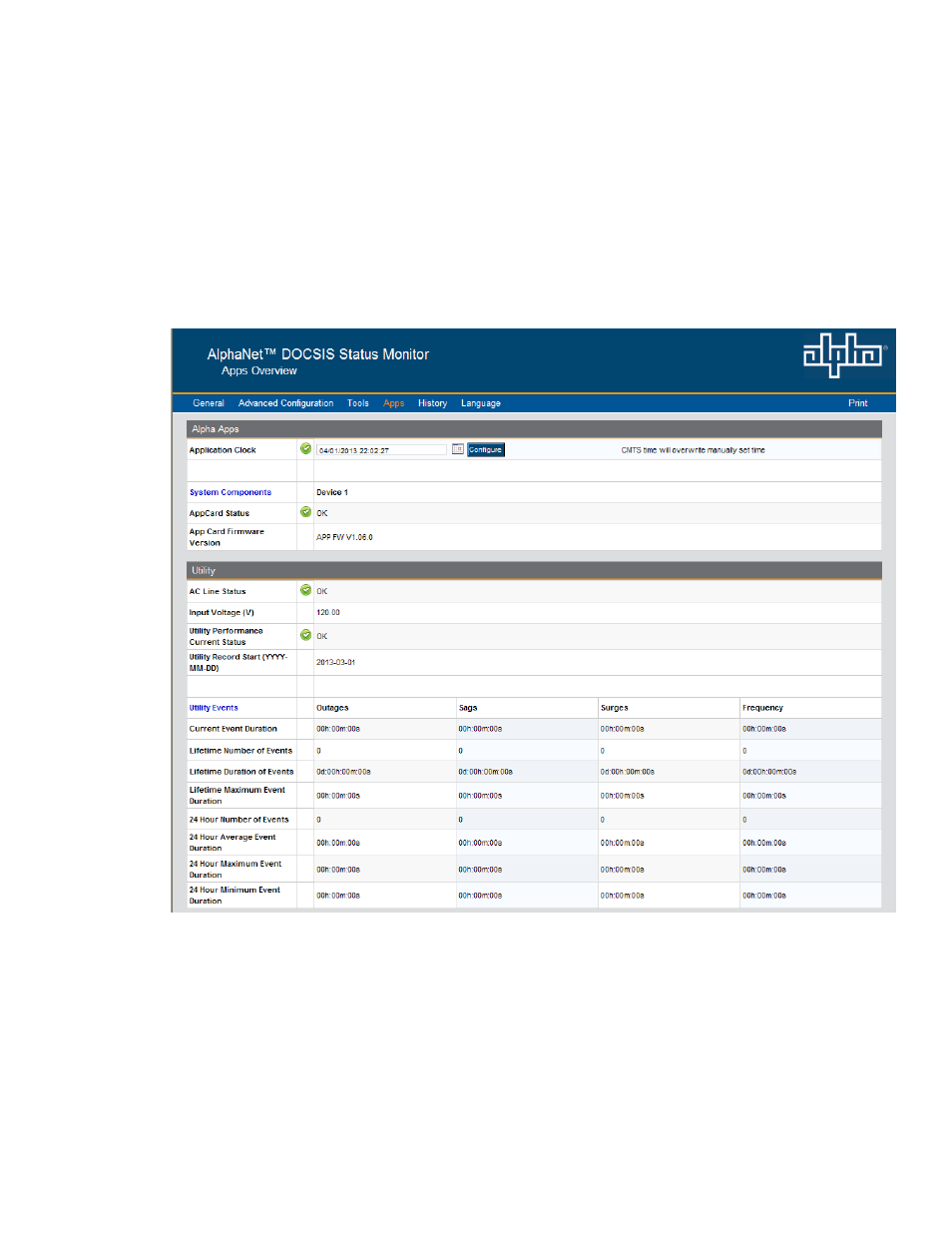

Fig. 4-26, Alpha Apps and Utility Status Parameters
