4.7

Viewing HMS Alarm Status via the Web Page

HMS alarms levels and current states may be viewed by clicking on the

HMS Alarms link on the

Advanced Configuration menu (see Figure 4-12). Parameter values cannot be edited on this Web page.

An SNMP MIB browser or status monitoring software may be used for such edits.
Alarms settings may be exported by selecting the

Export button at the bottom of the page. Alarms

settings may be distributed to other DSM3 Series units. For more details, refer to the

DSM3 Alarm

Cloning and Distribution section under Section 6.2.1, SCTE-HMS Configurable Alarms.

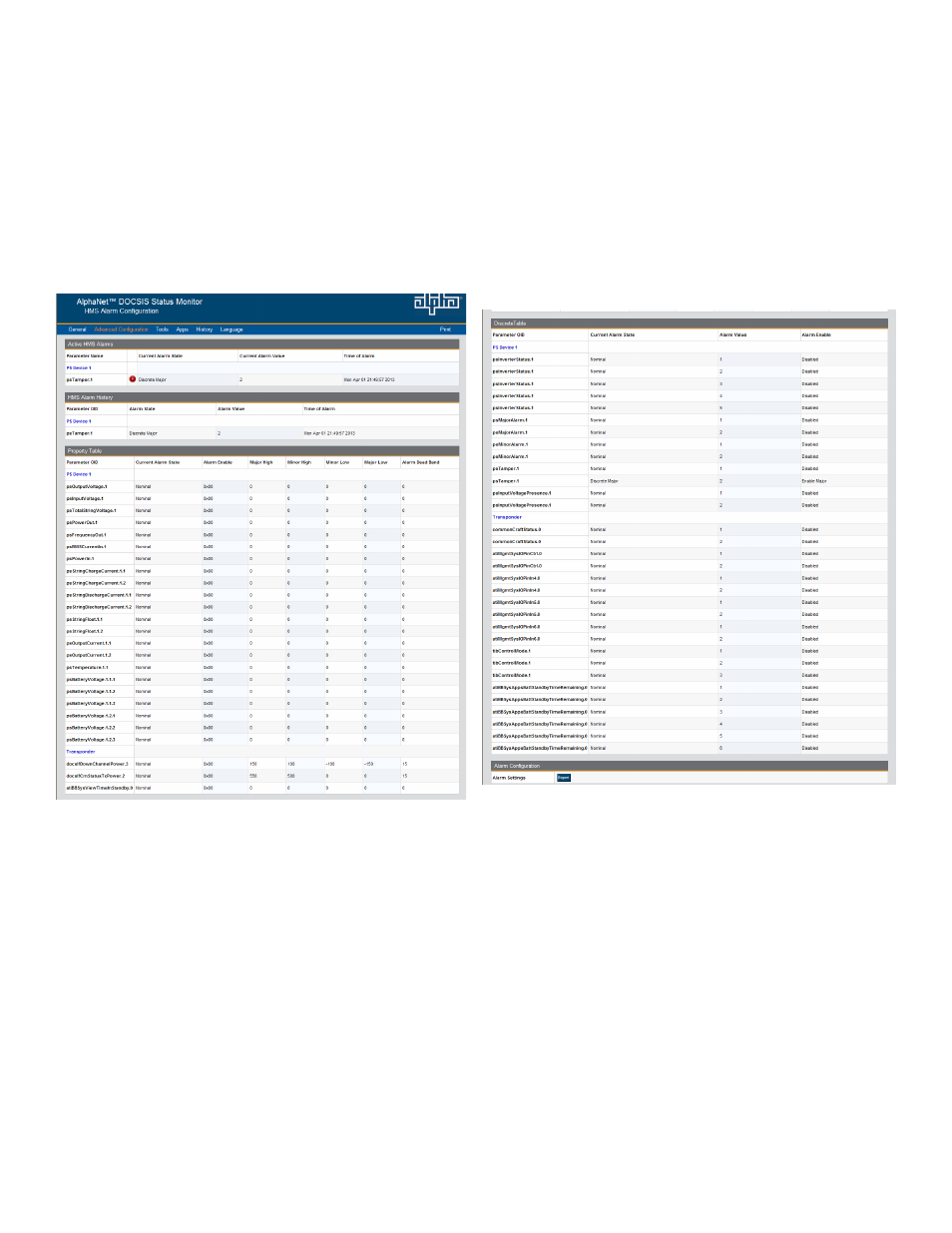

Fig. 4-12, HMS Alarm Configuration

(data values shown for illustration purposes only)

4.0 Web Interface

Refer to Table 6-3, Recommended Settings for DSM3 Series Analog Alarms, for information regarding the scaling applied to the indicated values.
