Beskrivelse og tilslutninger – ABUS FUBE50060 Secvest 2WAY Wireless Key Switch User Manual
Page 98
98
6. Beskrivelse og tilslutninger
1
Hul til vægfastgørelse
2
Kabelgennemføring
3
Printkortholder
4
Fastgørelsesskrue for printkort
5
Halvcylinder
6
Cylinderringskrue
7
Batteriholder
8
Klemmerække for 12 volt-tilslutning
9
Vægsabotagekontakt
10 Lågsabotagekontakt
11 Venstre tast
12 Højre tast
13 Venstre grøn LED
14 Højre rød LED
15 Programmeringstast
16 7-segment LED-visning

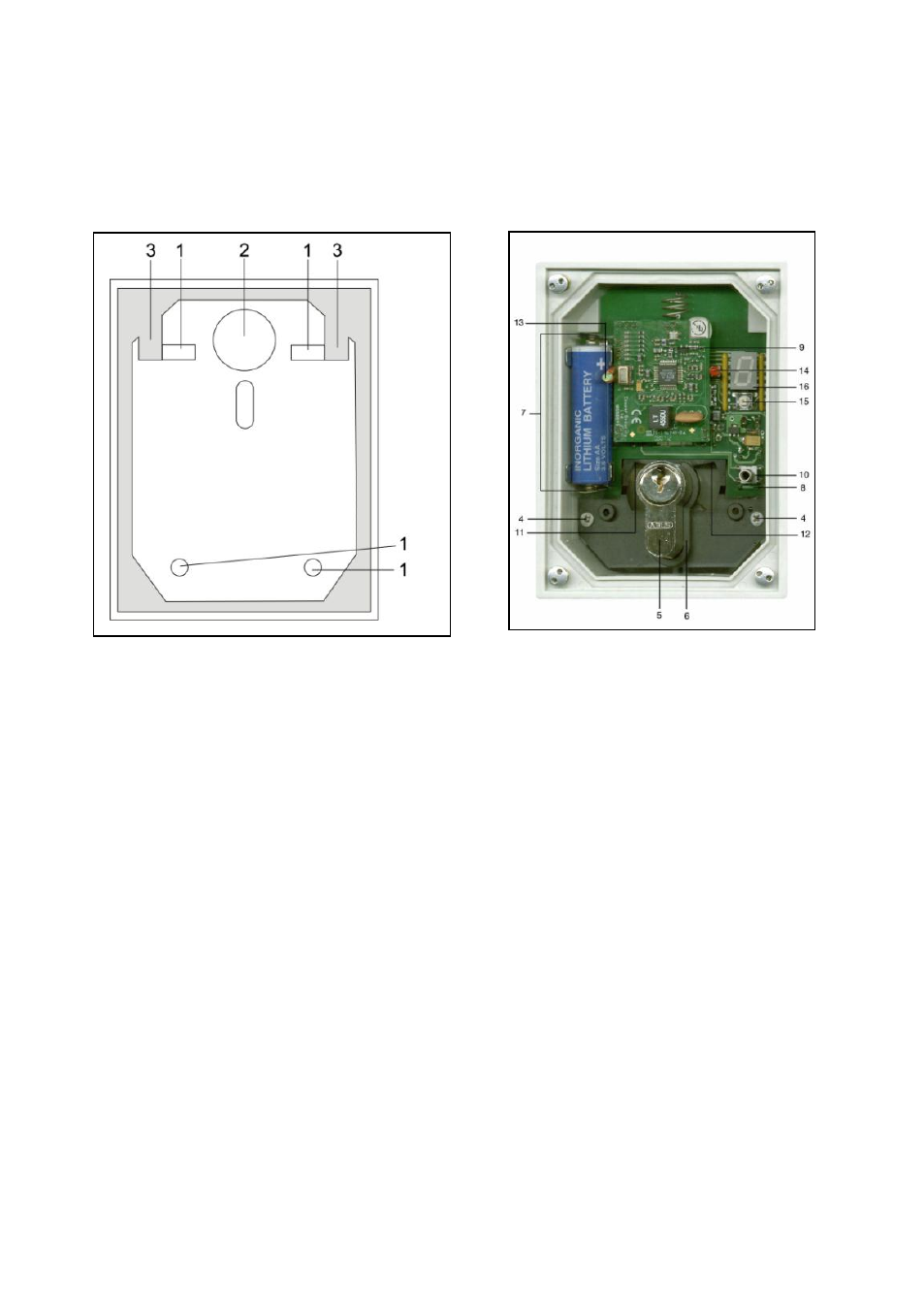

Ill.1 Kabinet uden printkort Ill.2 Kabinet åben(med printkort)
