Page 80
80
6. Beschrijving en aansluitingen
1
Opening voor wandbevestiging
2
Kabelinvoer
3
Houder voor de printplaat
4
Bevestigingsschroef voor de printplaat
5
Halfcilinder
6
Verzonken schroef
7
Batterijhouder
8
Aansluitstrip voor 12 Volt aansluiting
9
Sabotageschakelaar wand
10 Sabotageschakelaar deksel
11 Linkertoets
12 Rechtertoets
13 Groene LED links
14 Rode LED rechts
15 Programmeertoets
16 7-segment LED display

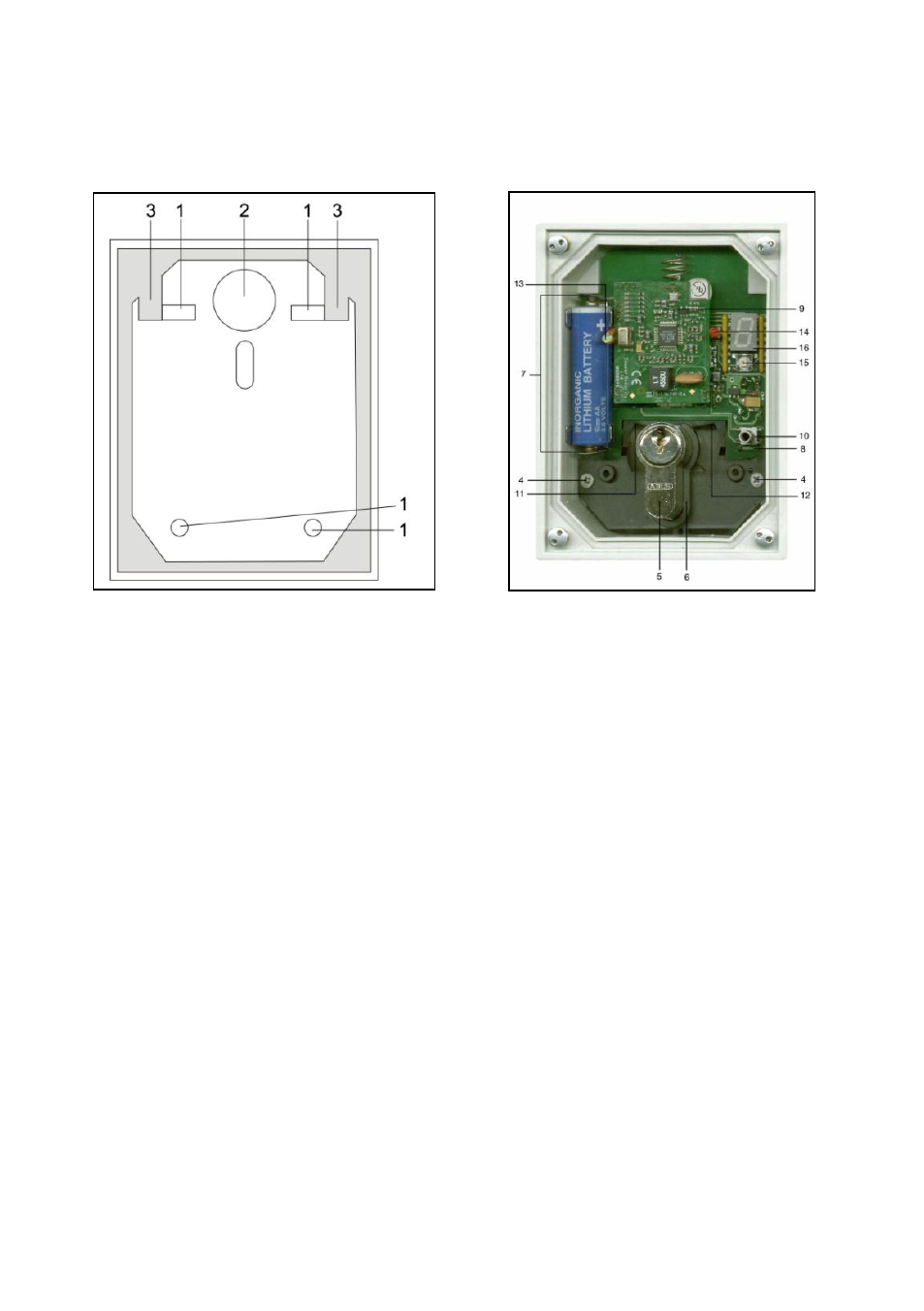

Afb. 1 Behuizing zonder printplaat Afb. 2 Behuizing open (met printplaat)
