Description and connections – ABUS FUBE50060 Secvest 2WAY Wireless Key Switch User Manual
Page 26
26
6. Description and connections
1
Opening for wall fixing
2
Cable hole
3
PCB holder
4
Fixing screw for PCB
5
Half-cylinder
6
Forend fixing screw
7
Battery holder
8
Connector strip for 12V connection
9
Wall tamper switch
10 Lid tamper switch
11 Left button
12 Right button
13 Left green LED
14 Right red LED
15 Program button
16 7-segment LED display

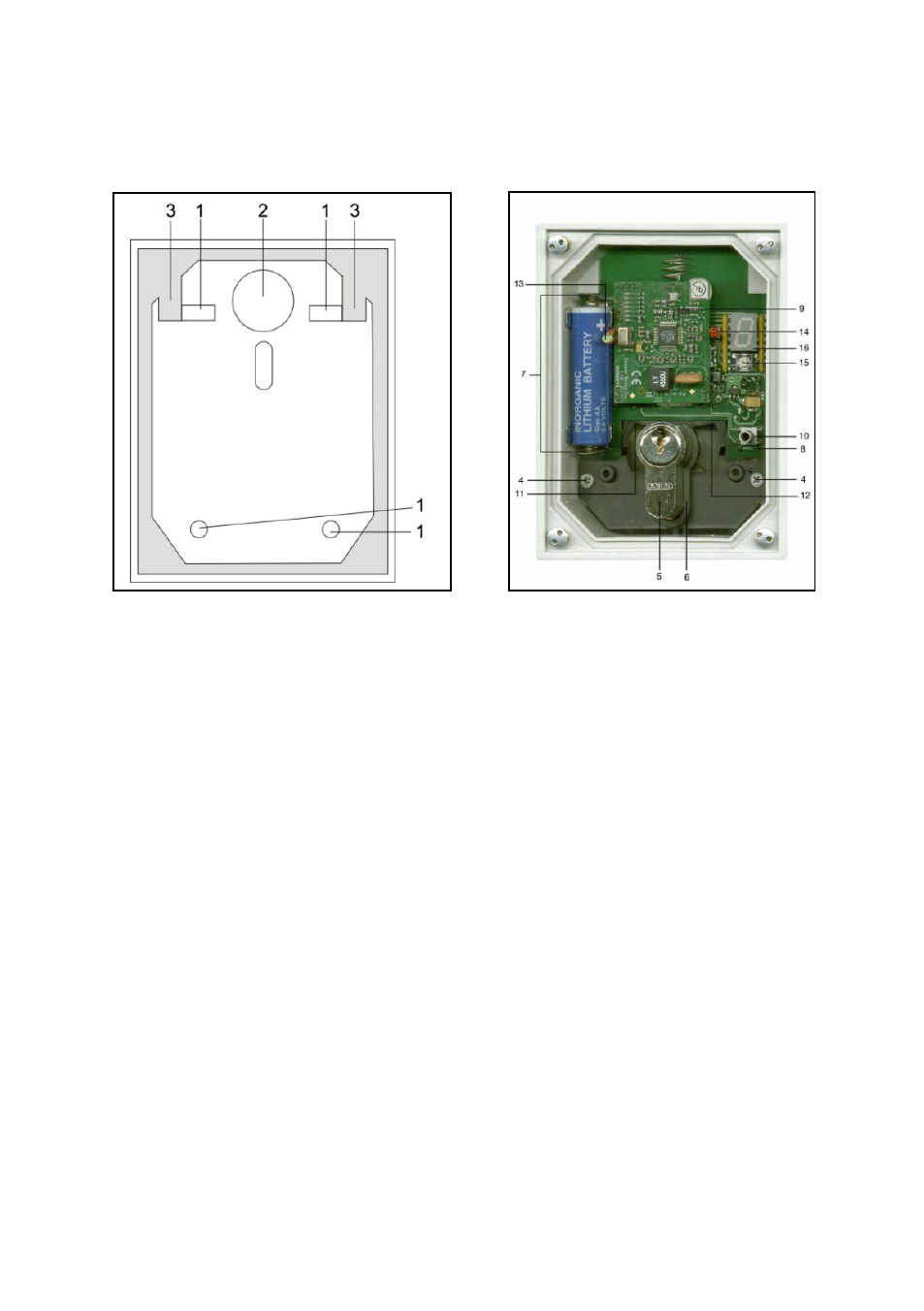

Fig. 1 Casing without PCB Fig. 2 Casing open (with PCB)
